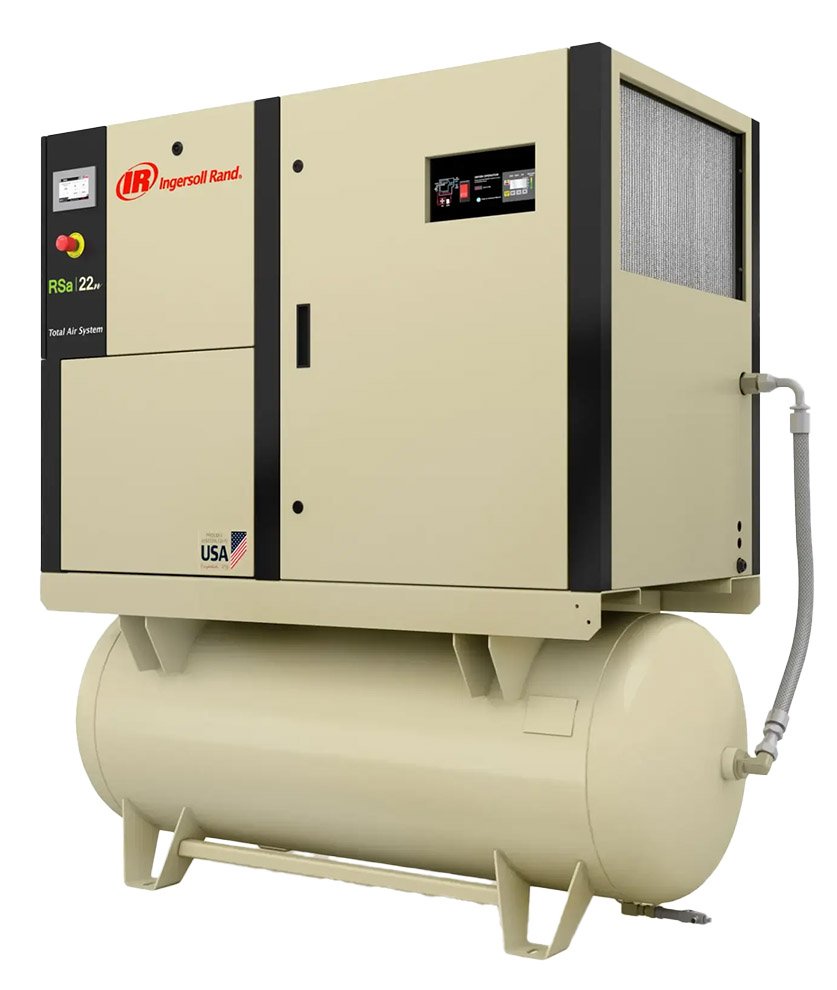

Ingersoll Rand RSa Series Fixed Speed Rotary Screw Air Compressor
5 to 30 HP fixed speed, oil flooded rotary screw air compressor, base mount or tank mount, optional dryer
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand RSa Series Fixed Speed Rotary Screw Air Compressor is engineered for efficiency and reliability with a rugged and dependable airend that is designed to deliver optimal airflow and performance. Equipped with an IE3 premium TEFC motor, the RSa Series significantly reduces energy demands.
The RSa Series features leak-free technology, utilizing PTFE hoses and O-ring seals to provide repeatable connections that prevent air loss and maximize performance. Complemented by reliable components such as two-stage air filters and elastomeric O-rings, this compressor is built to withstand rigorous use while maintaining high-performance levels.
The XS-Series controller enhances operational control functionality, providing the tools to manage the compressor’s performance. The optional Total Air System integrates a refrigerated air dryer to minimize installation costs and reduce the overall footprint.
Overview and Features
Features
- 5 to 30 HP
- IE3/NEMA Premium TEFC motor
- Star Delta Starter
- PTFE hoses and o-ring seals
- XS-Series controller
- Package Pre-filter standard
- Tank mount options:
- 80 gallon horizontal tank
- 120 gallon horizontal tank
- 240 gallon horizontal tank
- Optional Total Air System (TAS)
- Integrated refrigerated air dryer and
- 3-in-1 heat exchanger
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP |
|---|---|
| Dryer (TAS) | None, Add Refrigerated Air Dryer |
| Capacity | 67 CFM at 110 PSI, 62 CFM at 125 PSI, 55 CFM at 145 PSI, 87 CFM at 110 PSI, 81 CFM at 125 PSI, 75 CFM at 145 PSI, 59 CFM at 200 PSI, 108 CFM at 110 PSI, 103 CFM at 125 PSI, 97 CFM at 145 PSI, 75 CFM at 200 PSI, 126 CFM at 110 PSI, 120 CFM at 125 PSI, 111 CFM at 145 PSI, 92 CFM at 200 PSI, 67 CFM at 103 PSI, 62 CFM at 118 PSI, 55 CFM at 138 PSI, 87 CFM at 103 PSI, 81 CFM at 118 PSI, 75 CFM at 138 PSI, 59 CFM at 193 PSI, 108 CFM at 103 PSI, 103 CFM at 118 PSI, 97 CFM at 138 PSI, 75 CFM at 193 PSI, 126 CFM at 103 PSI, 120 CFM at 118 PSI, 111 CFM at 138 PSI, 92 CFM at 193 PSI, 23.5 CFM at 110 PSI, 21.4 CFM at 125 PSI, 19.7 CFM at 145 PSI, 15 CFM at 200 PSI, 30.5 CFM at 110 PSI, 27.9 CFM at 125 PSI, 26 CFM at 145 PSI, 21 CFM at 200 PSI, 43.3 CFM at 110 PSI, 38.5 CFM at 125 PSI, 35.8 CFM at 145 PSI, 27.4 CFM at 200 PSI, 23.5 CFM at 100 PSI, 21.4 CFM at 115 PSI, 19.7 CFM at 135 PSI, 15 CFM at 190 PSI, 30.5 CFM at 100 PSI, 27.9 CFM at 115 PSI, 26 CFM at 135 PSI, 21 CFM at 190 PSI, 43.3 CFM at 100 PSI, 38.5 CFM at 115 PSI, 35.8 CFM at 135 PSI, 27.4 CFM at 190 PSI, 60 CFM at 110 PSI, 56.8 CFM at 125 PSI, 50.7 CFM at 145 PSI, 42.2 CFM at 200 PSI, 60 CFM at 100 PSI, 56.8 CFM at 115 PSI, 50.7 CFM at 135 PSI, 42.2 CFM at 190 PSI |
| Configuration | Base Mount, Tank Mount, 120 gallon, 200 PSI, Tank Mount, 120 gallon, 225 PSI, Tank Mount, 240 gallon, 200 PSI, Tank Mount, 240 gallon, 225 PSI, Tank Mount, 80 gallon, Tank Mount, 120 gallon |
| Voltage | 208-230/460/3/60, 200/3/60, 230/3/60, 460/3/60, 575/3/60, 208/230/1/60 |
| Drain | No Drain/Manual Drain (Standard) |
| Coolant Fill | Ultra Coolant (Standard), Ultra FG Coolant (Food Grade), Ultra EL Coolant (Extended 16000-hour life) |
| Additional Options | Power Outage Restart, Helix Remote Monitoring, Low Ambient, Phase Monitor, Modulation, Moisture Separator, Shop Test Certificate, As Built Fluid Flows, Certificate of Compliance, Certificate of Origin, ISO Certification, Certified Drawings, As Built General Arrangements, As Built Electrical Schematics |
