Ingersoll Rand

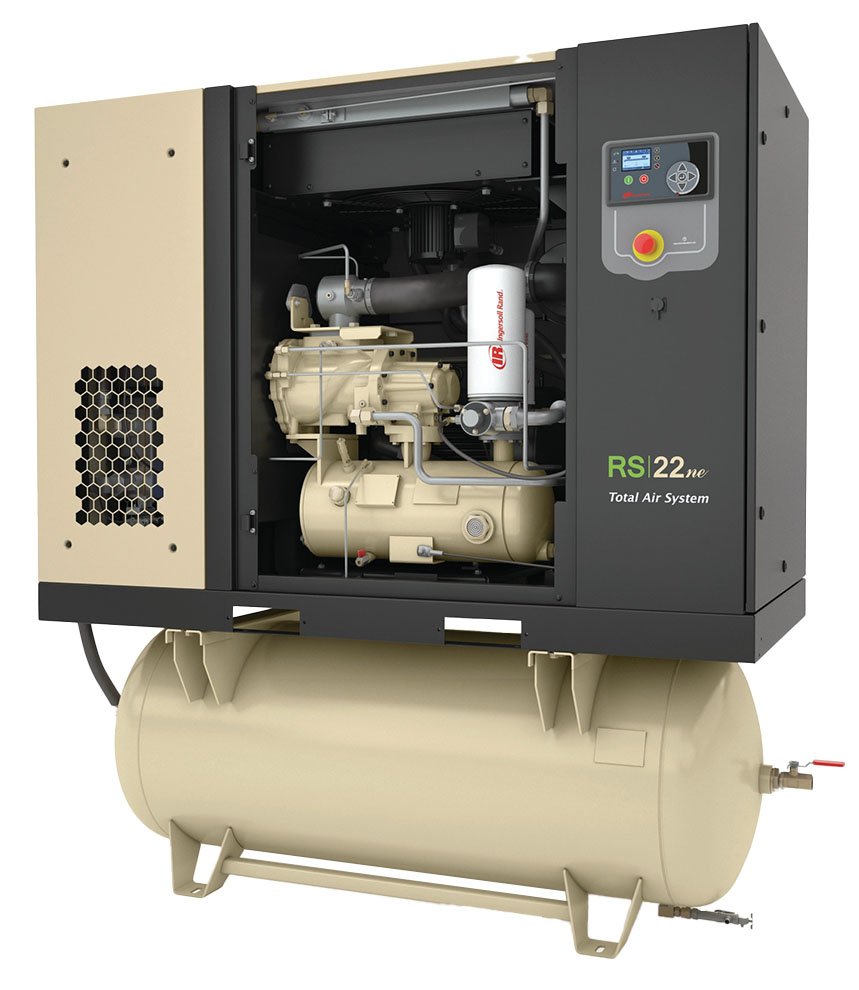

Ingersoll Rand RSne Series Variable Speed Rotary Screw Air Compressor
20 to 30 HP, 83 to 142 CFM, 100 to 145 PSI, Base or Tank Mount, optional Dryer
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand RSne Series Variable Speed Rotary Screw Air Compressor is available in 20 to 30 HP models and can be base mounted or mounted on a 120 or 240 gallon air receiver tank. The optional Total Air System (TAS) adds an integrated refrigerated air dryer and a 3-in-1 heat exchanger for applications where dry air is required. The RSne Series includes a premium efficiency TEFC motor and enhanced features for improved performance and efficiency.
Overview and Features
Features
- 20 to 30 HP
- 83 to 142 CFM
- 100 to 145 PSI
- Configurations:
- Base mount
- 120 or 240 gallon tank mount
- Optional Total Air System (TAS):
- Integrated refrigerated air dryer
- 3-in-1 heat exchanger
- Premium efficiency TEFC motor with variable speed control
- Enhanced features for improved performance and efficiency
- XE series controller
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 20 HP, 25 HP, 30 HP |
|---|---|
| Dryer | None, Integrated air dryer (TAS) |
| Capacity | 102 to 83 CFM at 100 to 145 PSI, 123 to 101 CFM at 100 to 145 PSI, 142 to 121 CFM at 100 to 145 PSI, 102 to 87 CFM at 100 to 135 PSI, 123 to 106 CFM at 100 to 135 PSI, 142 to 125 CFM at 100 to 135 PSI |
| Configuration | Base Mount, 120 Gallon Horizontal Tank Mount, 240 Gallon Horizontal Tank Mount |
| Voltage | 200/3/60, 230/3/60, 460/3/60, 575/3/60 |
| Controller | Xe-70M Controller, Xe-70M ECO Module |
| Coolant Fill | Ultra Coolant (Standard), Ultra FG Coolant (Food Grade), Ultra EL Coolant (Extended 16000-hour life) |
| Additional Options | Power Outage Restart (PORO), Moisture Separator with Float Drain (shipped loose), Electronic No Loss Drain |
