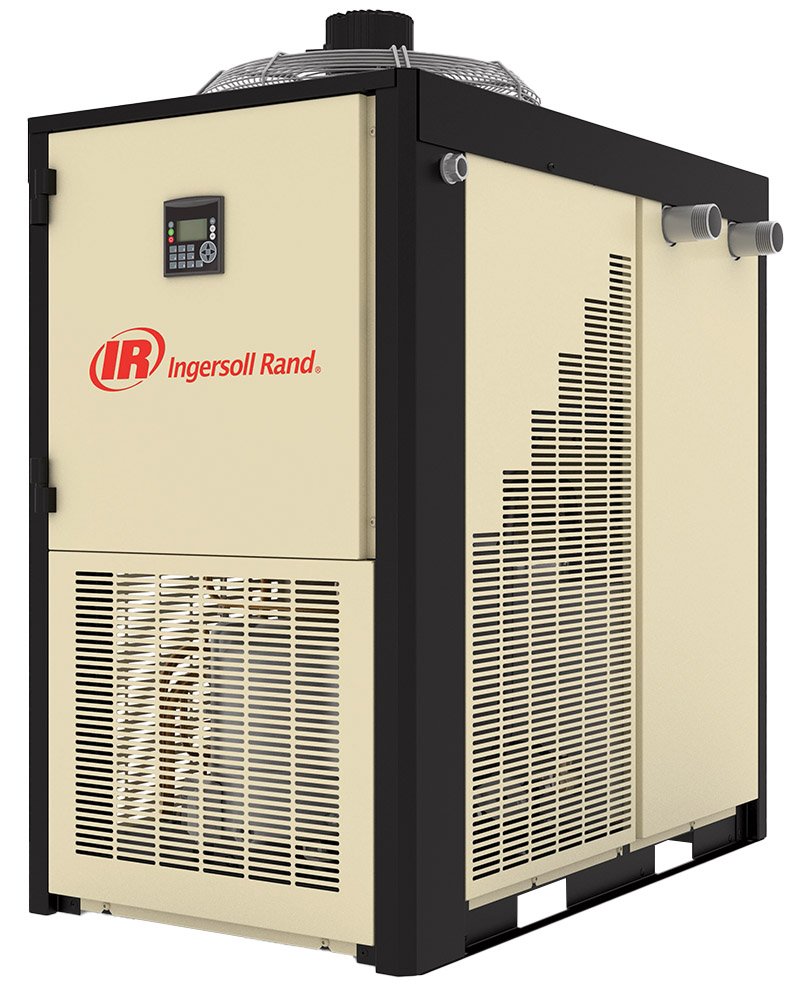

Ingersoll Rand D-NVC Series High-Efficiency Cycling Refrigerated Air Dryer
300 to 800 SCFM, Air or Water Cooled, R-513a refrigerant, 39°F pressure dew point
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand D-NVC Series High-Efficiency Cycling Refrigerated Air Dryer incorporates an advanced low‑GWP refrigerant (R-513a) to help reduce environmental impact. Featuring integrated pre- and post-filtration, rugged construction, and intelligent microprocessor controls, the D-NVC Series is designed to deliver exceptional efficiency, reliability, and environmental stewardship.
Overview and Features
Features
- 300 to 800 SCFM
- 39°F pressure dew point
- Microprocessor control with digital display
- 460/3/60 voltage
- R-513a refrigerant
- Integrated Pre and Post Filtration
- Certified to UL60335-1, UL 60335-2-40, CSA 22.2 No. 60335-1, and CSA 22.2 No. 60335-2-40
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 300 SCFM, 400 SCFM, 500 SCFM, 600 SCFM, 700 SCFM, 800 SCFM |
|---|---|
| Cooling | Air Cooled, Water Cooled |
| Voltage | 460/3/60 |
| Connection Size / Type | 2" MNPT, 3" MNPT |
| Package | Electric Drain Valve, Integral G Prefilter and H Postfilter, Microprocessor Controller, Ethernet Communication, Electric No Loss Drain, Integral G Prefilter and H Postfilter, Microprocessor Controller, Ethernet Communication |
