Kaishan PK Series Rotary Screw Air Compressor
5 or 7.5 HP fixed speed compressor, 150 PSI rated, optional tank mount and air dryer add-on available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

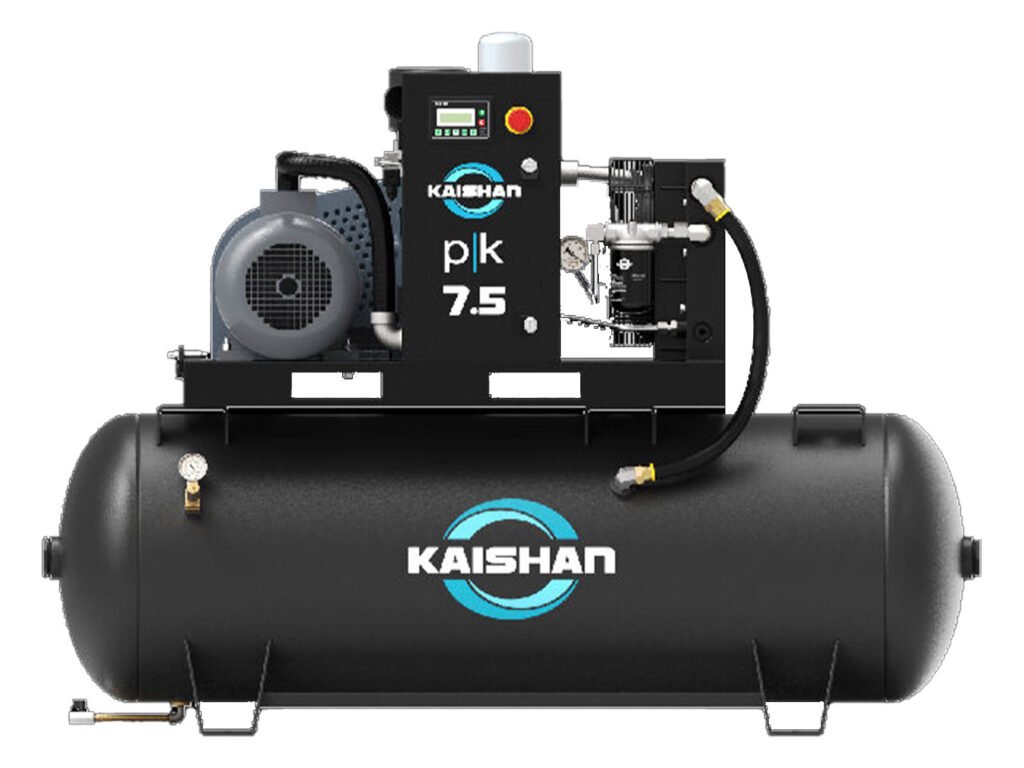

The Kaishan PK Series Rotary Screw Air Compressor is a V-belt driven, single-stage, positive displacement, fluid-flooded air compressor that is available in 5 or 7.5 HP models. All models include a heavy-duty TEFC motor, encapsulated SKY-40 airend, air-cooled aftercooler, MAM-890 digital controller, and stainless steel tubes/fittings. Available in either a base-mounted version or an 80-gallon air receiver tank-mounted model. Tank-mounted models have the additional option of an air dryer, creating a compact, all-in-one compressor package.
A 1-year full warranty comes as part of the standard package. A 2-year extended airend warranty is available when the compressor is purchased with an annual maintenance kit.
Overview and Features
Features
- 5 or 7.5 HP models
- Capacities (3-phase motors):
- 5 HP: 18 CFM at 150 PSI
- 7.5 HP: 24 CFM at 150 PSI
- Capacities (1-phase motors):
- 5 HP: 16 CFM at 150 PSI
- 7.5 HP: 22 CFM at 150 PSI
- Fixed speed
- Air cooled
- SKY-40 airend
- Configurations:
- Base mount
- 80 gallon air receiver tank mount
- Optional air dryer available on tank-mounted models
- MAM-890 digital controller
- Stainless Steel tubes and fittings
- Air cooled aftercooler
- 100% duty cycle
- 1-year warranty standard
- 2-year warranty upgrade with annual maintenance kit add-on
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP |
|---|---|
| Voltage | 208/3/60, 230/3/60, 460/3/60, 230/1/60 |
| Capacity | 18 CFM, 16 CFM, 24 CFM, 22 CFM |
| Configuration | Base Mount, Tank Mounted - 80 gallon, horizontal |
| Dryer | No Dryer, Refrigerated Dryer Included |
| Package | Standard Package (1-year warranty), Add Annual Maintenance Kit (2-year warranty) |
