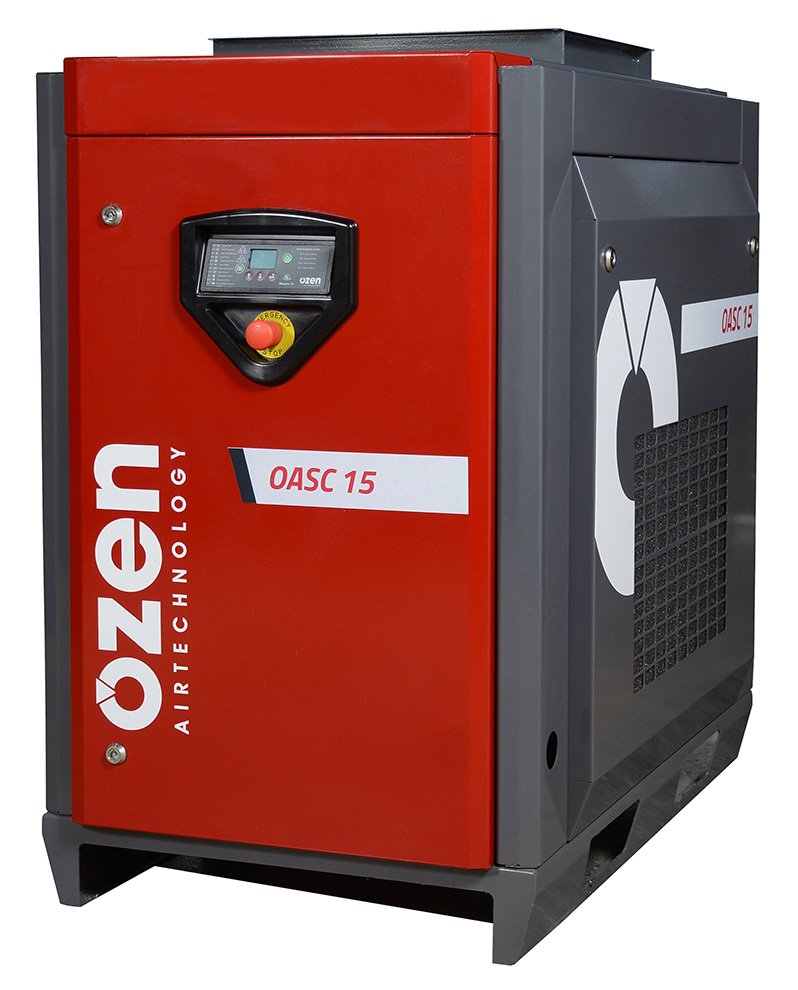

OZEN OASC Belt Drive Rotary Screw Air Compressor
Fixed speed, 5 to 60 HP, 10.24 to 280.8 CFM capacities, 100 to 218 PSI, optional tank mount and dryer available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The OZEN OASC Belt Drive Rotary Screw Air Compressor is a fixed speed 5 to 60 HP compressor with a NEMA TEFC premium efficiency motor and Poly-V belt drive, providing high performance and durability. The high-quality airend produces minimal vibration and sound while delivering air pressures up to 218 PSI. The included Maestro controller offers a user-friendly interface for monitoring the equipment and planning maintenance. The radial cooling design features a large-sized radiator pack and enables the OASC Series to keep working with high efficiency in various environments.
Overview and Features
Features
- 5 to 60 HP NEMA TEFC Premium Efficient Motor
- Poly-V belt drive
- 10.24 to 280.8 CFM capacities
- 100 to 218 PSI max pressure ratings
- Compact oil separator
- Maestro controller
- IP55 electrical panel
- Optional Tank Mounted version available (5 to 40 HP)
- Air dryer can be added to tank mounted models (5 to 30 HP)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP, 60 HP |
|---|---|
| Configuration | Base Mount, Tank Mount, 80 gallon - Horizontal, Tank Mount, 120 gallon - Horizontal, Tank Mount, 240 gallon - Horizontal, Tank Mount, 80 gallon with Dryer, Tank Mount, 120 gallon with Dryer, Tank Mount, 240 gallon with Dryer |
| Capacity | 26 CFM at 100 PSI, 22.4 CFM at 125 PSI, 19.4 CFM at 150 PSI, 15.5 CFM at 190 PSI, 13.4 CFM at 218 PSI, 34.6 CFM at 100 PSI, 30.6 CFM at 125 PSI, 26.9 CFM at 150 PSI, 21.2 CFM at 190 PSI, 18.6 CFM at 218 PSI, 42.1 CFM at 100 PSI, 36.6 CFM at 125 PSI, 32.7 CFM at 150 PSI, 27.6 CFM at 190 PSI, 25 CFM at 218 PSI, 65.1 CFM at 100 PSI, 60 CFM at 125 PSI, 55.6 CFM at 150 PSI, 47.6 CFM at 190 PSI, 43.3 CFM at 218 PSI, 84.6 CFM at 100 PSI, 78 CFM at 125 PSI, 72.3 CFM at 150 PSI, 61.8 CFM at 190 PSI, 56.9 CFM at 218 PSI, 101.2 CFM at 100 PSI, 95 CFM at 125 PSI, 88.3 CFM at 150 PSI, 73.6 CFM at 190 PSI, 67.4 CFM at 218 PSI, 123.6 CFM at 100 PSI, 116 CFM at 125 PSI, 107.8 CFM at 150 PSI, 89.3 CFM at 190 PSI, 82.5 CFM at 218 PSI, 165 CFM at 100 PSI, 154 CFM at 125 PSI, 143.1 CFM at 150 PSI, 119.4 CFM at 190 PSI, 110.8 CFM at 218 PSI, 237.5 CFM at 100 PSI, 215.5 CFM at 125 PSI, 196.4 CFM at 150 PSI, 170.6 CFM at 190 PSI, 157.3 CFM at 218 PSI, 280.8 CFM at 100 PSI, 256.5 CFM at 125 PSI, 235.5 CFM at 150 PSI, 206.5 CFM at 190 PSI, 191.5 CFM at 218 PSI, 21.54 CFM at 100 PSI, 20.4 CFM at 125 PSI, 15.54 CFM at 150 PSI, 12.01 CFM at 190 PSI, 10.24 CFM at 218 PSI, 33.9 CFM at 100 PSI, 30 CFM at 125 PSI, 26.5 CFM at 150 PSI, 21 CFM at 190 PSI, 18.4 CFM at 218 PSI, 40.5 CFM at 100 PSI, 35.6 CFM at 125 PSI, 32 CFM at 150 PSI, 27.2 CFM at 190 PSI, 24.5 CFM at 218 PSI, 62.9 CFM at 100 PSI, 58.4 CFM at 125 PSI, 54.6 CFM at 150 PSI, 42.6 CFM at 190 PSI, 37.08 CFM at 218 PSI, 81.6 CFM at 100 PSI, 75.9 CFM at 125 PSI, 70.9 CFM at 150 PSI, 60.9 CFM at 190 PSI, 56 CFM at 218 PSI, 99 CFM at 100 PSI, 92.9 CFM at 125 PSI, 86.3 CFM at 150 PSI, 72 CFM at 190 PSI, 66.7 CFM at 218 PSI, 121 CFM at 100 PSI, 113.6 CFM at 125 PSI, 105.5 CFM at 150 PSI, 88 CFM at 190 PSI, 80.8 CFM at 218 PSI, 18.36 CFM at 125 PSI, 30.5 CFM at 125 PSI, 41.8 CFM at 100 PSI, 36.5 CFM at 125 PSI, 32.6 CFM at 150 PSI, 24.9 CFM at 218 PSI, 64.1 CFM at 100 PSI, 59.4 CFM at 125 PSI, 55.3 CFM at 150 PSI, 47.4 CFM at 190 PSI, 43.1 CFM at 218 PSI, 83.3 CFM at 100 PSI, 77.1 CFM at 125 PSI, 72 CFM at 150 PSI, 56.7 CFM at 218 PSI, 100.6 CFM at 100 PSI, 94.4 CFM at 125 PSI, 87.7 CFM at 150 PSI, 73.2 CFM at 190 PSI, 67.3 CFM at 218 PSI, 123 CFM at 100 PSI, 115.3 CFM at 125 PSI, 107.1 CFM at 150 PSI, 82.4 CFM at 218 PSI, 164 CFM at 100 PSI, 153 CFM at 125 PSI, 142.2 CFM at 150 PSI, 118.6 CFM at 190 PSI, 110.6 CFM at 218 PSI |
| Voltage | 208-230/460/3/60, 460/3/60 |
