OZEN Air Technology

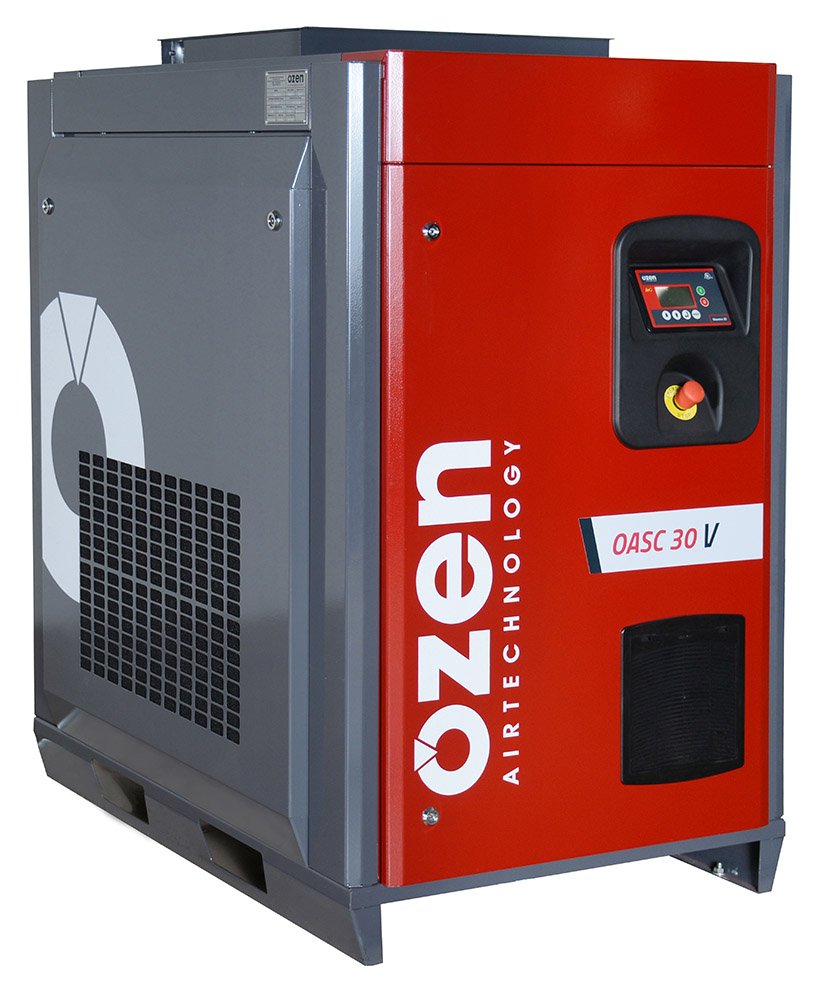

OZEN OASC V Belt Drive VFD Rotary Screw Air Compressor
Variable speed, 7.5 to 40 HP, 21.6 to 183.1 CFM capacities, 100 to 218 PSI, optional tank mount and dryer available
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The OZEN OASC V Belt Drive VFD Rotary Screw Air Compressor is a variable speed 7.5 to 40 HP compressor with a NEMA TEFC premium efficiency motor and Poly-V belt drive, providing high performance and durability. The built-in frequency inverter (VFD) adjusts the motor speed according to the actual air needs of the facility, achieving energy savings of up to 35%, and reducing overall operating costs. The high-quality airend produces minimal vibration and sound while delivering air pressures up to 218 PSI. The included Maestro controller offers a user-friendly interface for monitoring the equipment and planning maintenance. The radial cooling design features a large-sized radiator pack and enables the OASC Series to keep working with high efficiency in various environments.
Overview and Features
Features
- 7.5 to 40 HP NEMA TEFC Premium Efficient Motor
- Poly-V belt drive
- 21.6 to 183.1 CFM capacities
- 100 to 218 PSI max pressure ratings
- Compact oil separator
- Maestro controller
- IP55 electrical panel
- Optional Tank Mounted version available (7.5 to 40 HP)
- Air dryer can be added to tank mounted models (7.5 to 30 HP)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP |
|---|---|
| Capacity (100 to 218 PSI) | 21.6 to 37 CFM, 31.5 to 50.1 CFM, 46.8 to 73.9 CFM, 65.1 to 94.4 CFM, 81 to 122.6 CFM, 96.9 to 143.4 CFM, 131.3 to 183.1 CFM |
| Configuration | Base Mount, Tank Mount, 80 gallon - Horizontal, Tank Mount, 120 gallon - Horizontal, Tank Mount, 240 gallon - Horizontal, Tank Mount, 80 gallon with Dryer, Tank Mount, 120 gallon with Dryer, Tank Mount, 240 gallon with Dryer |
| Voltage | 208-230/460/3/60 |
