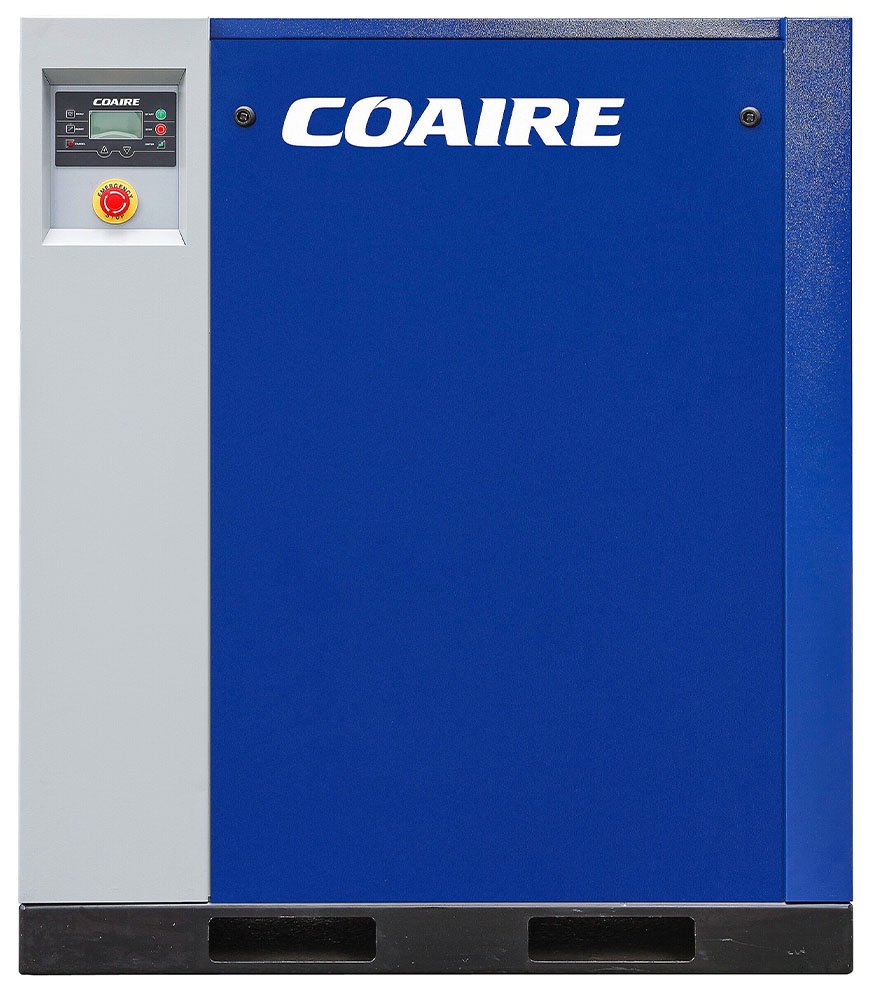

Coaire Mini Oil Injected Rotary Screw Air Compressor
5 to 20 HP fixed speed compressor, 20.8 to 93.9 CFM, Micom controller
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coaire Mini Oil Injected Rotary Screw Air Compressor is a compact design available in 5 to 20 HP models. Each model is available in 100 or 130 PSI max pressure rating and a choice of 230V or 460V. The Coaire Mini features quiet operation, allowing installation in factories or laboratories near residential zones.
Overview and Features
Features
- 5 to 20 HP models
- 20.8 to 93.9 CFM capacities
- 100 or 130 PSI pressure options
- All-in-one style airend with integrated suction valve
- Micom controller with remote control function
- Fin tube designed combination cooler
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP |
|---|---|
| Pressure | 100 PSI, 130 PSI |
| Capacity | 24.4 CFM, 20.8 CFM, 29.3 CFM, 22.6 CFM, 42 CFM, 35 CFM, 67.1 CFM, 56.5 CFM, 93.9 CFM, 80.8 CFM |
| Voltage | 230/3/60, 460/3/60 |
