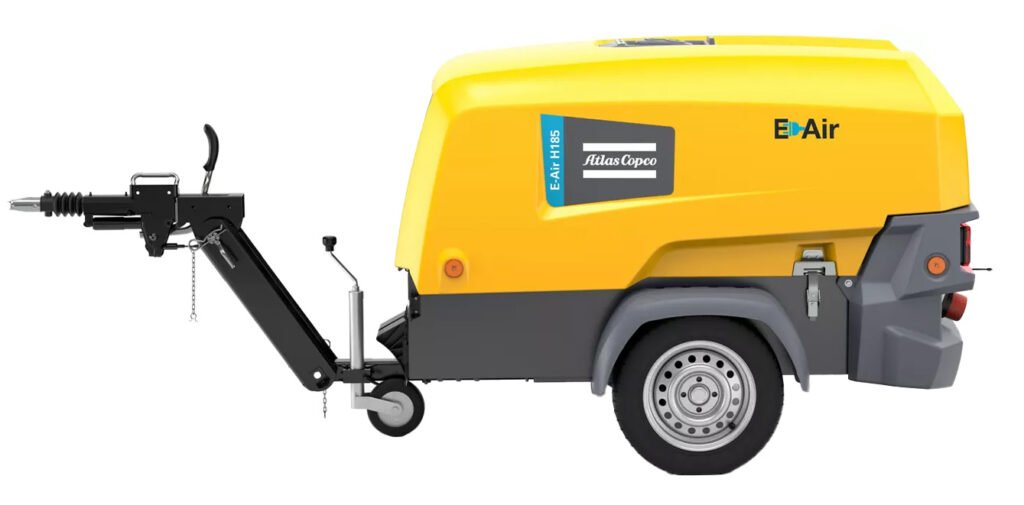

Atlas Copco E-Air Series H185 Variable Speed Rotary Screw Air Compressor
35 HP single-stage, 3-phase plug-in electric oil-injected air compressor with XC2003 controller, up to 174 PSI pressure setting
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Atlas Copco E-Air Series H185 Variable Speed Rotary Screw Air Compressor is a single-stage, oil-injected, rotary screw type air compressor, powered by an Atlas Copco electric motor with Class H insulation powering up to 7150 rpm.
The H185 features the C80 Screw element in its air end combined with an Atlas Copco integrated permanent magnet motor, cooling circuit, air/oil separation, and control systems. The E-Air Series now features PACE functionality coupled with the XC2003 controller. This technology enables multiple pressure and flow settings, ensuring you match air flow and pressure to your application needs.
Overview and Features
Features
- 35 HP motor
- 50 Amp Model:
- 130.3 to 191.5 CFM
- 87 to 174 PSI pressure setting
- 72.5 PSI minimum effective receiver pressure (unloaded)
- 174 PSI maximum effective receiver pressure (unloaded)
- 32 Amp Model:
- 77.1 to 126.9 CFM
- 87 to 174 PSI pressure setting
- 72.5 PSI minimum effective receiver pressure (unloaded)
- 174 PSI maximum effective receiver pressure (unloaded)
- 16 Amp Model:
- 22.9 to 52.1 CFM
- 87 to 150 PSI pressure setting
- 72.5 PSI minimum effective receiver pressure (unloaded)
- 152 PSI maximum effective receiver pressure (unloaded)
- C80 Screw element
- XC2003 controller
- PACE functionality
- 9.25 gallon air receiver tank
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | 50 Amp, 32 Amp, 16 Amp |
|---|---|
| Capacity at Max Pressure Setting | 130.3 CFM at 174 PSI, 77.1 CFM at 174 PSI, 22.9 CFM at 150 PSI |
