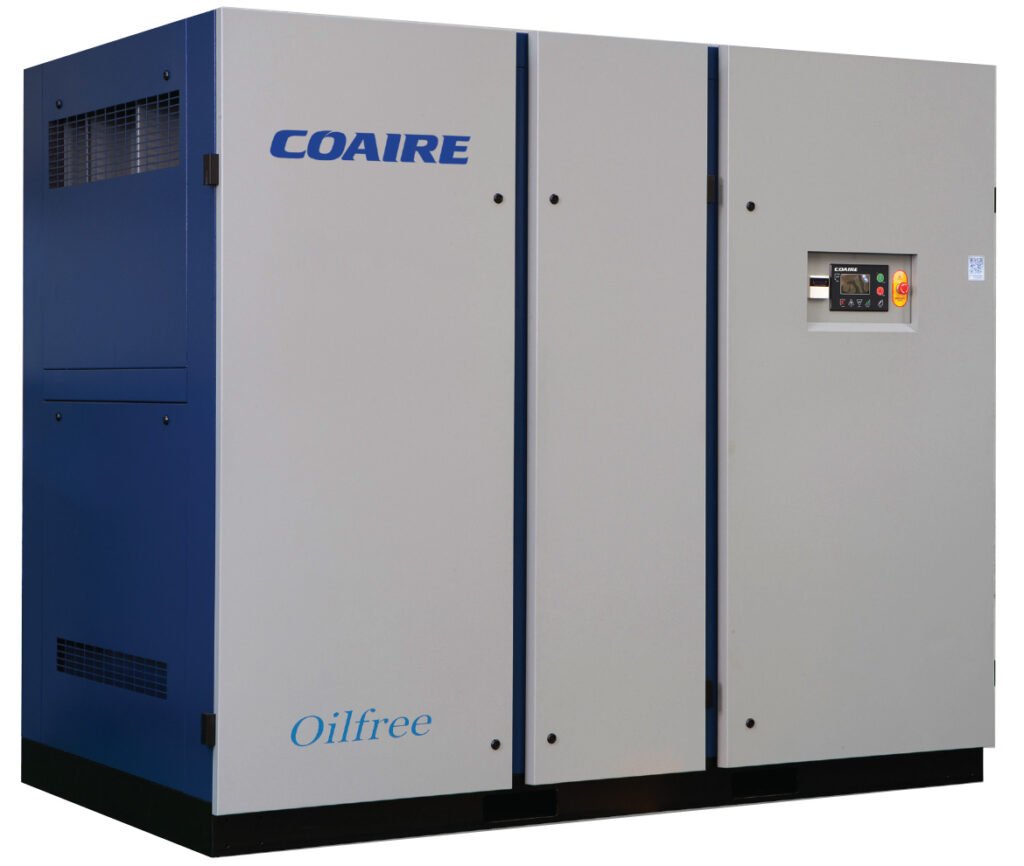

Coaire CAF-VSD Series Oil Free Rotary Screw Air Compressor
75 to 400 HP compressor with multiple high-efficiency coolers and high-precision bull gear and timing gear
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Coaire CAF-Series Oil Free Rotary Screw Air Compressor uses GHH RAND airends for long operating life and reliability. The 2-stage anti-rusting stainless steel rotors have an ultra coating to increase lifespan and durability. The CAF-Series is available in 75 to 400 HP configurations with max operating pressures from 100 to 135 PSI.
Overview and Features
Features
- 75 to 400 HP models
- 274 to 1781 CFM capacities
- 100, 125, and 135 PSI pressure options
- 460/3/60 voltage
- 2-stage anti-rusting stainless steel rotors with ultra coating
- Contactless sealing system
- High-precision bull gear and timing gear
- Molybdenum disulfide (MoS2) coated rotors
- Integrated oil pump
- Multiple high-efficiency coolers
- Micom controller
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 75 HP, 100 HP, 125 HP, 150 HP, 175 HP, 220 HP, 250 HP, 300 HP, 350 HP, 400 HP |
|---|---|
| Capacity | 302 CFM, 300 CFM, 274 CFM, 441 CFM, 406 CFM, 403 CFM, 530 CFM, 528 CFM, 455 CFM, 696 CFM, 593 CFM, 592 CFM, 782 CFM, 694 CFM, 693 CFM, 923 CFM, 834 CFM, 833 CFM, 1187 CFM, 1070 CFM, 971 CFM, 1409 CFM, 1270 CFM, 1183 CFM, 1592 CFM, 1507 CFM, 1406 CFM, 1781 CFM, 1601 CFM, 1588 CFM |
| Pressure | 100 PSI, 120 PSI, 135 PSI |
| Voltage | 460/3/60 |
