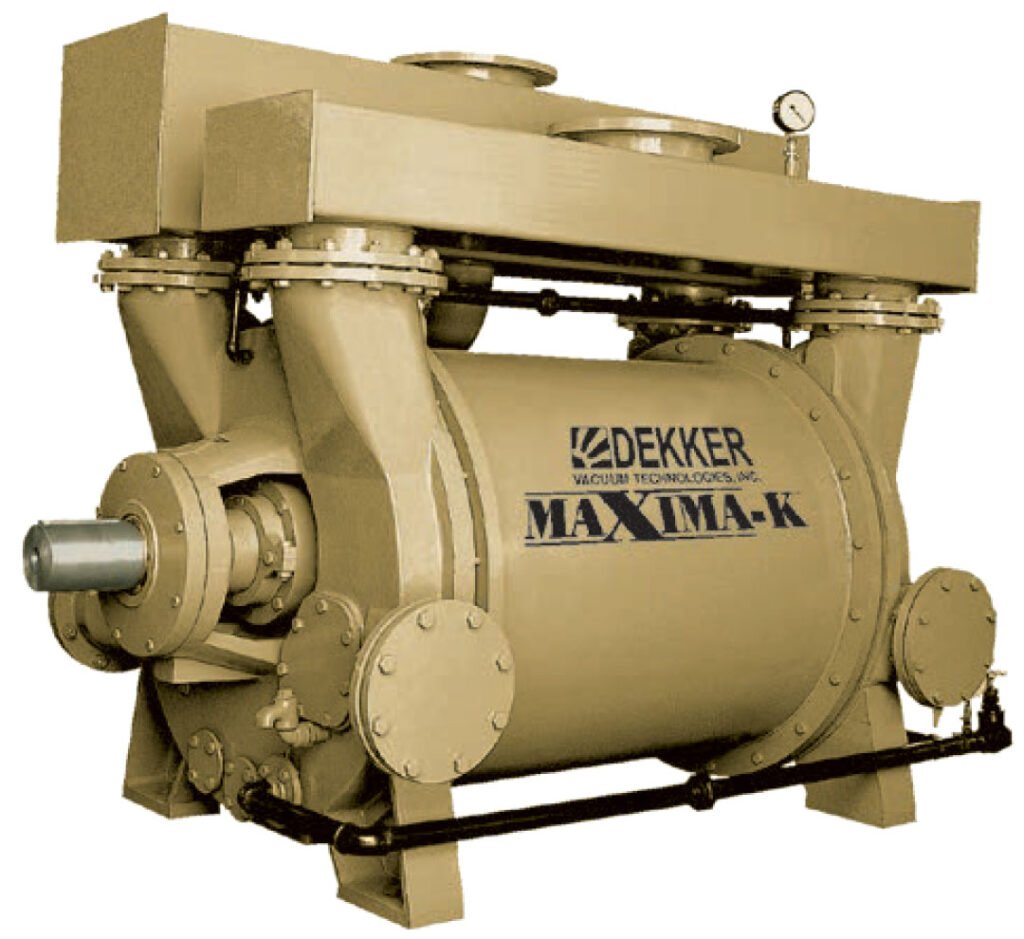

Dekker Maxima 2K Series Single-Stage Liquid Ring Vacuum Pump
Large capacity single-stage vacuum pump with vacuum capabilities up to 24” HgV
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker Maxima 2K Series Single-Stage Liquid Ring Vacuum Pump is designed to deliver efficient performance throughout the vacuum range. Its single-stage design features flat port plates mounted on each side of the impeller, allowing for variable discharge port operation. The heavy-duty impeller is reinforced with rings to enhance blade strength and pump durability. The pump comes with packed gland sealing, featuring a split ring gland that makes maintenance easy. Access plates on both sides of the pump allow for quick evaluation of clearance and easy boroscope inspection. Available in capacities ranging from 1890 to 15000 ACFM.
Overview and Features
Features
- 100 to 800 HP ranges available
- 1890 to 15000 ACFM
- Variable discharge port
- Shaft sleeves standard
- Packed gland sealing standard
- Heavy-duty bearings mounted external to the pumping chamber
- Low operating speeds
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 100 to 150 HP, 125 to 250 HP, 150 to 300 HP, 200 to 350 HP, 300 to 600 HP, 350 to 800 HP |
|---|---|
| Capacity | 1890 to 2700 ACFM, 2400 to 4000 ACFM, 3500 to 5000 ACFM, 4500 to 7000 ACFM, 6500 to 11000 ACFM, 9500 to 15000 ACFM |
| GPM | 10 to 35 GPM, 14 to 49 GPM, 20 to 65 GPM, 25 to 90 GPM, 35 to 175 GPM, 50 to 200 GPM |
| Connection Size / Type | 8" 150# flange, 10" 150# flange, 12" 150# flange, 14" 150# flange, 16" 150# flange, 20" 150# flange |
