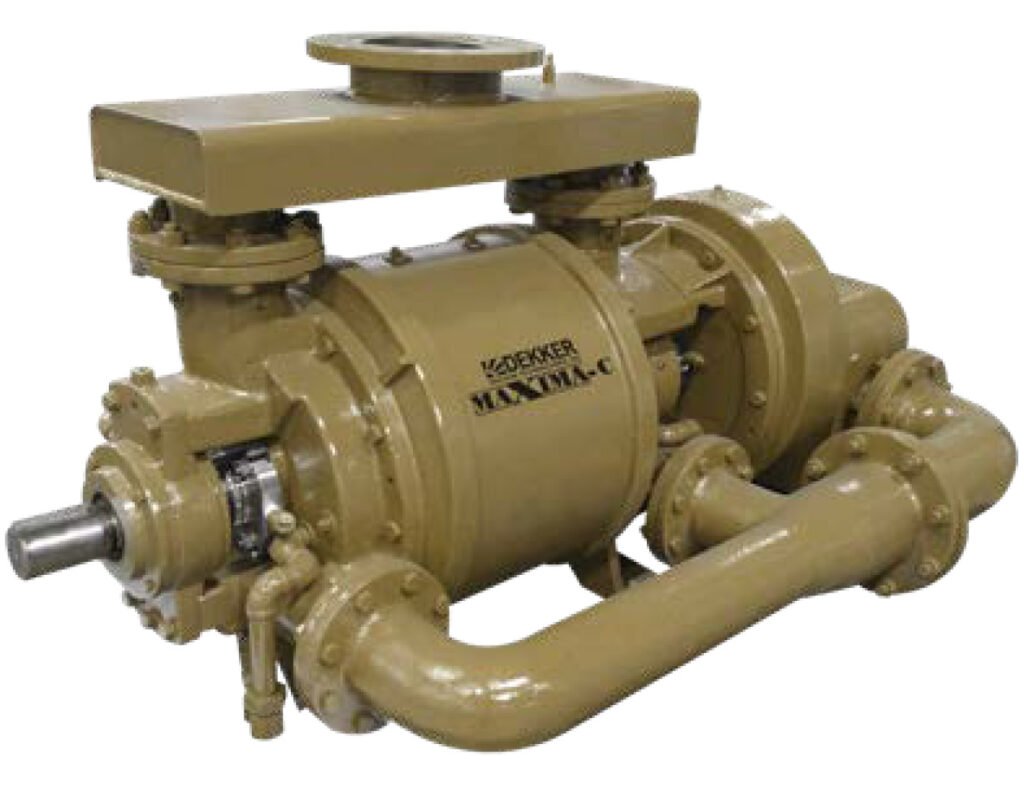

Dekker Maxima-C CT Series Two-Stage Liquid Ring Vacuum Pump
600 to 2800 ACFM capacity two-stage vacuum pump with vacuum capabilities up to 29” HgV
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker Maxima-C CT Series Two-Stage Liquid Ring Vacuum Pump is designed to handle larger amounts of seal liquid or liquid carryover, thanks to its robust conical design instead of a flat plate design. Its heavy-duty construction features a 20-blade shrouded rotor and multiple inlet/discharge configurations, ensuring maximum efficiency, low noise, and exceptional reliability with minimal maintenance required.
Overview and Features
Features
- 32 to 230 HP ranges available
- 600 to 2800 ACFM
- Conical design
- 20-blade shrouded rotor
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 32 to 45 HP, 53 to 75 HP, 90 to 150 HP, 150 to 230 HP |
|---|---|
| Capacity | 600 to 700 ACFM, 850 to 1150 ACFM, 1450 to 2150 ACFM, 2200 to 2800 ACFM |
| GPM | 16 to 20 GPM, 20 to 30 GPM, 20 to 57 GPM, 26.5 to 70.5 GPM |
| Connection Size / Type | 6" in, 4" out 150# flange, 8" in, 5" out 150# flange, 8" in, 6" out 150# flange, 10" in, 8" out 150# flange |
