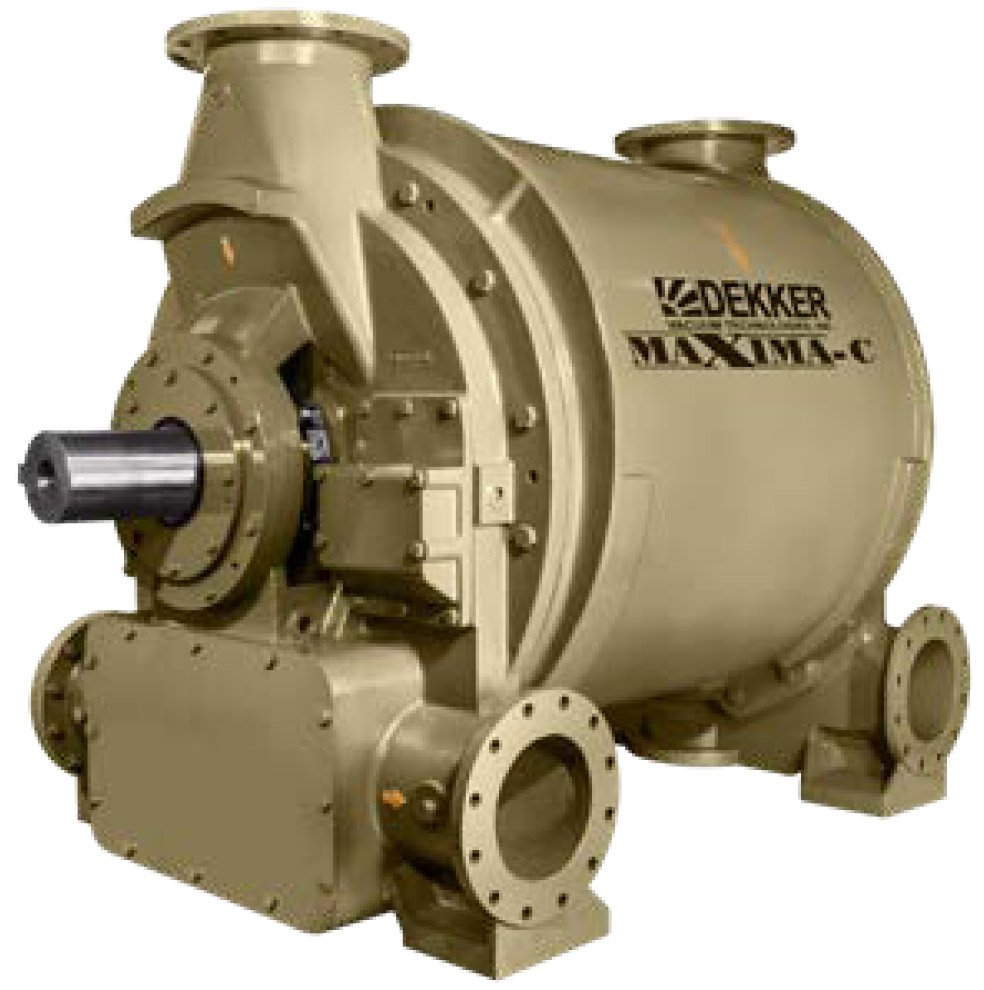

Dekker Maxima-C CL Series Single-Stage Liquid Ring Vacuum Pump
200 to 10000 ACFM capacity single-stage vacuum pump with vacuum capabilities up to 28” HgV
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker Maxima-C CL Series Single-Stage Liquid Ring Vacuum Pump is designed to handle larger amounts of seal liquid or liquid carryover, thanks to its robust conical design instead of a flat plate design. Its heavy-duty construction features a 20-blade shrouded rotor and multiple inlet/discharge configurations, ensuring maximum efficiency, low noise, and exceptional reliability with minimal maintenance required.
Overview and Features
Features
- 10 to 560 HP ranges available
- 200 to 10000 ACFM
- Conical design
- 20-blade shrouded rotor
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 10 to 21 HP, 13 to 30 HP, 20 to 45 HP, 35 to 65 HP, 50 to 95 HP, 70 to 130 HP, 105 to 190 HP, 120 to 240 HP, 110 to 360 HP, 300 to 560 HP |
|---|---|
| Capacity | 200 to 340 ACFM, 330 to 480 ACFM, 550 to 820 ACFM, 850 to 1160 ACFM, 1000 to 1550 ACFM, 1150 to 2200 ACFM, 1400 to 3200 ACFM, 2600 to 4800 ACFM, 4500 to 7800 ACFM, 7000 to 10000 ACFM |
| GPM | 6 GPM, 5 to 10 GPM, 10 to 20 GPM, 10 to 30 GPM, 30 to 40 GPM, 35 to 42 GPM, 50 to 65 GPM |
| Connection Size / Type | 4" in, 3" out 150# flange, 5" in, 3" out 150# flange, 6" in, 4" out 150# flange, 8" in, 6" out 150# flange, 10" in, 8" out 150# flange, 12" in, 10" out 150# flange, 16" in, 12" out 150# flange, 18" in, 14" out 150# flange |
