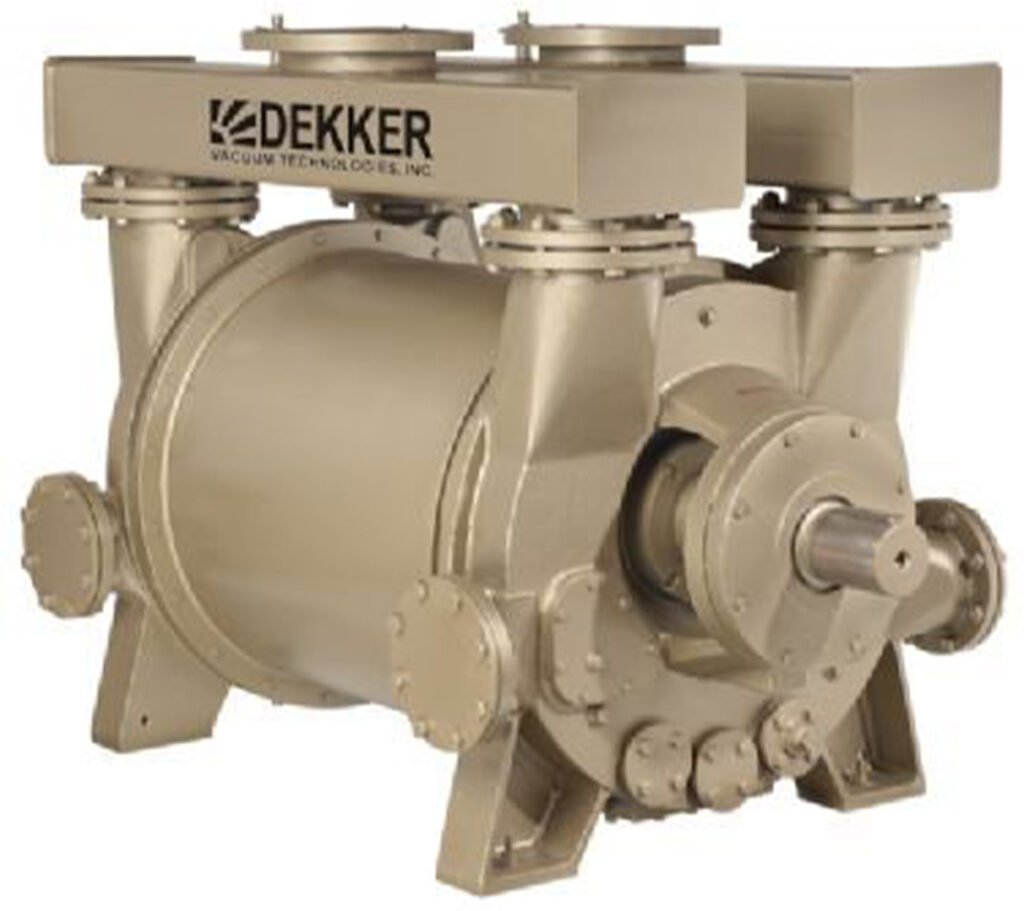

Dekker Maxima 1K Series Single-Stage Liquid Ring Vacuum Pump
Large capacity single-stage vacuum pump with vacuum capabilities up to 29” HgV
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker Maxima 1K Series Single-Stage Liquid Ring Vacuum Pump is designed to deliver efficient performance throughout the vacuum range. Its single-stage design features flat port plates mounted on each side of the impeller, allowing for variable discharge port operation. The heavy-duty impeller is reinforced with rings to enhance blade strength and pump durability. The pump comes with packed gland sealing, featuring a split ring gland that makes maintenance easy. Access plates on both sides of the pump allow for quick evaluation of clearance and easy boroscope inspection. Available in capacities ranging from 1500 to 39000 ACFM.
Overview and Features
Features
- 60 to 1900 HP ranges available
- 1500 to 39000 ACFM
- Variable discharge port
- Shaft sleeves standard
- Packed gland sealing standard
- Heavy-duty bearings mounted external to the pumping chamber
- Low operating speeds
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 60 to 100 HP, 100 to 150 HP, 125 to 200 HP, 130 to 250 HP, 150 to 300 HP, 175 to 400 HP, 200 to 350 HP, 250 to 350 HP, 225 to 500 HP, 300 to 450 HP, 350 to 600 HP, 300 to 650 HP, 355 to 620 HP, 500 to 850 HP, 450 to 1100 HP, 600 to 1550 HP, 900 to 1900 HP |
|---|---|
| Capacity | 1500 to 2050 ACFM, 2000 to 2600 ACFM, 2750 to 3500 ACFM, 3000 to 4500 ACFM, 3500 to 5000 ACFM, 4300 to 6300 ACFM, 4400 to 7900 ACFM, 5500 to 8000 ACFM, 6700 to 8900 ACFM, 7000 to 9800 ACFM, 8000 to 10000 ACFM, 9700 to 14500 ACFM, 7900 to 13500 ACFM, 10250 to 14450 ACFM, 13000 to 18000 ACFM, 14000 to 22000 ACFM, 18000 to 32000 ACFM, 22000 to 39000 ACFM |
| GPM | 10 to 30 GPM, 13 to 45 GPM, 18 to 48 GPM, 18 to 60 GPM, 23 to 60 GPM, 32 to 80 GPM, 26 to 95 GPM, 30 to 95 GPM, 35 to 105 GPM, 38 to 100 GPM, 45 to 120 GPM, 50 to 165 GPM, 53 to 170 GPM, 37 to 130 GPM, 70 to 190 GPM, 80 to 225 GPM, 240 to 940 GPM, 550 to 1410 GPM |
| Connection Size / Type | 8" 150# flange, 10" 150# flange, 12" 150# flange, 14" 150# flange, 16" 150# flange, 18" 150# flange, 20" 150# flange, 24" 150# flange |
