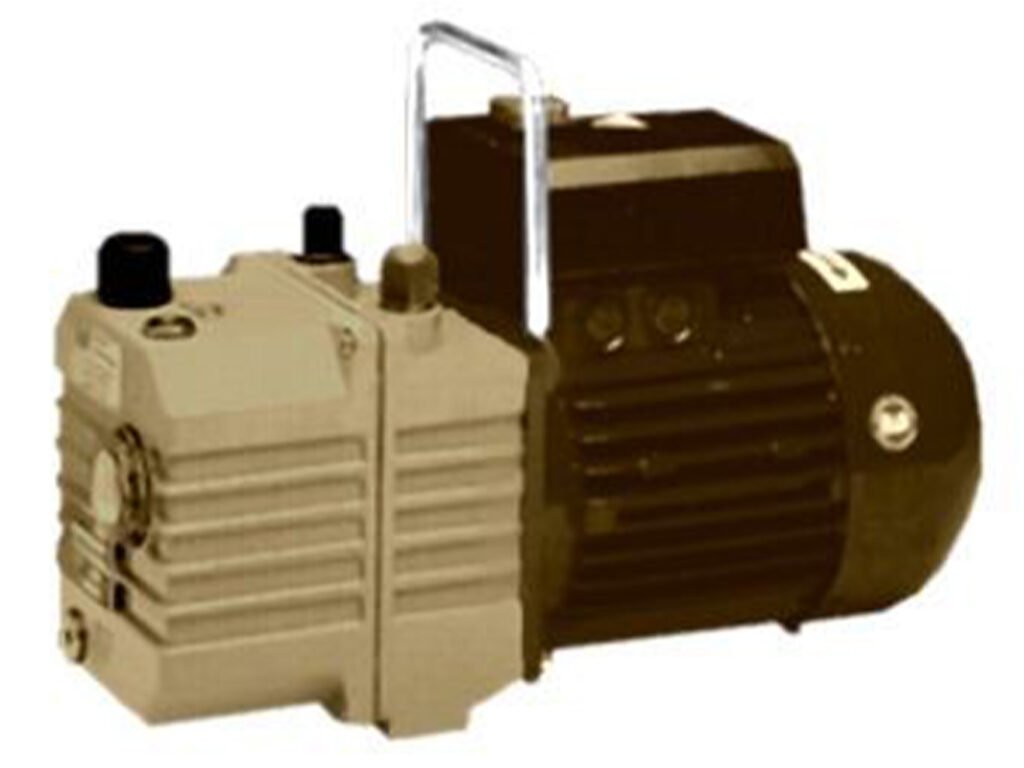

Dekker DuraVane High Vacuum Rotary Vane Vacuum Pump
Single stage vacuum pump designed for high vacuum applications in refrigeration, air conditioning, or laboratories
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker DuraVane High Vacuum Rotary Vane Vacuum Pump is capable of pressures down to .075 Torr (0.5 HP models) or .0038 Torr (1.25 HP models) with partial final pressure down to .0038 Torr-McLeod. The pumps feature a compact design with very quiet operation. Typical applications include refrigeration, air conditioning, laboratories, and other high-vacuum requirements.
Overview and Features
Features
- 1/2 or 1-1/4 HP models available
- 3 to 12 ACFM
- 7.5 x 10⁻², 7.5 x 10⁻³, or 3.8 x 10⁻³ Torr
- Heavy duty construction
- Compact design, small footprint
- Multi-frequency motor
- Gas ballast valve is standard
- Air cooled design
- Direct drive
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 1/2 HP, 1-1/4 HP |
|---|---|
| Capacity | 3 ACFM (HIDDEN - DO NOT UPDATE), 6 ACFM, 12 ACFM |
| Vacuum | 7.5 x 10⁻² Torr (HIDDEN - DO NOT UPDATE), 7.5 x 10⁻³ Torr (HIDDEN - DO NOT UPDATE), 7.5 x 10⁻² Torr, 7.5 x 10⁻³ Torr, 3.8 x 10⁻³ Torr |
| Voltage | 115/230/1/60, 110/1/60, 220/240/1/60 |
| Connection Size / Type | G1/4" in, G1/2" out, NW(KF)-25 in, 1/2" FNPT out |
