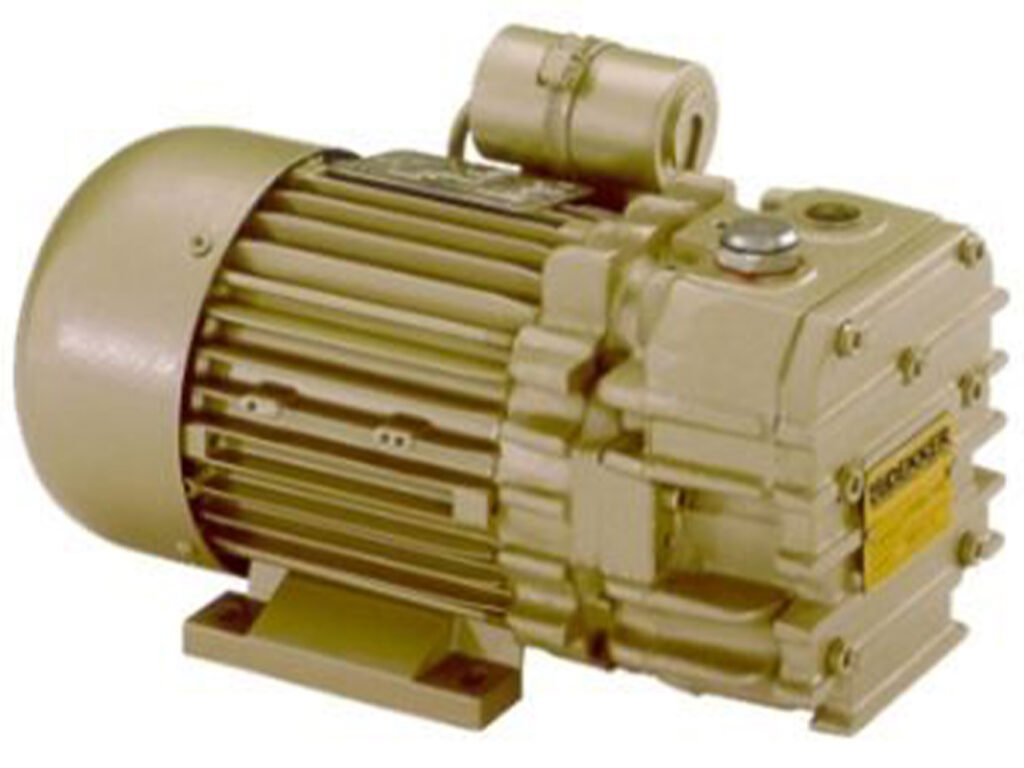

Dekker DuraVane Oil-Free Rotary Vane Vacuum Pump
Air-cooled, heavy-duty, non-lubricated pump for vacuum applications in a variety of industries
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker DuraVane Oil-Free Rotary Vane Vacuum Pump is a heavy-duty motor-mounted unit that is compact, reliable, and ideal for industrial applications such as printing, woodworking, paper converting, and vacuum chucking and lifting. It features a powerful centrifugal fan for efficient air-cooling.
Overview and Features
Features
- 0.4 to 5.4 HP models available
- 5.3 to 68 ACFM
- 90 or 112.5 torr
- Self-lubricating, long-life graphite composite vane material
- Built-in inlet filter for models of 1 HP and higher
- Direct drive
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.4 HP, 0.6 HP, 1 HP, 1.2 HP, 2.4 HP, 4 HP, 5.4 HP |
|---|---|
| Capacity | 5.3 ACFM, 8.2 ACFM, 12 ACFM, 18 ACFM, 28 ACFM, 41.2 ACFM, 53 ACFM, 68 ACFM |
| Voltage | 110/1/60, 230/1/60, 208-230/460/3/60 |
| Connection Size / Type | 3/8" FNPT in, 1/2" FNPT out, 1/2" FNPT in, 1/2" FNPT in/out, 3/4" FNPT in, 1/2" FNPT out, 1" FNPT in/out, 1-1/2" FNPT in/out |
