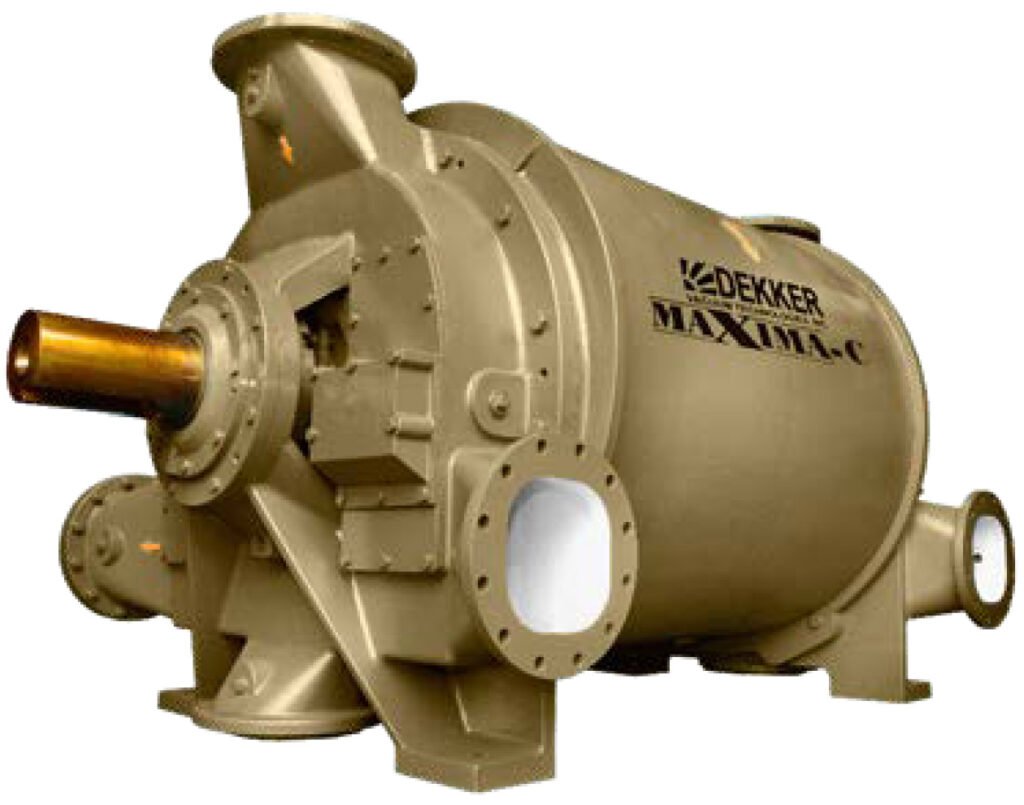

Dekker Maxima-C C4 Series Single-Stage Liquid Ring Vacuum Pump
2700 to 22600 ACFM capacity single-stage vacuum pump with vacuum capabilities up to 28” HgV
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker Maxima-C C4 Series Single-Stage Liquid Ring Vacuum Pump is designed to handle larger amounts of seal liquid or liquid carryover, thanks to its robust conical design instead of a flat plate design. Its heavy-duty construction features a 20-blade shrouded rotor and multiple inlet/discharge configurations, ensuring maximum efficiency, low noise, and exceptional reliability with minimal maintenance required.
Overview and Features
Features
- 110 to 1200 HP ranges available
- 2700 to 22600 ACFM
- Conical design
- 20-blade shrouded rotor
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 110 to 280 HP, 125 to 325 HP, 120 to 440 HP, 200 to 510 HP, 225 to 600 HP, 275 to 675 HP, 375 to 810 HP, 600 to 1200 HP |
|---|---|
| Capacity | 2700 to 5300 ACFM, 3300 to 6100 ACFM, 4400 to 8000 ACFM, 5200 to 9500 ACFM, 6000 to 11500 ACFM, 6800 to 12900 ACFM, 8600 to 15500 ACFM, 15000 to 22600 ACFM |
| GPM | 30 to 40 GPM, 44 to 57 GPM, 35 to 42 GPM, 40 to 48 GPM, 55 to 65 GPM, 60 to 72 GPM, 74 to 90 GPM, 117 to 187 GPM |
| Connection Size / Type | 12" in, 10" out 150# flange, 16" in, 12" out 150# flange, 18" in, 14" out 150# flange, 20" in, 16" out 150# flange |
