Dekker RVL DuraVane Lubricated Rotary Vane Vacuum Pump
Single-stage pump with an integrated closed loop oil recirculation system
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

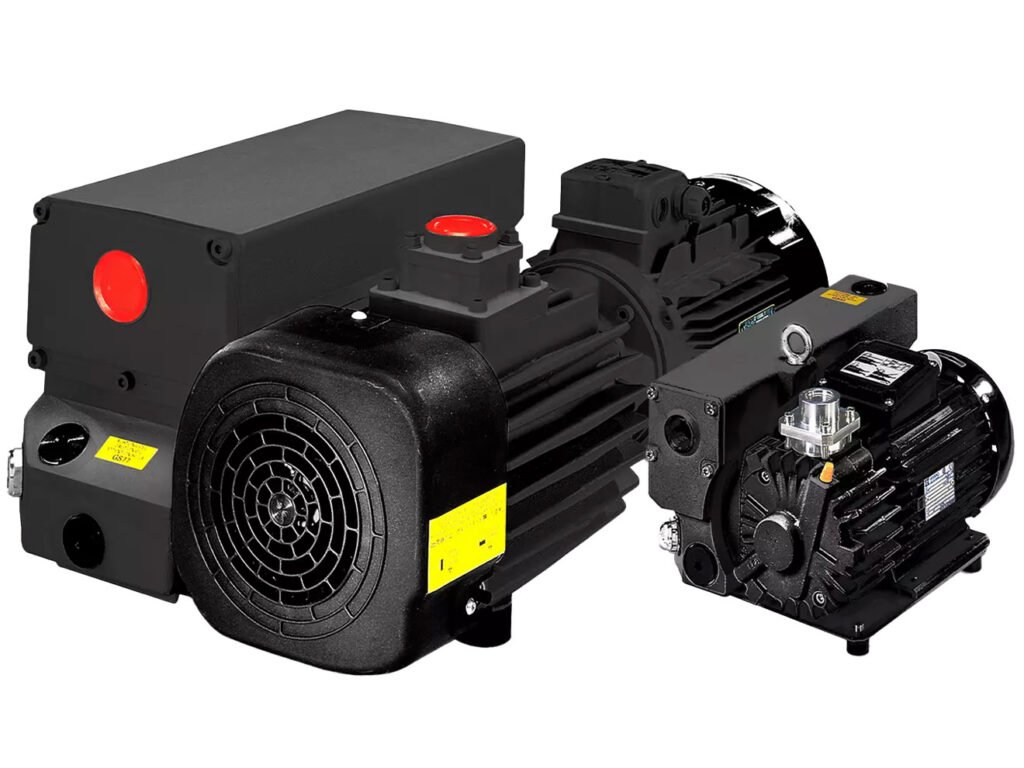

The Dekker DuraVane Lubricated Rotary Vane Vacuum Pump is a pump that operates in a single stage and has a built-in closed-loop oil recirculation system. It features heavy-duty construction, a compact design, advanced vane material for a longer lifespan, low levels of noise and vibration, minimal maintenance needs, an air-cooled design, and is easy to install.
Overview and Features
Features
- 0.88 to 25 HP models available
- 7.7 to 494 ACFM
- Air-cooled design
- High-efficiency multi-stage exhaust filter
- Direct drive
- Optional synthetic oil upgrade available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.88 HP, 1.2 HP, 1.5 HP, 1.75 HP, 2.4 HP, 4.8 HP, 5 HP, 7.4 HP, 8.6 HP, 25 HP |
|---|---|
| Capacity | 7.7 ACFM, 11.2 ACFM, 11 ACFM, 18.3 ACFM, 17.1 ACFM, 31.2 ACFM, 41.8 ACFM, 68.9 ACFM, 107 ACFM, 141 ACFM, 200 ACFM, 494 ACFM |
| Voltage | 110/1/60, 230/1/60, 230/460/3/60, 115/230/1/60, 200-230/460/3/60, 575/3/60 |
| Connection Size / Type | 1/2" NPT in, Open out, 1/2" NPT in, 1/2" NPT out, 1-1/4" NPT in, 1-1/4" NPT out, 1-1/2" NPT in, 1-1/4" NPT out, 2" NPT in, 2" NPT out, 4" flange in, 4" flange out (DN100/ ASA150) |
