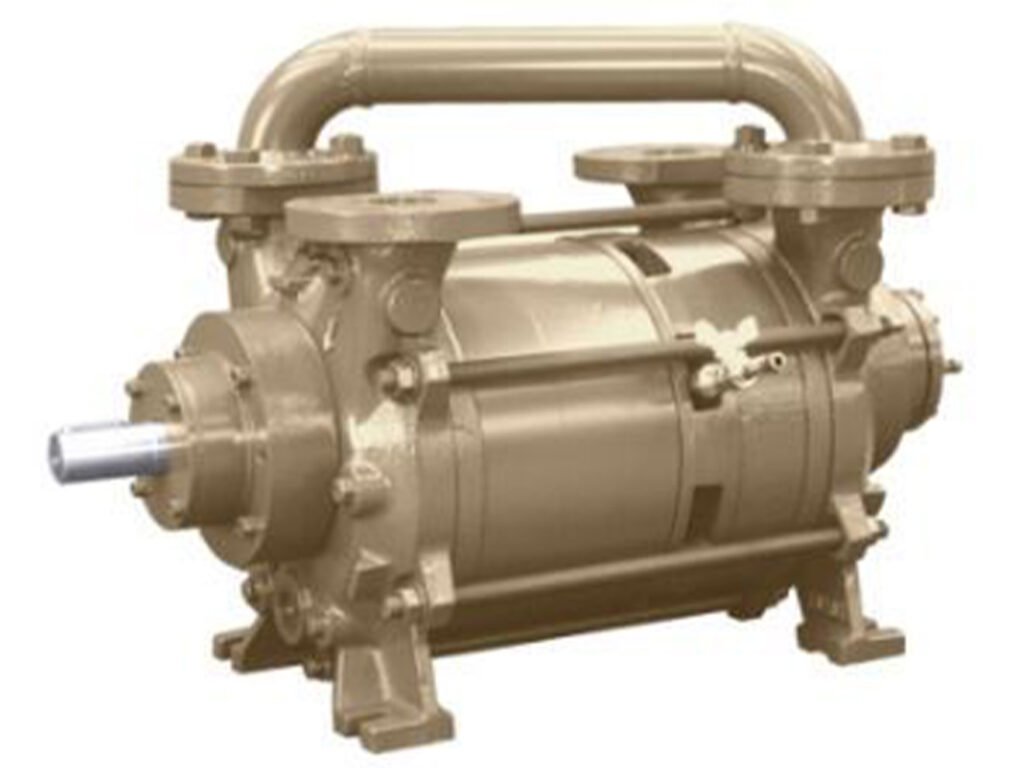

Dekker Titan Series Two-Stage Liquid Ring Vacuum Pump
Designed for heavy duty applications pumping saturated vapors at vacuum levels ranging from 25" Hg up to 29" Hg
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker Titan Series Two-Stage Liquid Ring Vacuum Pump is highly efficient for pumping saturated vapors at vacuum levels ranging from 25″ Hg up to 29″Hg. This two-stage pump is more efficient than a single-stage design when pumping mixtures of air and condensable vapors above 25″ Hg.
Overview and Features
Features
- 2 to 50 HP options
- 15 to 500 ACFM
- 1.5 to 15 GPM (depending on model)
- Cast iron or Stainless Steel housings available
- Manufactured to ISO 9001:2015 standards
- Capable of handling saturated gas mixtures and small amounts of liquids
- 230/460 motor voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 25 to 40 HP, 40 to 50 HP |
|---|---|
| Capacity | 15 ACFM, 35 ACFM, 75 ACFM, 100 ACFM, 140 ACFM, 200 ACFM, 250 ACFM, 300 ACFM, 400 ACFM, 500 ACFM |
| GPM | 1.5 GPM, 4 GPM, 10 GPM, 12 GPM, 16 GPM, 14 GPM, 15 GPM |
| Material (Housing/Portplate/Impeller) | Cast iron / Cast iron / Bronze, Cast iron / Cast iron / 316 stainless steel, 316 stainless steel / 316 stainless steel / 316 stainless steel |
| Connection Size / Type | 1.25" FNPT, 1.5" 150# flange, 2" 150# flange, 3" 150# flange |
