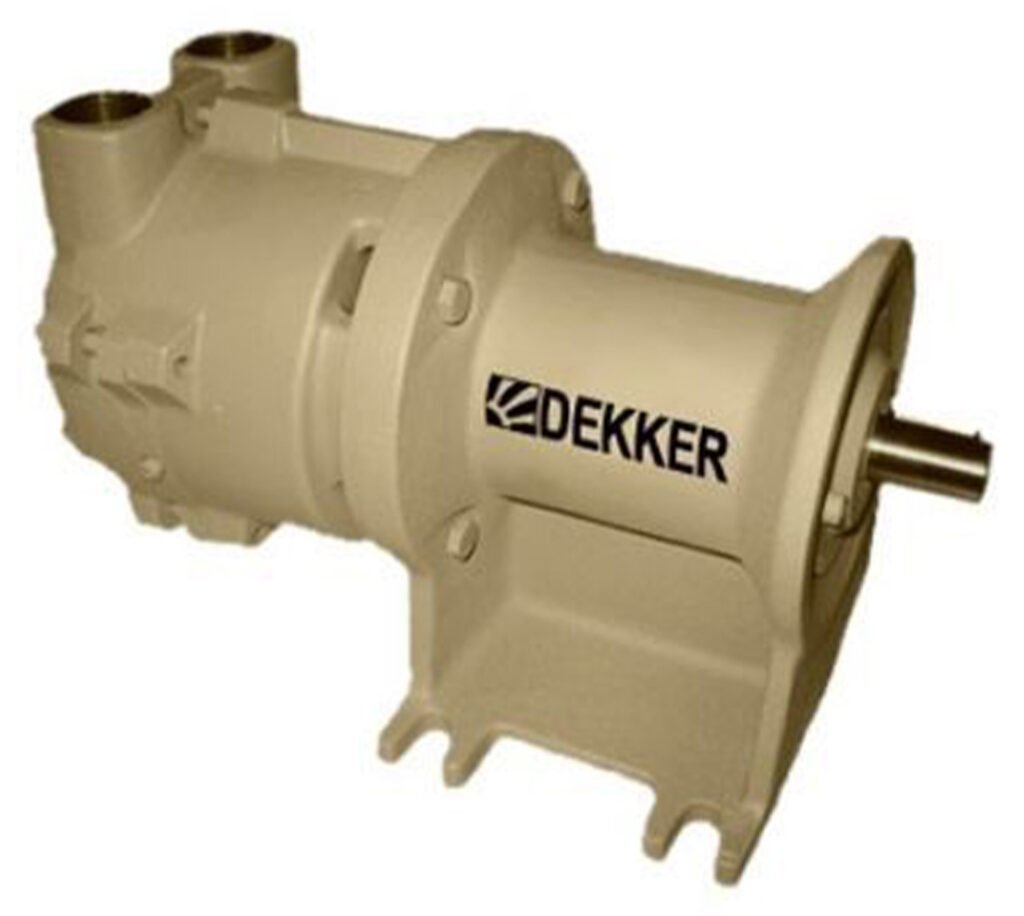

Dekker Titan Series Single-Stage Pedestal Liquid Ring Vacuum Pump
Pedestal bare-shaft vacuum pump capable of 20 to 300 ACFM capacity and vacuum levels up to 29" Hg
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker Titan Series Single-Stage Pedestal Liquid Ring Vacuum Pump can achieve vacuum levels of up to 29″ Hg. It has a variable discharge port design that automatically adjusts to the internal compression ratio of the pump, ensuring maximum efficiency across the vacuum range. The pump’s advanced fluid dynamics create high volumetric efficiency, requiring 50% less seal liquid.
Overview and Features
Features
- 1.5 to 20 HP options
- 20 to 300 ACFM
- 0.75 to 6 GPM (depending on model)
- 316 Stainless Steel impeller standard on all models
- Cast iron or Stainless Steel housings available
- Manufactured to ISO 9001:2015 standards
- 230/460 motor voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 1.5 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP |
|---|---|
| Capacity | 20 ACFM, 30 ACFM, 60 ACFM, 75 ACFM, 100 ACFM, 150 ACFM, 200 ACFM, 300 ACFM |
| GPM | 0.75 GPM, 1.5 GPM, 3.5 GPM, 4 GPM, 4.5 GPM, 6 GPM |
| Material (Housing/Portplate/Impeller) | Cast iron / Cast iron / 316 stainless steel, 316 stainless steel / 316 stainless steel / 316 stainless steel |
| Connection Size / Type | 1" FNPT, 1.5" 150# flange, 2.5" 150# flange |
