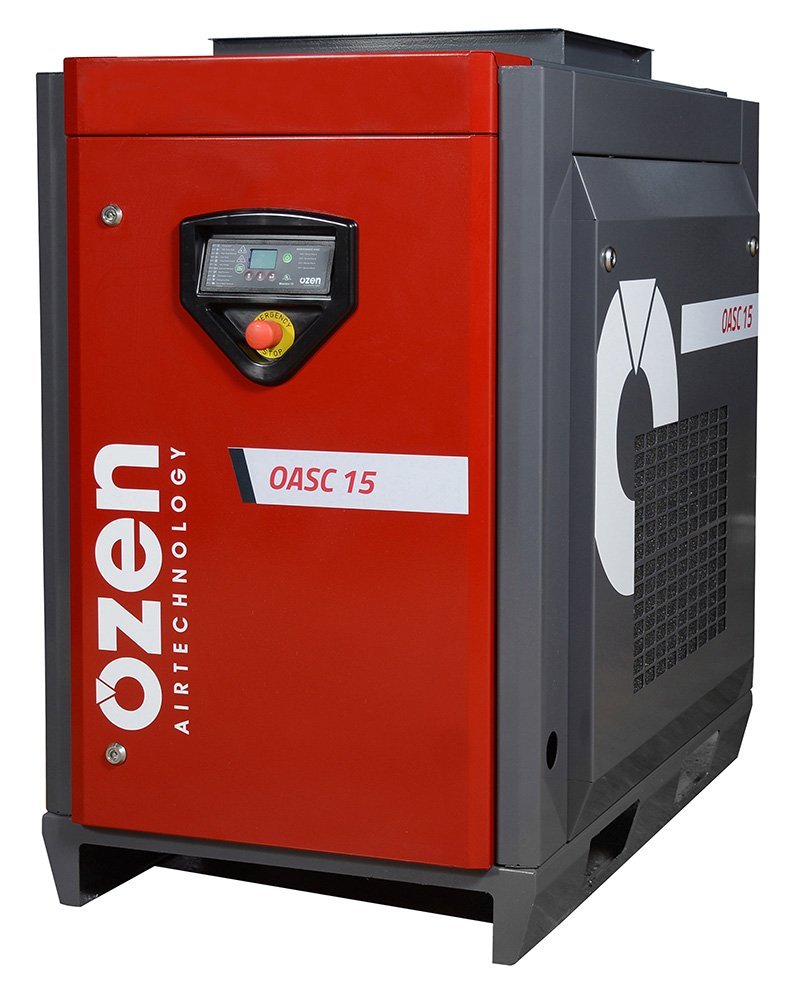

OZEN OASC S Belt Drive Rotary Screw Air Compressor

Product overview

Built around your operating requirements.

Description

The OZEN OASC S Belt Drive Rotary Screw Air Compressor is a fixed speed 5 to 10 HP single-phase voltage compressor with a NEMA TEFC premium efficiency motor and Poly-V belt drive, providing high performance and durability. The high-quality airend produces minimal vibration and sound while delivering air pressures up to 218 PSI. The included Maestro controller offers a user-friendly interface for monitoring the equipment and planning maintenance. The radial cooling design features a large-sized radiator pack and enables the OASC-S compressor to keep working with high efficiency in various environments.

Overview and Features

Features

5 to 10 HP NEMA TEFC Premium Efficient Motor
Poly-V belt drive
13 to 27.9 CFM capacities
100 to 218 PSI max pressure ratings
230/1/60 voltage
Compact oil separator
Maestro 15 controller
IP55 electrical panel
Optional tank mount and dryer available

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Horsepower	5 HP, 7.5 HP, 10 HP
Configuration	Base Mount, Tank Mount, 80 gallon - Horizontal, Tank Mount, 80 gallon with Dryer
Capacity	23.6 CFM at 100 PSI, 20 CFM at 125 PSI, 16.9 CFM at 150 PSI, 13.7 CFM at 190 PSI, 13 CFM at 218 PSI, 32.7 CFM at 100 PSI, 28.5 CFM at 125 PSI, 24.6 CFM at 150 PSI, 20.4 CFM at 190 PSI, 18.3 CFM at 218 PSI, 44 CFM at 100 PSI, 38.7 CFM at 125 PSI, 36.3 CFM at 150 PSI, 29.9 CFM at 190 PSI, 27.8 CFM at 218 PSI, 23.7 CFM at 100 PSI, 20.1 CFM at 125 PSI, 17 CFM at 150 PSI, 13.8 CFM at 190 PSI, 13.1 CFM at 218 PSI, 32.8 CFM at 100 PSI, 28.6 CFM at 125 PSI, 24.7 CFM at 150 PSI, 20.5 CFM at 190 PSI, 18.4 CFM at 218 PSI, 44.1 CFM at 100 PSI, 38.8 CFM at 125 PSI, 36.4 CFM at 150 PSI, 30 CFM at 190 PSI, 27.9 CFM at 218 PSI, 23.4 CFM at 100 PSI, 19.8 CFM at 125 PSI, 16.7 CFM at 150 PSI, 13.5 CFM at 190 PSI, 12.8 CFM at 218 PSI, 32.5 CFM at 100 PSI, 28.3 CFM at 125 PSI, 24.4 CFM at 150 PSI, 20.2 CFM at 190 PSI, 18.1 CFM at 218 PSI, 43.8 CFM at 100 PSI, 38.5 CFM at 125 PSI, 36.1 CFM at 150 PSI, 29.7 CFM at 190 PSI, 27.6 CFM at 218 PSI
Voltage	230/1/60

Horsepower

5 HP, 7.5 HP, 10 HP

Configuration

Base Mount, Tank Mount, 80 gallon - Horizontal, Tank Mount, 80 gallon with Dryer

Capacity

23.6 CFM at 100 PSI, 20 CFM at 125 PSI, 16.9 CFM at 150 PSI, 13.7 CFM at 190 PSI, 13 CFM at 218 PSI, 32.7 CFM at 100 PSI, 28.5 CFM at 125 PSI, 24.6 CFM at 150 PSI, 20.4 CFM at 190 PSI, 18.3 CFM at 218 PSI, 44 CFM at 100 PSI, 38.7 CFM at 125 PSI, 36.3 CFM at 150 PSI, 29.9 CFM at 190 PSI, 27.8 CFM at 218 PSI, 23.7 CFM at 100 PSI, 20.1 CFM at 125 PSI, 17 CFM at 150 PSI, 13.8 CFM at 190 PSI, 13.1 CFM at 218 PSI, 32.8 CFM at 100 PSI, 28.6 CFM at 125 PSI, 24.7 CFM at 150 PSI, 20.5 CFM at 190 PSI, 18.4 CFM at 218 PSI, 44.1 CFM at 100 PSI, 38.8 CFM at 125 PSI, 36.4 CFM at 150 PSI, 30 CFM at 190 PSI, 27.9 CFM at 218 PSI, 23.4 CFM at 100 PSI, 19.8 CFM at 125 PSI, 16.7 CFM at 150 PSI, 13.5 CFM at 190 PSI, 12.8 CFM at 218 PSI, 32.5 CFM at 100 PSI, 28.3 CFM at 125 PSI, 24.4 CFM at 150 PSI, 20.2 CFM at 190 PSI, 18.1 CFM at 218 PSI, 43.8 CFM at 100 PSI, 38.5 CFM at 125 PSI, 36.1 CFM at 150 PSI, 29.7 CFM at 190 PSI, 27.6 CFM at 218 PSI

Voltage

230/1/60
