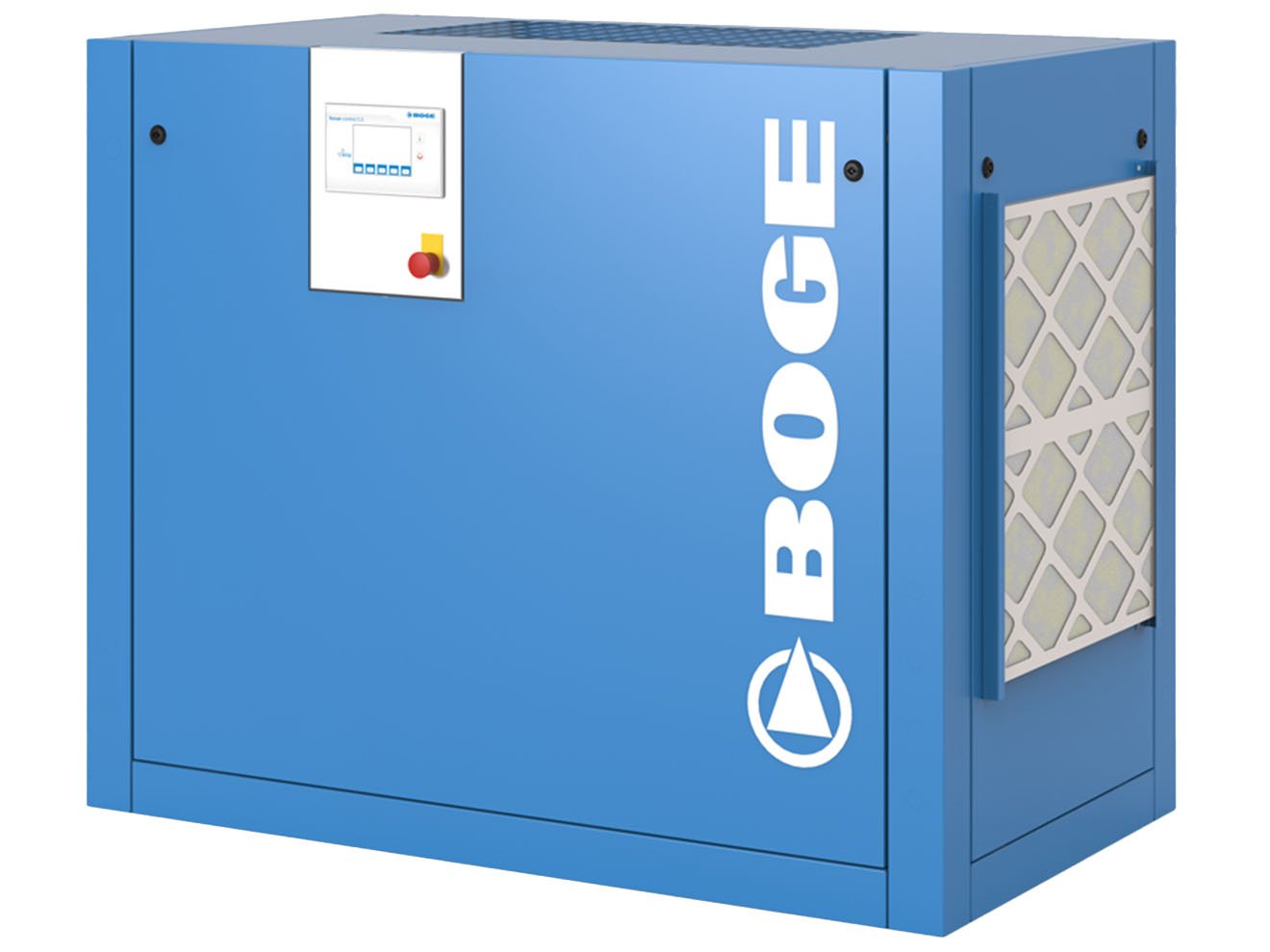

BOGE C-2 Series Variable Speed Rotary Screw Air Compressor

Product overview

Built around your operating requirements.

Description

The BOGE C-2 Series Variable Speed Rotary Screw Air Compressor is a compact and enclosed design, is available as a base mounted unit or can be mounted to a 120 gallon horizontal air receiver tank. An integrated refrigerated air dryer can be added to ensure clean and dry air output.

Overview and Features

Features

15 to 30 HP
16 to 135 CFM (depending on HP and pressure selected)
120 gallon tank mount option
Integrated refrigerated air dryer option available
Base Control standard with option to upgrade to Focus Control 2.0

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Horsepower	15 HP, 20 HP, 25 HP, 30 HP
Capacity	19 to 73 CFM at 100 PSI, 19 to 71 CFM at 110 PSI, 19 to 67 CFM at 125 PSI, 19 to 59 CFM at 150 PSI, 18 to 49 CFM at 190 PSI, 16 to 41 CFM at 215 PSI, 19 to 95 CFM at 100 PSI, 19 to 92 CFM at 110 PSI, 19 to 87 CFM at 125 PSI, 18 to 83 CFM at 150 PSI, 18 to 70 CFM at 190 PSI, 17 to 53 CFM at 215 PSI, 19 to 115 CFM at 100 PSI, 19 to 112 CFM at 110 PSI, 19 to 106 CFM at 125 PSI, 18 to 100 CFM at 150 PSI, 25 to 87 CFM at 190 PSI, 25 to 73 CFM at 215 PSI, 19 to 135 CFM at 100 PSI, 19 to 131 CFM at 110 PSI, 19 to 124 CFM at 125 PSI, 18 to 118 CFM at 150 PSI, 25 to 102 CFM at 190 PSI, 25 to 88 CFM at 215 PSI
Configuration	Base Mount, Base Mount with Integrated Air Dryer, 120 Gallon Tank Mount, 120 Gallon Tank Mount with Integrated Air Dryer
Voltage	460/3/60, 575/3/60

Horsepower

15 HP, 20 HP, 25 HP, 30 HP

Capacity

19 to 73 CFM at 100 PSI, 19 to 71 CFM at 110 PSI, 19 to 67 CFM at 125 PSI, 19 to 59 CFM at 150 PSI, 18 to 49 CFM at 190 PSI, 16 to 41 CFM at 215 PSI, 19 to 95 CFM at 100 PSI, 19 to 92 CFM at 110 PSI, 19 to 87 CFM at 125 PSI, 18 to 83 CFM at 150 PSI, 18 to 70 CFM at 190 PSI, 17 to 53 CFM at 215 PSI, 19 to 115 CFM at 100 PSI, 19 to 112 CFM at 110 PSI, 19 to 106 CFM at 125 PSI, 18 to 100 CFM at 150 PSI, 25 to 87 CFM at 190 PSI, 25 to 73 CFM at 215 PSI, 19 to 135 CFM at 100 PSI, 19 to 131 CFM at 110 PSI, 19 to 124 CFM at 125 PSI, 18 to 118 CFM at 150 PSI, 25 to 102 CFM at 190 PSI, 25 to 88 CFM at 215 PSI

Configuration

Base Mount, Base Mount with Integrated Air Dryer, 120 Gallon Tank Mount, 120 Gallon Tank Mount with Integrated Air Dryer

Voltage

460/3/60, 575/3/60
