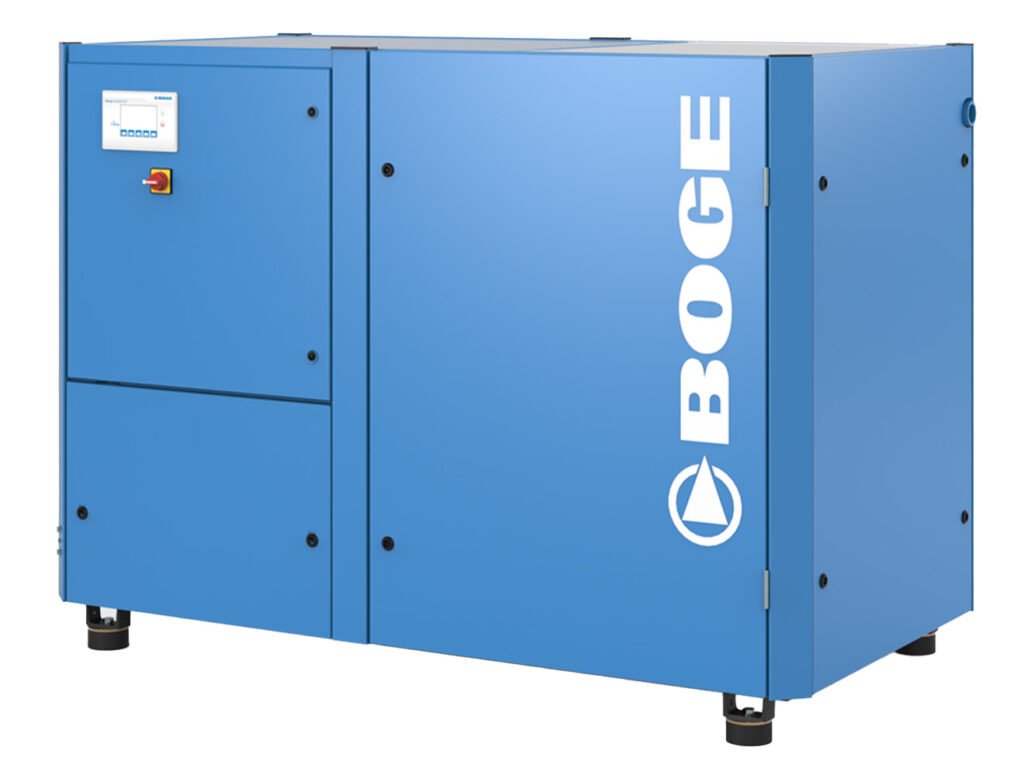

BOGE S-3 Series Fixed Speed Rotary Screw Air Compressor

Product overview

Built around your operating requirements.

Description

The BOGE S-3 Series Fixed Speed Rotary Screw Air Compressor is an enclosed compressor design with efficiency, maximum operating safety and ease of maintenance in mind. All of the functional areas are clearly laid out, safe and easy to reach, and all of the components are designed for a long lifespan to minimize downtime and operational costs.

The included Focus Control 2.0 controls up to four connected compressors with base load switching as required and monitors all inlet and final pressures. Whether the most powerful compressor is always switched on first or the oldest is always switched on last, or whether they are all used to capacity equally so that maintenance can be carried out at the same time – this modular control provides flexibility, providing a simple solution while ensuring redundancy.

Overview and Features

Features

40 to 340 HP
High efficiency IE3 motor
140 to 1489 CFM (depending on HP and pressure selected)
Internal steel piping
Horizontal oil separator system
Focus Control 2.0 standard

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Horsepower	40 HP, 50 HP, 60 HP, 75 HP, 100 HP, 270 HP, 340 HP
Capacity	192 CFM at 100 PSI, 184 CFM at 125 PSI, 167 CFM at 150 PSI, 140 CFM at 190 PSI, 240 CFM at 100 PSI, 225 CFM at 125 PSI, 205 CFM at 150 PSI, 175 CFM at 190 PSI, 269 CFM at 100 PSI, 258 CFM at 125 PSI, 231 CFM at 150 PSI, 196 CFM at 190 PSI, 287 CFM at 100 PSI, 273 CFM at 125 PSI, 240 CFM at 150 PSI, 208 CFM at 190 PSI, 359 CFM at 100 PSI, 344 CFM at 125 PSI, 298 CFM at 150 PSI, 256 CFM at 190 PSI, 475 CFM at 100 PSI, 452 CFM at 125 PSI, 387 CFM at 150 PSI, 336 CFM at 190 PSI, 1235 CFM at 100 PSI, 1129 CFM at 125 PSI, 1084 CFM at 150 PSI, 923 CFM at 190 PSI, 1489 CFM at 100 PSI, 1360 CFM at 125 PSI, 1348 CFM at 150 PSI, 1170 CFM at 190 PSI
Outlet Size	1-1/4" NPT, 1-1/2" NPT, 4" ANSI Flange
Voltage	230/3/60, 460/3/60, 575/3/60

Horsepower

40 HP, 50 HP, 60 HP, 75 HP, 100 HP, 270 HP, 340 HP

Capacity

192 CFM at 100 PSI, 184 CFM at 125 PSI, 167 CFM at 150 PSI, 140 CFM at 190 PSI, 240 CFM at 100 PSI, 225 CFM at 125 PSI, 205 CFM at 150 PSI, 175 CFM at 190 PSI, 269 CFM at 100 PSI, 258 CFM at 125 PSI, 231 CFM at 150 PSI, 196 CFM at 190 PSI, 287 CFM at 100 PSI, 273 CFM at 125 PSI, 240 CFM at 150 PSI, 208 CFM at 190 PSI, 359 CFM at 100 PSI, 344 CFM at 125 PSI, 298 CFM at 150 PSI, 256 CFM at 190 PSI, 475 CFM at 100 PSI, 452 CFM at 125 PSI, 387 CFM at 150 PSI, 336 CFM at 190 PSI, 1235 CFM at 100 PSI, 1129 CFM at 125 PSI, 1084 CFM at 150 PSI, 923 CFM at 190 PSI, 1489 CFM at 100 PSI, 1360 CFM at 125 PSI, 1348 CFM at 150 PSI, 1170 CFM at 190 PSI

Outlet Size

1-1/4" NPT, 1-1/2" NPT, 4" ANSI Flange

Voltage

230/3/60, 460/3/60, 575/3/60
