BOGE

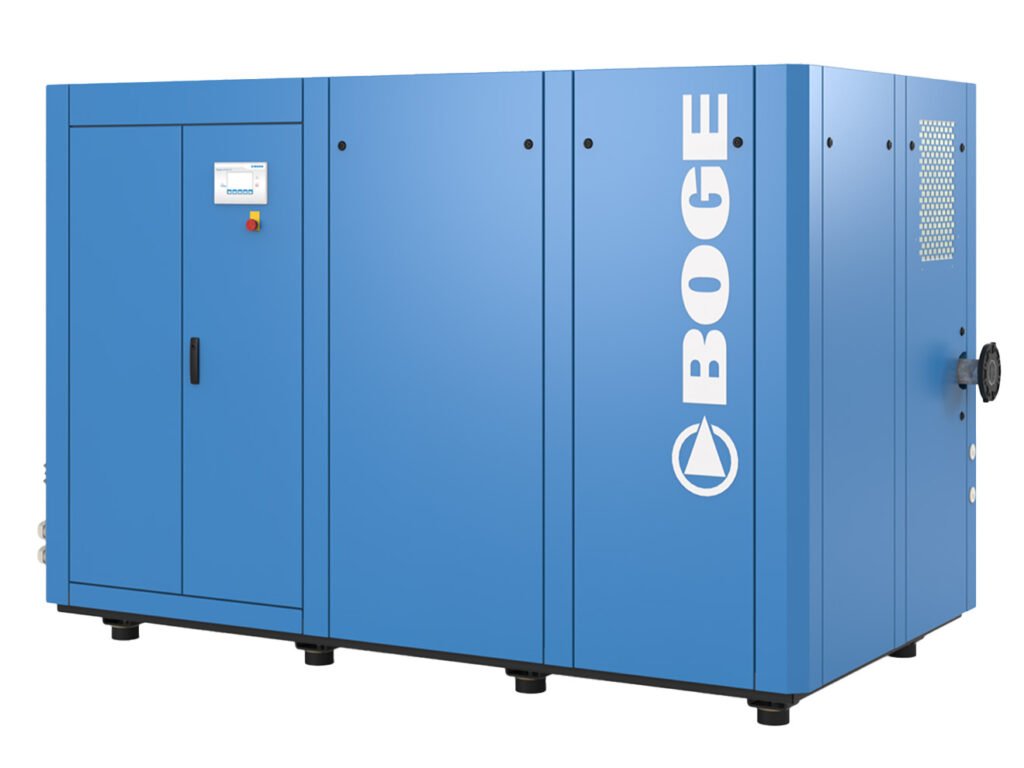

BOGE S-4 Series Fixed Speed Rotary Screw Air Compressor
100 to 200 HP, up to 1055 CFM, 460/3/60 voltage, Base Mount
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The BOGE S-4 Series Fixed Speed Rotary Screw Air Compressor is available in 100 to 200 HP models with pressure ratings from 100 to 190 PSI and capable of delivering up to 1055 CFM of air. The in-house developed direct drive airend is designed for maximum efficiency and virtually maintenance‑free operation.
Overview and Features
Features
- 100 to 200 HP
- Up to 1055 CFM
- 100 to 190 PSI pressure options
- 460/3/60 voltage standard
- Base mounted
- Fixed speed drive
- Direct-drive or gear drive airend
- IE3 motors
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Drive Type | Gear Drive, Direct Drive |
|---|---|
| Horsepower | 100 HP, 125 HP, 150 HP, 175 HP, 200 HP |
| Capacity | 405 CFM, 534 CFM, 460 CFM, 457 CFM, 446 CFM, 360 CFM, 421 CFM, 628 CFM, 570 CFM, 567 CFM, 542 CFM, 459 CFM, 659 CFM, 623 CFM, 531 CFM, 726 CFM, 653 CFM, 650 CFM, 617 CFM, 543 CFM, 766 CFM, 681 CFM, 620 CFM, 530 CFM, 865 CFM, 855 CFM, 770 CFM, 667 CFM, 1055 CFM, 1006 CFM, 713 CFM, 848 CFM, 830 CFM |
| Pressure | 100 PSI, 110 PSI, 125 PSI, 150 PSI, 190 PSI |
| Voltage | 460/3/60 |
