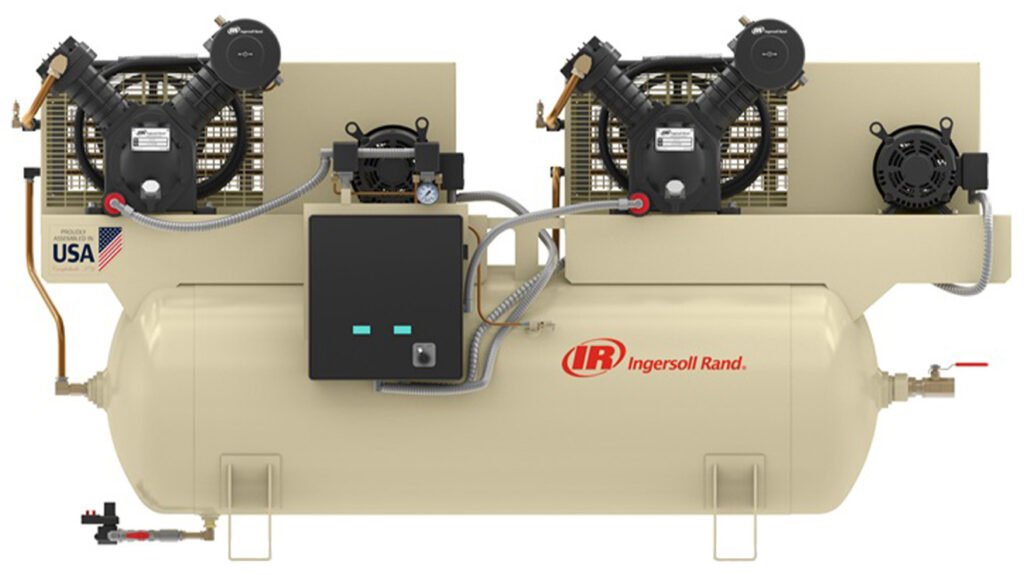

Ingersoll Rand 2340 Duplex Two-Stage Piston Air Compressor

Product overview

Built around your operating requirements.

Description

The Ingersoll Rand 2340 Duplex Two-Stage Piston Air Compressor is designed for heavy shop or industrial use. It provides the reliability and performance ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, woodworking shops, dry cleaners, car washes, general maintenance/repair shops, and farms. Available in base mount and tank mount configurations and multiple motor options.

Overview and Features

Features

4 or 6 HP
Capacities:
- 4 HP: 13.6 CFM at 175 PSI
- 6 HP: 18 CFM at 175 PSI
1 or 3 phase voltages available
Manual Tank Drain
AS & S Control
NEMA 1 Electrics
Enclosed Belt Guard
Inlet Filter Standard Duty

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Horsepower	4 HP (two 2 HP), 6 HP (two 3 HP)
Capacity	13.6 CFM at 175 PSI, 18 CFM at 175 PSI
Configuration	80 gallon tank mount, horizontal
Voltage	No motor, 200/3/60, 230/3/60, 460/3/60, 575/3/60, 230/1/60
Motor	None, Standard, TEFC
Low Oil Level Switch	None, Add Nema 1 Low Oil Level Switch, Add Nema 4 Low Oil Level Switch, Add Nema 7 Low Oil Level Switch
High Temp Air Switch	None, Add Nema 1 HT Air Switch, Add Nema 4 HT Air Switch
AS&S Control/Pressure Relief Valve	None, Add Nema 4 AS&S Control with Pressure Relief Valve, Add Nema 7 AS&S Control with Pressure Relief Valve
Drain Valve	Manual Drain Valve (Standard), Pneumatic Drain Valve, Electric Drain Valve
Alternator	None, Nema 1 E-Series Alternator, Nema 1 Deluxe Alternator, Nema 4 Deluxe Alternator
Additional Options	Inlet Filter Heavy Duty, Air Cooled Aftercooler, Install Kit

Horsepower

4 HP (two 2 HP), 6 HP (two 3 HP)

Capacity

13.6 CFM at 175 PSI, 18 CFM at 175 PSI

Configuration

80 gallon tank mount, horizontal

Voltage

No motor, 200/3/60, 230/3/60, 460/3/60, 575/3/60, 230/1/60

Motor

None, Standard, TEFC

Low Oil Level Switch

None, Add Nema 1 Low Oil Level Switch, Add Nema 4 Low Oil Level Switch, Add Nema 7 Low Oil Level Switch

High Temp Air Switch

None, Add Nema 1 HT Air Switch, Add Nema 4 HT Air Switch

AS&S Control/Pressure Relief Valve

None, Add Nema 4 AS&S Control with Pressure Relief Valve, Add Nema 7 AS&S Control with Pressure Relief Valve

Drain Valve

Manual Drain Valve (Standard), Pneumatic Drain Valve, Electric Drain Valve

Alternator

None, Nema 1 E-Series Alternator, Nema 1 Deluxe Alternator, Nema 4 Deluxe Alternator

Additional Options

Inlet Filter Heavy Duty, Air Cooled Aftercooler, Install Kit
