Ingersoll Rand

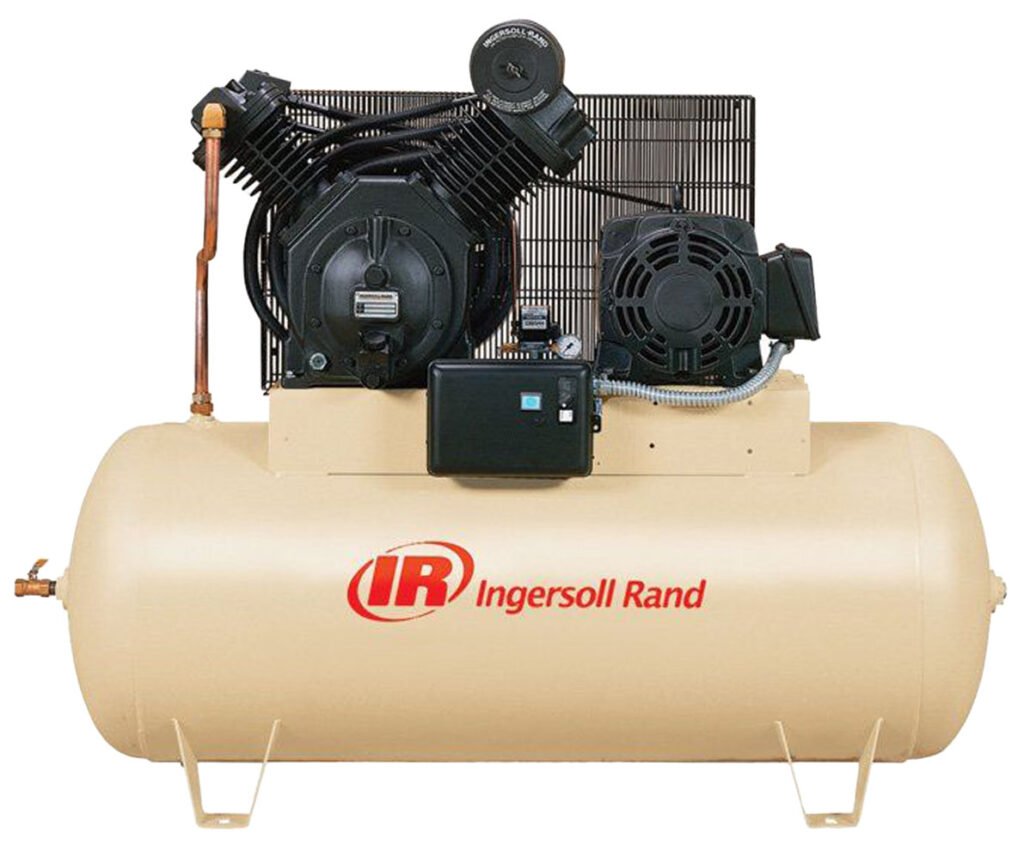

Ingersoll Rand 7100 Two-Stage Piston Air Compressor

15 HP electric driven reciprocating compressor with 50 CFM capacity and cast iron pump

Piston Air CompressorsTwo Stage Piston Air CompressorsPrice on request

Request a tailored quote

Tell our team about your pressure, flow, voltage, and installation requirements.

Product overview

Built around your operating requirements.

Description

The Ingersoll Rand 7100 two-stage piston air compressor has a 50 CFM capacity and 175psig max pressure. The 7100 is designed for heavy shop or industrial use and applications including; automotive service and body shops, machine shops, production and manufacturing lines, general maintenance/repair shops, and farms. The pump is made from durable cast iron construction for extended pump life and is designed for over 15,000 hours of use. The individually cast cylinders, overhung crankshaft, and one piece connecting rod makes maintenance simple with minimal downtime.

Packages:

  • Value Package: 100% cast iron pump, ASME-coded receiver tank, ODP motor, magnetic motor starter, automatic start/stop control with pressure switch, oil sight glass and manual drain.
  • Value Plus Package: Includes Value package features plus upgraded electric drain and air-cooled aftercooler.
  • Premium Package: Includes Value Plus package features along with low oil level switch and upgraded dual control with centrifugal unloader.

Optional Installation Kit Includes:

  • 1 Stainles braidied flex hose
  • 2 JIC x NPT hose adaptors
  • 1 set of vibration pads

Optional Start Up Kit Includes:

  • 4 quarts of T30 All Season Select oil
  • 1 set of replacement air filters

Overview and Features

Features

  • 15 HP
  • 50 CFM capacity at 175 PSI
  • 175 PSIG maximum operating pressure
  • 120 gallon ASME tank – horizontal orientation
  • 208, 230, 460, or 575V options (all 3-phase)
  • E Series starter
  • NEMA 1 electrics
  • 3/4in NPT outlet
  • Value, Value Plus, and Premium packages available

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

ConfigurationValue, Value plus (After Cooler & Drain), Premium (After Cooler, Drain & LOLS)
Horsepower15 HP
Capacity50 CFM
Pressure175 PSIG
Voltage208/3/60, 230/3/60, 460/3/60, 575/3/60
