ABAC

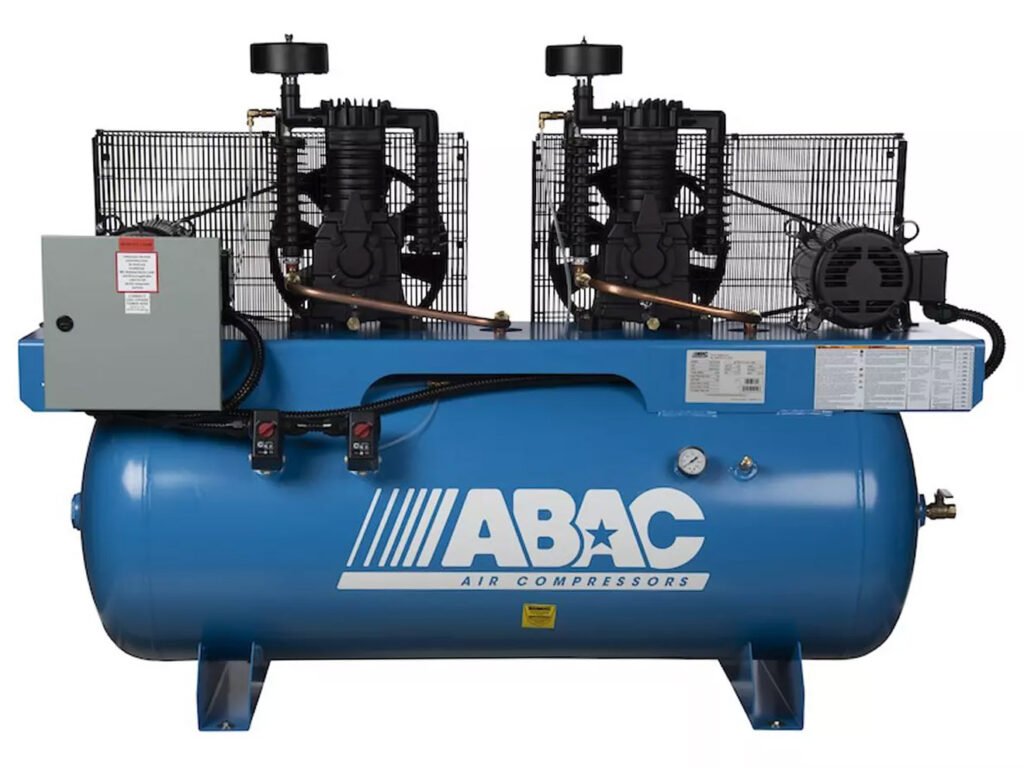

ABAC Belt Drive Duplex Two-Stage Piston Air Compressor
10 or 15 HP duplex compressor with up to 22.2 CFM capacity at 175 PSI, 120 gallon tank mount
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ABAC Belt Drive Duplex Two-Stage Piston Air Compressor combines a premium quality aluminum pump with cast iron cylinders, suitable for a variety of applications including air and water spraying, impact wrenching, screwing and so much more. The inner cooling technology manages operating temperature, reducing the risk of overheating and maximizing productivity.
Overview and Features
Features
- 10 HP (two 5 HP pumps) or 15 HP (two 7.5 HP pumps)
- 33.2 or 44.6 CFM (depending on HP selected)
- 175 PSI max pressure
- 120 gallon tank mount
- Cast Iron Cylinders
- Aluminum Heads and Aftercoolers
- Fully Enclosed Belt Guards
- Alternating and dual control
- Programmable control panel
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 10 HP (two 5 HP pumps), 15 HP (two 7.5 HP pumps) |
|---|---|
| Capacity | 33.2 CFM at 175 PSI, 44.6 CFM at 175 PSI |
| Configuration | 120 gallon horizontal tank mount |
| Voltage | 230/3/60, 460/3/60, 230/1/60 |
