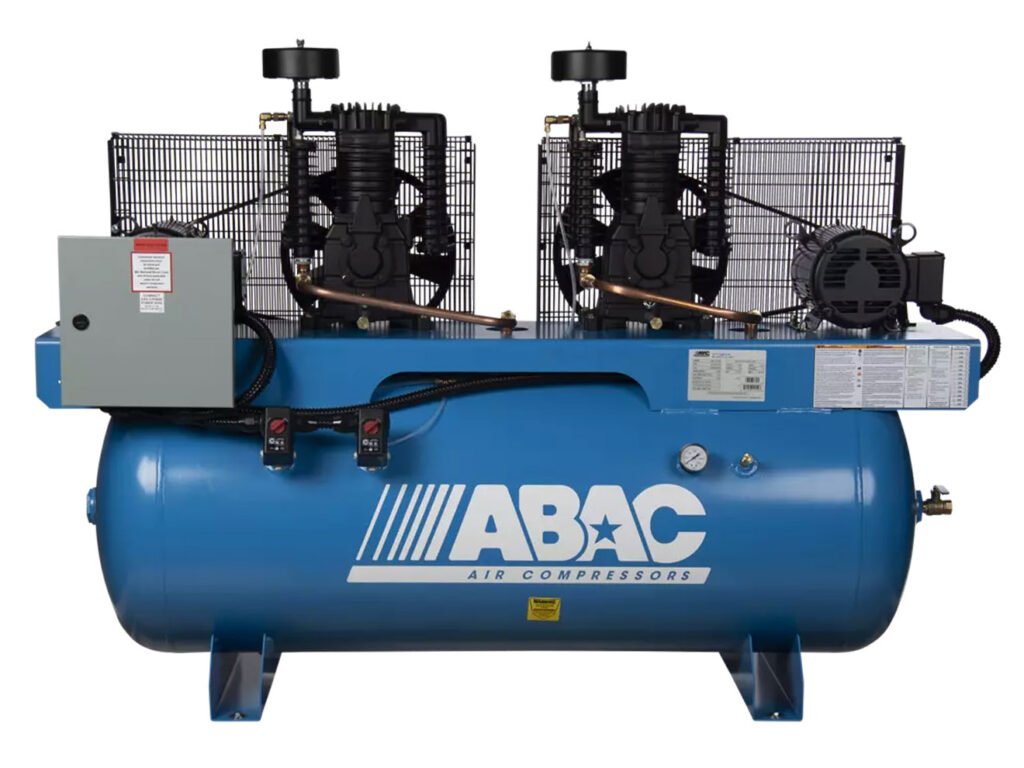

ABAC Ironman Duplex Two-Stage Piston Air Compressor
10 to 20 HP tank mounted air compressor, up to 64 CFM, 175 PSI max pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ABAC Ironman Duplex Two-Stage Piston Air Compressor is designed for professionals, delivering up to 64 CFM at 175 PSI. The Ironman Duplex series offers full cast iron construction, alternating and dual control capability, and a fully programmable control panel. This compressor is suitable for professional applications in need of consistent compressed air supply, such as metal and wood workshops or auto body and repair shops.
Overview and Features
Features
- 10 to 20 HP
- 32 to 64 CFM capacities (depending on HP selected)
- 175 PSI max pressure
- Alternating and dual control
- Fully programmable control panel
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 10 HP (two 5 pumps), 15 HP (two 7.5 HP pumps), 20 HP (two 10 HP pumps) |
|---|---|
| Capacity | 32 CFM at 175 PSI, 42 CFM at 175 PSI, 64 CFM at 175 PSI |
| Voltage | 230/1/60, 230/3/60, 460/3/60, 575/3/60 |
| Configuration | 120 gallon horizontal tank mount, 200 gallon horizontal tank mount |
