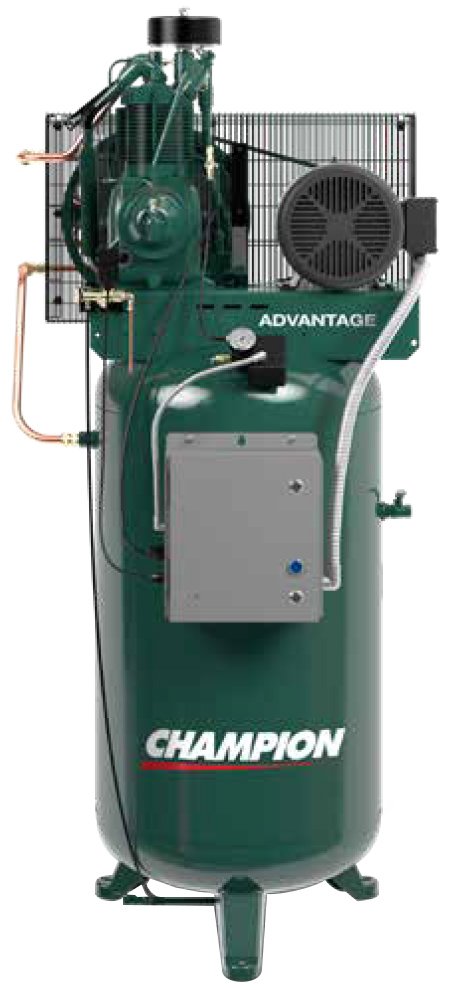

Champion ADVANTAGE Series Two Stage Piston Air Compressor
Advantage models 5 to 25 hp, include the air cooled after cooler, low level oil switch and electronic tank drain
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion Advantage Series two stage piston air compressor comes fully packaged with pre-installed accessories. These compressors are a part of Champion’s quick-ship program so the compressor arrives quickly, ready to install, and operate.
The Advantage Series features a heavy duty two-stage, splash-lubricated air compressor pump with multi-finned cylinders and head for cooling. They also include intercoolers for cooling between stages and a centrifugal unloader for loadless starting. The built-in low-oil stop control shuts down the unit when oil levels are below safe levels which prevents the compressor from restarting until oil level has been brought back up. Most models feature a factory mounted, air-cooled aftercooler that removes up to 65% of the moisture from discharged compressed air.
The ASME code air receiver features a pressure relief valve, service valve, drain valve, and pressure gauge. Available in vertical or hirizonal configurations with 80, 120 and 240 gallon options (depending on model selection).
Overview and Features
Features
- Capacities from 17 to 90.7 CFM (depending on model)
- 1,800 RPM motor
- Low oil stop control
- ASME coded receiver (horizontal or vertical mounted)
- Electronic auto tank drain
- Loadless starting
- Enclosed belt guard
- Nema 1 Control Panel
- Dual control (15 and 25 HP models only)
- Start/stop pressure switch control
- 3-year pump warranty and 1-year package warranty
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Simplex, Duplex |
|---|---|
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 25 HP, 10 HP (two 5 HP pumps), 15 HP (two 7.5 HP pumps), 20 HP (two 10 HP pumps) |
| Capacity | 17 CFM at 175 PSI, 22.3 CFM at 175 PSI, 33.8 CFM at 175 PSI, 54.1 CFM at 175 PSI, 90.7 CFM at 175 PSI, 34 CFM at 175 PSI, 51.2 CFM at 175 PSI, 67.6 CFM at 175 PSI |
| Air Cooled Aftercooler | Not included, Included |
| Dual Control | Not included, Included |
| Tank Size and Orientation | 80 gallon, vertical, 120 gallon, horizontal, 120 gallon, vertical, 240 gallon, horizontal |
| Voltage | 230/1/60, 208/3/60, 230/3/60, 460/3/60, 208/1/60 |
