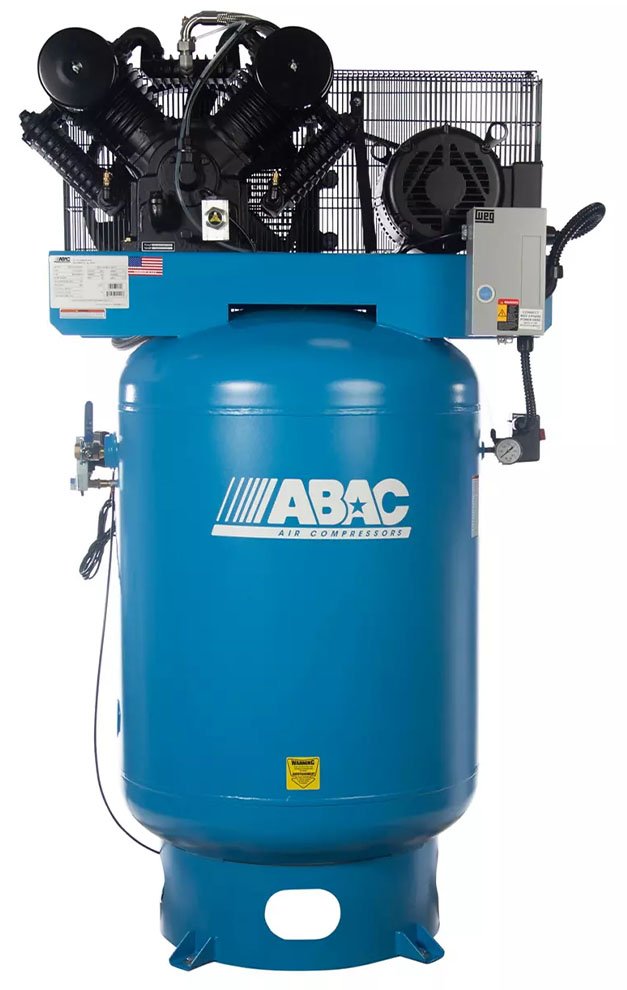

ABAC Ironman Two-Stage Piston Air Compressor
5 to 10 HP simplex compressor with up to 32 CFM capacity at 175 PSI, designed for professional heavy‑duty applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The ABAC Ironman Two-Stage Piston Air Compressor features full cast iron pump construction, making it suitable for professional heavy‑duty applications from wood/metal workshops to auto body/repair shops. The 4-cylinder V-shape pump boosts air output with its efficient design, ensuring reliable and strong performance delivering up to 32 CFM at 175 PSI.
Overview and Features
Features
- 5 to 10 HP
- 16 to 32 CFM (depending on HP selected)
- 175 PSI max pressure
- 80 or 120 gallon ASME air tank mount
- 80 gallon vertical mount 5 and 7.5 HP only
- 120 gallon verticl or horizontal mount 10 HP only
- Fully Cast Iron Pump Design
- Fully Enclosed Belt Guard
- Optional premium package:
- Electronic Automatic Tank Drain
- Low Oil Level Switch
- Belt Guard Mounted Aftercooler
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP |
|---|---|
| Capacity | 16 CFM at 175 PSI, 21 CFM at 175 PSI, 24 CFM at 175 PSI, 32 CFM at 175 PSI |
| Configuration | 80 gallon vertical tank mount, 120 gallon horizontal tank mount, 120 gallon vertical tank mount |
| Package | Standard package, Premium package (Electronic Automatic Tank Drain, Low Oil Level Switch, Belt Guard Mounted Aftercooler) |
| Voltage | 230/1/60, 230/3/60, 460/3/60, 575/3/60 |
