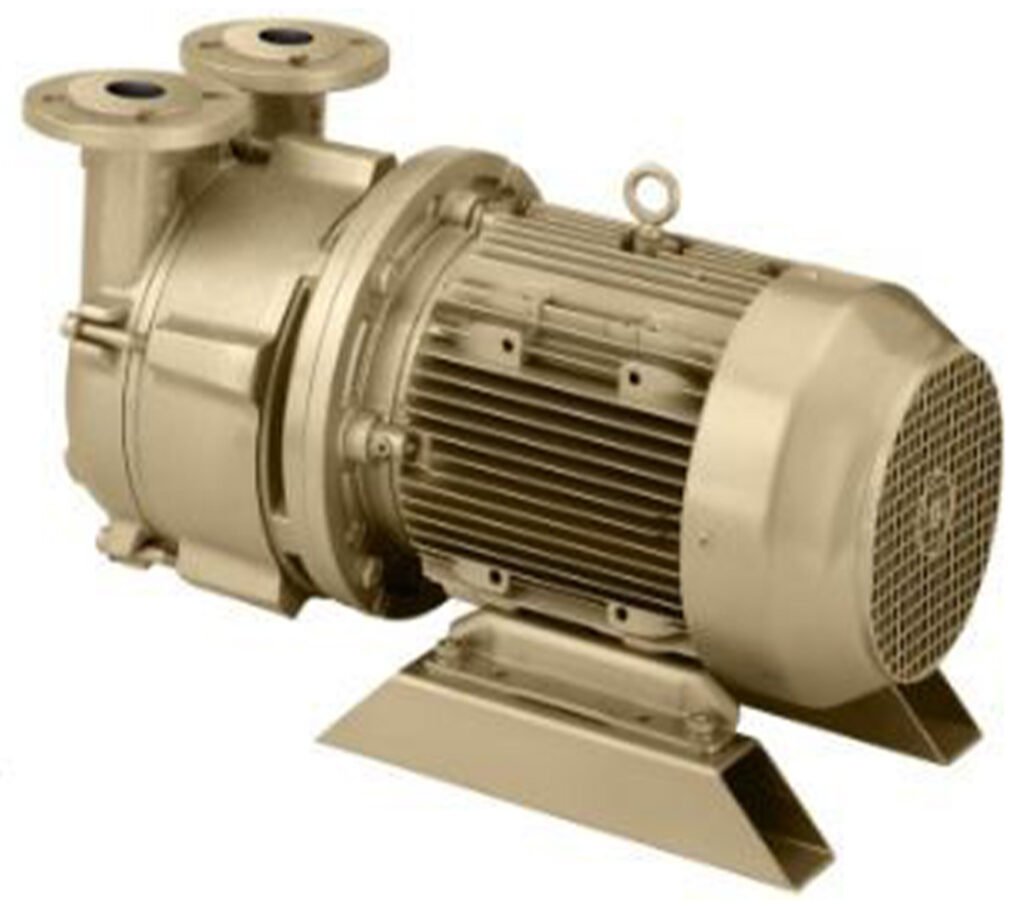

Dekker Titan Series Single-Stage Liquid Ring Vacuum Pump
Motor-mounted pump capable of vacuum levels up to 29" Hg
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker Titan Series Single-Stage Liquid Ring Vacuum Pump can achieve vacuum levels of up to 29″ Hg. It has a variable discharge port design that automatically adjusts to the internal compression ratio of the pump, ensuring maximum efficiency across the vacuum range. The pump’s advanced fluid dynamics create high volumetric efficiency, requiring 50% less seal-liquid.
Overview and Features
Features
- 0.75 to 10 HP options
- 6 to 150 ACFM
- 1 to 1.5 GPM (depending on model)
- 316 Stainless Steel impeller standard on all models
- Cast iron, Stainless Steel, or Bronze housings available
- Manufactured to ISO 9001 standards
- 230/460 motor voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 0.75 HP, 1.5 HP, 3 HP, 5.5 HP, 7.5 HP, 10 HP |
|---|---|
| Capacity | 6 ACFM, 20 ACFM, 35 ACFM, 60 ACFM, 75 ACFM, 100 ACFM, 150 ACFM |
| GPM | 0.75 GPM, 1 GPM, 1.5 GPM, 3.5 GPM, 4 GPM, 4.5 GPM |
| Material (Housing/Portplate/Impeller) | Bronze / 316 stainless steel / Bronze, Cast iron / Cast iron / 316 stainless steel, 316 stainless steel / 316 stainless steel / 316 stainless steel |
| Connection Size / Type | 0.375" FNPT, 1" FNPT, 1.5" 150# flange, 2.5" 150# flange |
