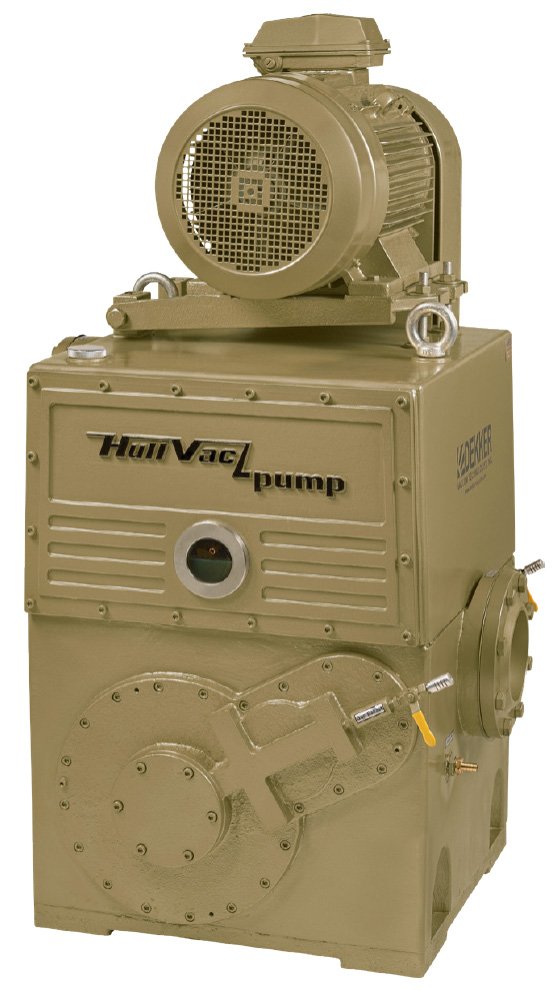

Dekker HullVac Single-Stage Rotary Piston Vacuum Pump
52 to 850 ACFM capacity pump capable of vacuum levels up to 0.045 Torr
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Dekker HullVac Single-Stage Rotary Piston Vacuum Pump is a high-performance and reliable vacuum pump engineered for a wide range of industrial and scientific applications. This vacuum pump utilizes a single-stage rotary piston mechanism to provide consistent and efficient vacuum pressure. Its robust design ensures a long service life and minimal maintenance requirements.
Overview and Features
Features
- 3 to 40 HP models available
- 52 to 850 ACFM capacities
- 0.0450 Torr max vacuum level
- Air or water cooled depending on model selected
- Add-on options available:
- Inlet Elbow Manifold
- Automatic Inlet Vent Valve
- Pneumatically Actuated Inlet Isolation Valve
- Water Miser Valve (water-cooled models only)
- Inlet Filter (5 micron)
- Oil Mist Eliminator
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 3 HP, 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 30 HP, 40 HP |
|---|---|
| Capacity | 52 ACFM, 130 ACFM, 170 ACFM, 300 ACFM, 340 ACFM, 450 ACFM, 635 ACFM, 850 ACFM |
| Voltage | 208-230/460/3/60 |
| Cooling | Air cooled, Water cooled |
| Connection Size | 2" in, 1-1/2" out, 150# flat face flange, 2-1/2" in, 2" out, 150# flat face flange, 3" in, 2" out, 150# flat face flange, 4" in, 3" out, 150# flat face flange, 4" in 150# flat face flange, 3" FNPT out, 6" in, 4" out, 150# flat face flange, 8" in, 5" out, 150# flat face flange |
| Inlet Elbow Manifold | None, Add inlet elbow manifold |
| Valve | None, Add automatic inlet vent valve, Add pneumatically actuated inlet isolation valve, Water miser valve |
| Inlet Filter | None, Add inlet filter |
| Oil Mist Eliminator | None, Add oil mist eliminator |
