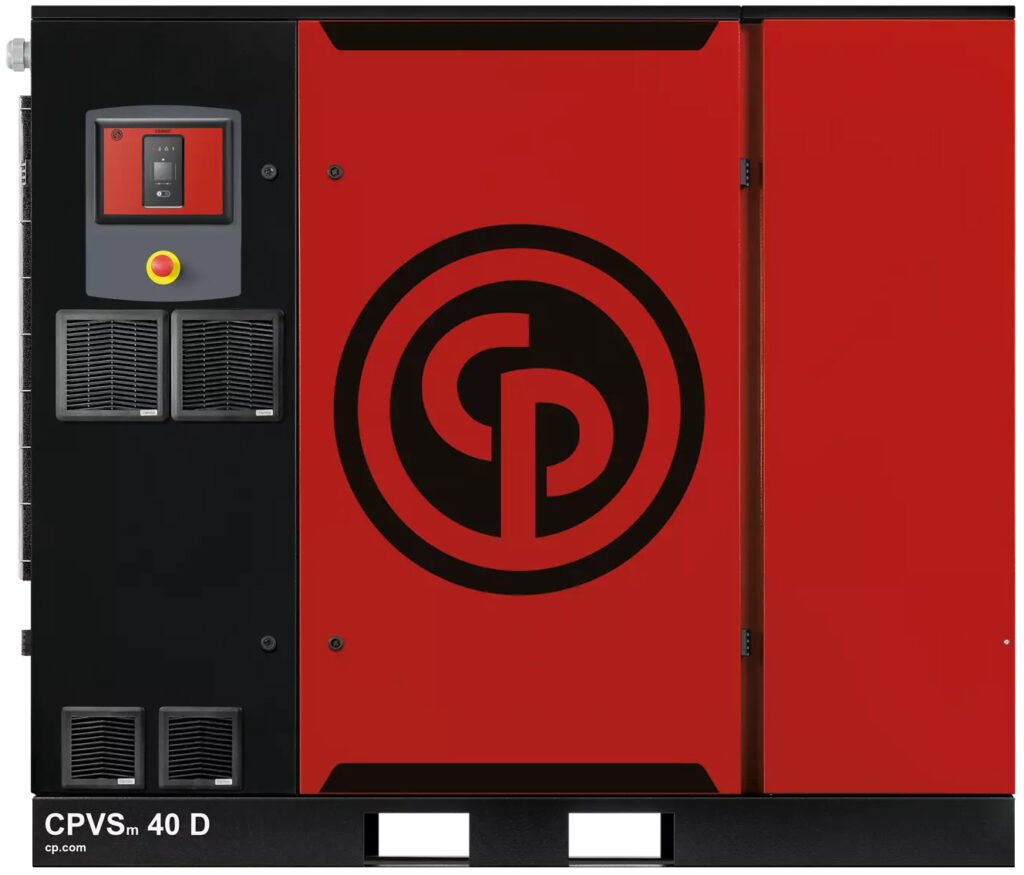

Chicago Pneumatic CPVSM Rotary Screw Air Compressor
40 to 60 hp, Gear driven, variable speed
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic CPVSM Rotary Screw Compressor uses a direct gear transmission that requires no belt tensioning, maintenance or replacement. The ES4000S controller monitors and maintains the compressor, and informs the user of issues before they arise. A front panel gauge allows for quick oil level checks, and most components are easily accessed for single-person maintenance. The variable speed drive reduces energy usage when the compressor is not functioning at 100% for lower energy costs and a longer unit lifetime.
Overview and Features
Features
- Base mount
- 40 to 60 HP
- 145psi pressure rating
- 187 to 263 CFM capacity
- 460/3/60 voltage
- Optional integrated air dryer
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount |
|---|---|
| Dryer | None, Integrated Air Dryer |
| Horsepower | 40 HP, 50 HP, 60 HP |
| Capacity | 187 CFM, 236 CFM, 263 CFM |
| Pressure | 145psi |
| Voltage | 460/3/60 |
