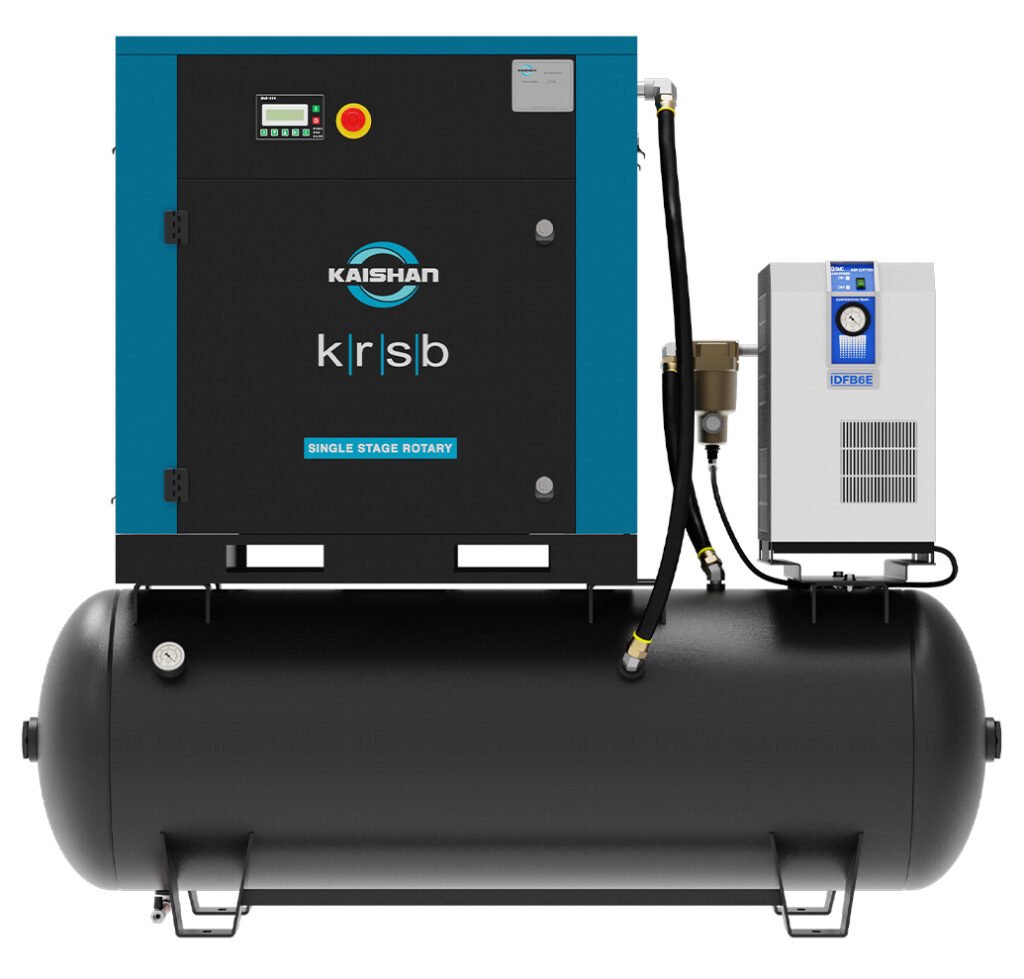

Kaishan KRSB Series Rotary Screw Air Compressor
5 to 50 HP configurations, tank and dryer options available, startup included by a factory trained technician.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Kaishan KRSB series rotary screw air compressor features belt drive construction, providing a highly reliable flow of compressed air and offering increased flexibility in pressure. Belt-driven compressors also operate with minimal loss of power from the motor to the pump, resulting in lower operating costs. Maintenance is required less frequently, and the compressor drive belt and other components can be easily serviced.
The KRSB series of compressors features an advanced belt drive system that eliminates energy loss and increases bearing life. A laminar flow inlet valve increases output while minimizing pressure drop, making performance more reliable while saving energy costs. An SKK series air end with an asymmetric 5 / 6 rotor profile and precision ground rotor machining allows for tighter clearances and improved performance. High-efficiency air intake filters offer excellent dust capture without impeding airflow, creating a more efficient system. The compressors also feature 316 stainless steel control tubing, a premium material with a longer life than nylon or copper, sophisticated controls with built-in alarms, and standard sound-deadening enclosures for quiet operation.
Belt-driven compressors are ideally suited for automotive repair shops and facilities, manufacturing operations, and heavy-duty industrial applications.
Overview and Features
Features
- 5 to 50 HP base mount
- 5 to 30 HP tank mount (80 or 120 gallon receiver tank)
- 16 to 212 CFM at 125 psi capacity
- Load/unload controls
- Integrated after cooler and cooling fan
- IE3 premium efficiency motor
- Automatic belt tensioning
- Digital control panel
- Optional integrated dryer and coalescing filter available
- Oversized dryer (no filter) available for 7.5 to 25 HP tank mounted models
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP |
|---|---|
| Configuration | Base mount, Tank mount (80 gallon), Tank mount (120 gallon) |
| Dryer | None, Integrated air dryer (includes integrated coalescing filter), Oversized air dryer |
| Pressure Options | 115 PSI, 125 PSI, 150 PSI, 175 PSI |
| Capacity | 16 CFM, 24 CFM, 37 CFM, 59 CFM, 80 CFM, 107 CFM, 120 CFM, 176 CFM, 212 CFM, 14 CFM, 21 CFM, 33 CFM, 52 CFM, 70 CFM, 89 CFM, 101 CFM, 166 CFM, 190 CFM, 12 CFM, 26 CFM, 41 CFM, 57 CFM, 61 CFM, 74 CFM, 141 CFM, 177 CFM, 17 CFM, 25 CFM, 40 CFM, 62 CFM, 90 CFM, 114 CFM, 129 CFM, 187 CFM, 223 CFM |
| Voltage | 230/1/60, 230/3/60, 460/3/60, 208/3/60 |
| Timer Drain | None, Add Timer Drain |
