Chicago Pneumatic

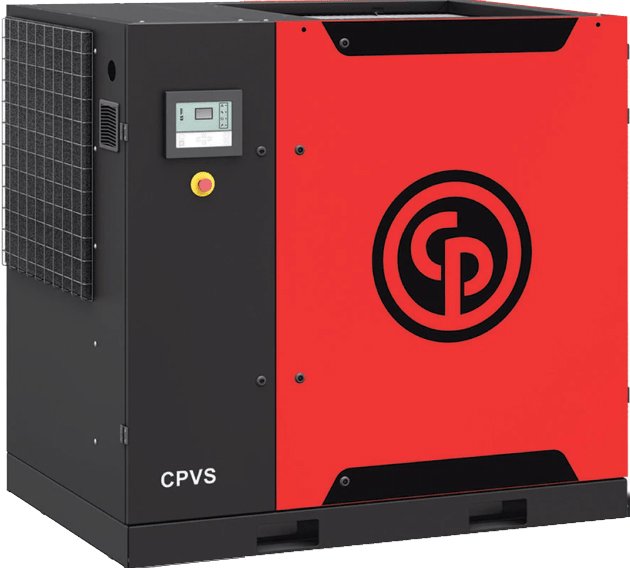

Chicago Pneumatic CPVS Rotary Screw Air Compressor
200 to 340 hp, Gear-driven, oil-injected with frequency inverter regulation
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic CPVS Rotary Screw Air Compressor uses a variable speed drive to reduce energy consumption when usage is low. The unit has separate oil and air coolers and fewer thermal shocks to increase lifetime. A service door simplifies maintenance, and an ES4000 controller monitors and maintains the unit while informing the user of issues before they arise.
Overview and Features
Features
- Base mount
- 100 to 340 HP
- 137 to 1281 CFM capacity
- 460/3/60 voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount |
|---|---|
| Horsepower | 200 HP, 270 HP, 340 HP |
| Capacity | 499 to 910 ACFM, 417 to 1073 ACFM, 434 to 1281 ACFM |
| Voltage | 460/3/60 |
