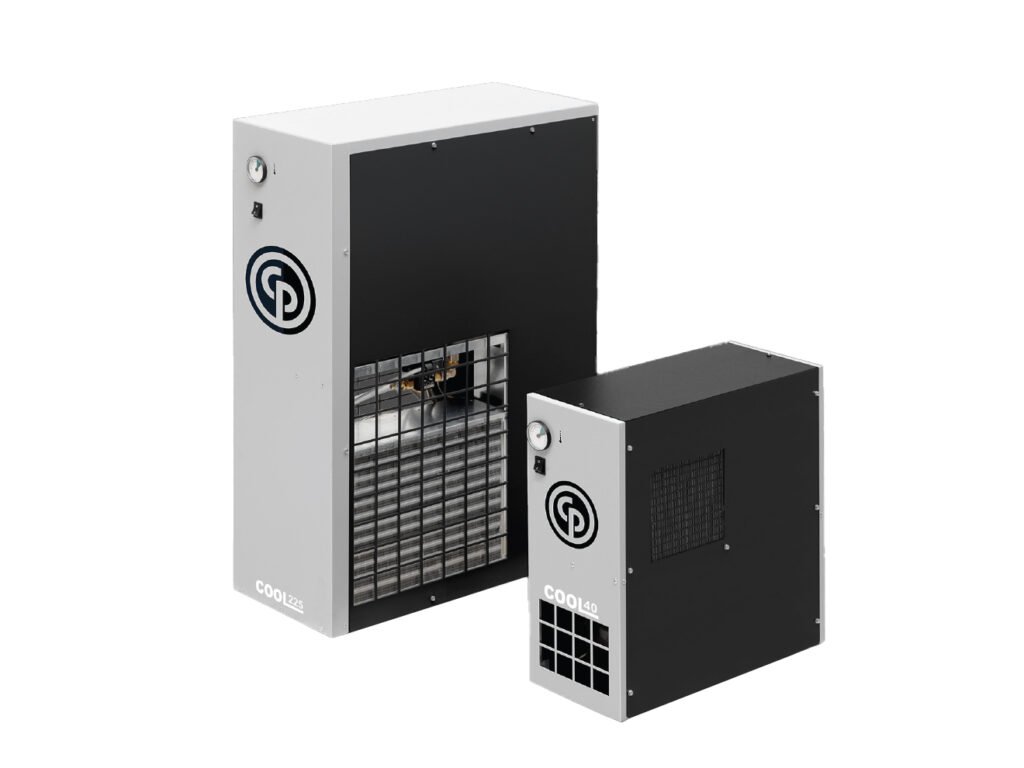

Chicago Pneumatic COOL Compact Non-Cycling Refrigerated Dryer
Fully automatic refrigerated dryer unit with up to 272 SCFM capacity. 115/1/60 or 230/1/60 voltages and 1/2" through 1-1/2" NPT connections
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic COOL Compact Non-Cycling Refrigerated Dryer is a small footprint solution for fully automated condensate removal in compressed air applications including but not limited to: tire inflation, spray painting, inject molding, pneumatic tools and control systems. Low current requirements mean COOL units can share electrical lines. Elimination of water, oil and dirt from air systems reduces finished product defects and increases longevity of tools. 12 to 272 SCFM capacity offerings, with a 45°F dewpoint. Unit is designed with a brazed plate heat exchanger for 12 through 64 SCFM, and aluminum for 76 through 272 SCFM capacities. 1 Year warranty.
Overview and Features
Features
- Capacities:
- 12 to 272 SCFM
- Heat exchanger material(s):
- 12-64 SCFM: Brazed Plate
- 76-272 SCFM: Aluminum
- Voltage(s):
- 12-106 SCFM: 115/1/60
- 127-272 SCFM: 230/1/60
- Refrigerant(s):
- 12-145 SCFM: R513A
- 184-272 SCFM: R410A
- Dimensions:
- 12-76 SCFM: 9″ L x 22″ W x 22″ H
- 106 SCFM: 23″ L x 56″ W x 56″ H
- 127-272 SCFM: 31″ L x 71″ W x 99″ H
- Max pressure(s):
- 145-272 SCFM: 188 PSIG
- 12-127 SCFM: 232 PSIG
- Max inlet: 131°F
- Max ambient: 113°F
- Min ambient: 41°F
- Dewpoint: 45°F
- Eliminates air line purging
- Plug and play installation
- Hot gas bypass protection
- cUL approved
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 12 SCFM, 21 SCFM, 30 SCFM, 42 SCFM, 64 SCFM, 76 SCFM, 106 SCFM, 127 SCFM, 145 SCFM, 184 SCFM, 230 SCFM, 272 SCFM |
|---|---|
| Voltage | 115/1/60, 230/1/60 |
| Connection | 1/2" F NPT, 3/4" F NPT, 1" F NPT, 1-1/2" F NPT |
