Chicago Pneumatic

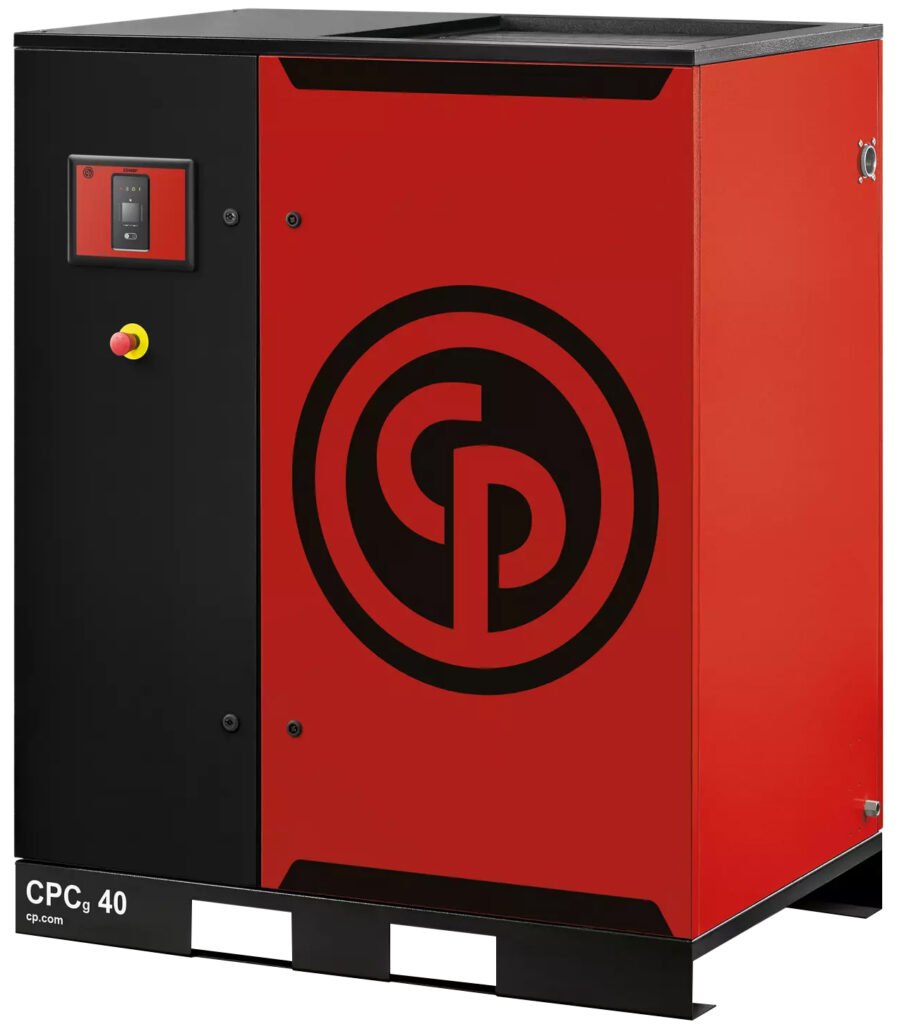

Chicago Pneumatic CPCg Rotary Screw Air Compressor
40 to 60 hp, Gear-driven, fixed speed with iPM direct drive
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic CPCg Rotary Screw Air Compressor operates reliably at ambient temperatures up to 115°F. The unit functions consistently in dusty and humid conditions due to its IP66-enclosed drive train. The unit is ideal for compressor rooms with long duty cycle operation. Sound levels as low as 67 db(A) allow the unit to be placed either in a compressor room or on a production floor. The Intelligent CONnectivity System (ICONS) allows the user to receive data and insights from the machine delivered to a computer, tablet or smartphone. This allows for optimization of energy consumption and CO2 emissions. The ICONS also delivers detailed energy reports to ensure the ISO50001 compliance of the compressor site.
Overview and Features
Features
- Base mount
- 40 to 60 HP
- 125psi pressure rating
- 179.9 to 262.7 CFM capacity
- 230/3/60 and 460/3/60 voltage options
- Optional integrated air dryer
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount |
|---|---|
| Dryer | None, Integrated air dryer |
| Horsepower | 40 HP, 50 HP, 60 HP |
| Capacity | 193.5 CFM, 239.6 CFM, 281.2 CFM, 179.9 CFM, 219.3 CFM, 262.7 CFM, 160 CFM, 199.4 CFM, 238.2 CFM, 148.3 CFM, 188.4 CFM, 216.8 CFM |
| Pressure | 100 PSI, 125 PSI, 150 PSI, 175 PSI |
| Voltage | 230/3/60, 460/3/60 |
