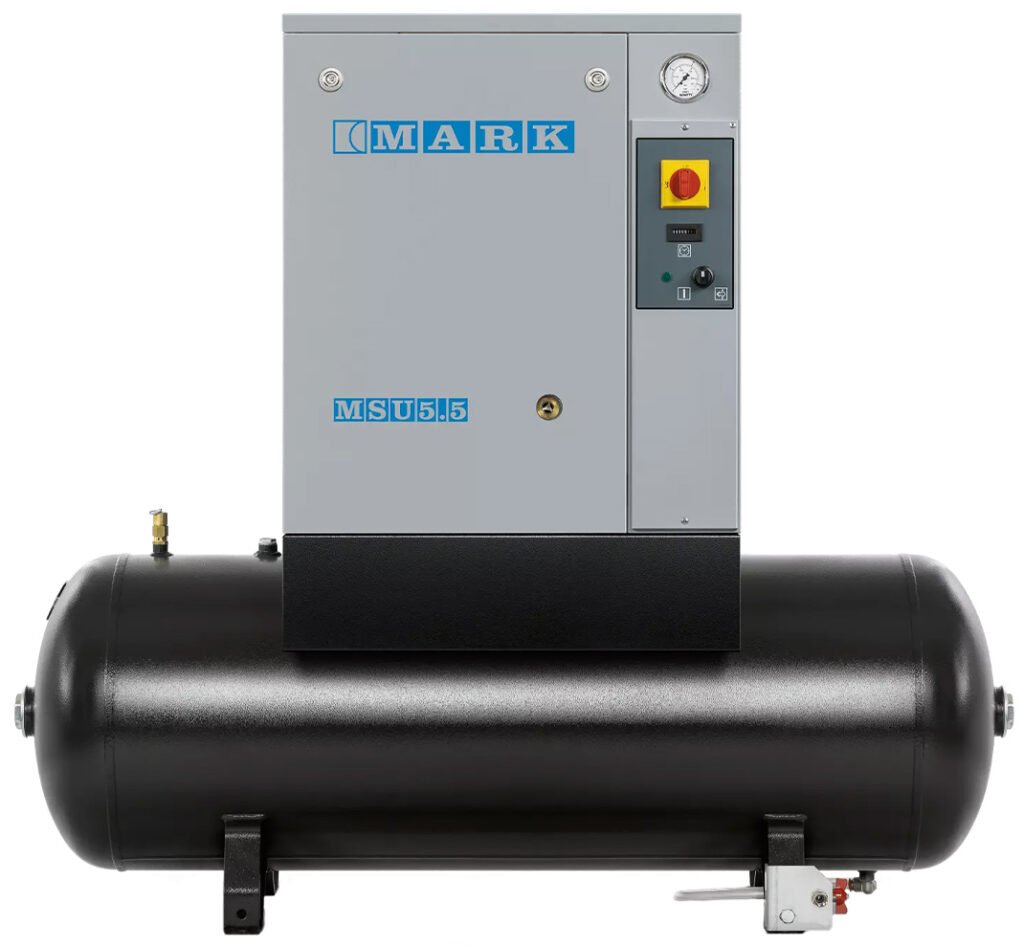

Mark Compressor MSU Series Rotary Screw Air Compressor

Product overview

Built around your operating requirements.

Description

The Mark Compressor MSU Series rotary screw air compressor features asymmetric profile rotors mounted on high-quality ball and roller bearings for increased efficiency. The MSU Series meets the compressed air demands of tire shops, paint shops, car dealers, maintenance shops, and small industries. The MSU can be installed almost anywhere in the workshop due to its quiet design. Available in either base mount or tank mount, with or without a refrigerated air dryer, the MSU Series is a complete solution.

Overview and Features

Features

IE3 efficiency motor
High-efficiency airend
Optional refrigerated air dryer
60 or 120 gallon receiver tanks available
Manual tank drain valve
ES 4000 basic controller standard on >15 HP models
Tri-Voltage and 1-pashe voltages available

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Available specifications

Configuration	Tank mount, Base mount
Horsepower	3 HP, 5 HP, 7.5 HP, 10 HP, 11 HP, 15 HP, 20 HP, 21 HP, 25 HP, 30 HP, 40 HP
Capacity	9.8 CFM at 145 PSI, 18.1 CFM at 145 PSI, 26.1 CFM at 145 PSI, 34.1 CFM at 145 PSI, 33.9 CFM at 145 PSI, 45.1 CFM at 145 PSI, 60.4 CFM at 145 PSI, 74.2 CFM at 145 PSI, 89.4 CFM at 145 PSI, 99.4 CFM at 145 PSI, 13.1 CFM at 116 PSI, 20.1 CFM at 116 PSI, 29.3 CFM at 116 PSI, 36.1 CFM at 116 PSI, 37.5 CFM at 116 PSI, 51.9 CFM at 116 PSI, 61.2 CFM at 116 PSI, 78.6 CFM at 116 PSI, 93.7 CFM at 116 PSI, 112.7 CFM at 116 PSI, 154.9 CFM at 125 PSI, 132.9 CFM at 150 PSI
Tank Size	None, 60 gallon, 120 gallon
Dryer	None, Add refrigerated air dryer
Voltage	230/1/60, 208-230/460/3/60, 230/460/3/60

Configuration

Tank mount, Base mount

Horsepower

3 HP, 5 HP, 7.5 HP, 10 HP, 11 HP, 15 HP, 20 HP, 21 HP, 25 HP, 30 HP, 40 HP

Capacity

9.8 CFM at 145 PSI, 18.1 CFM at 145 PSI, 26.1 CFM at 145 PSI, 34.1 CFM at 145 PSI, 33.9 CFM at 145 PSI, 45.1 CFM at 145 PSI, 60.4 CFM at 145 PSI, 74.2 CFM at 145 PSI, 89.4 CFM at 145 PSI, 99.4 CFM at 145 PSI, 13.1 CFM at 116 PSI, 20.1 CFM at 116 PSI, 29.3 CFM at 116 PSI, 36.1 CFM at 116 PSI, 37.5 CFM at 116 PSI, 51.9 CFM at 116 PSI, 61.2 CFM at 116 PSI, 78.6 CFM at 116 PSI, 93.7 CFM at 116 PSI, 112.7 CFM at 116 PSI, 154.9 CFM at 125 PSI, 132.9 CFM at 150 PSI

Tank Size

None, 60 gallon, 120 gallon

Dryer

None, Add refrigerated air dryer

Voltage

230/1/60, 208-230/460/3/60, 230/460/3/60
