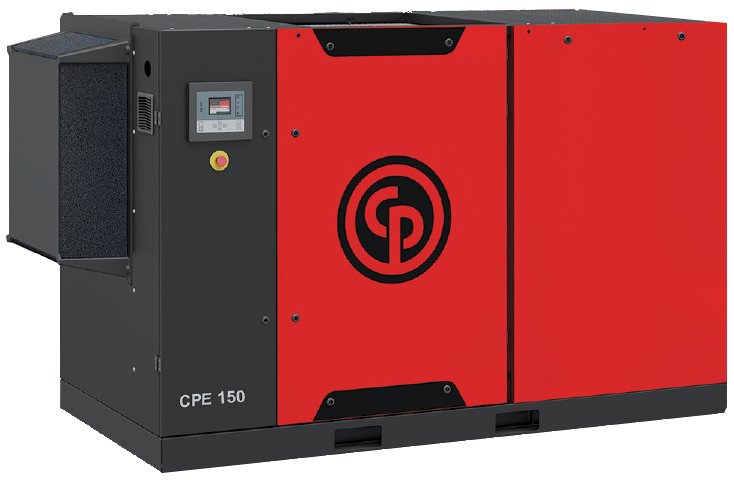

Chicago Pneumatic CPE Rotary Screw Air Compressor
150 hp, Gear driven, fixed speed with pre-filtered air intake and reduced voltage starting
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic CPE Rotary Screw Air Compressor is housed in a low sound enclosure, with a wye-delta starter and TEFC motor as standard. An ES4000 Advanced microprocessor control monitors and maintains the compressor, informing the user of issues before they arise. The unit includes separate oil and aftercoolers, temperature protection on the drive side motor bearings, an air/oil sump tank with temperature protection, and a long life inlet valve. The unit ships with 8,000 hour lubricant as standard.
Overview and Features
Features
- Base mount
- 150 HP
- 125psi pressure rating
- 701 CFM capacity
- 460/3/60 voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount |
|---|---|
| Horsepower | 150 HP |
| Capacity | 701 CFM |
| Pressure | 125 PSI, 175 PSI |
| Voltage | 460/3/60 |
