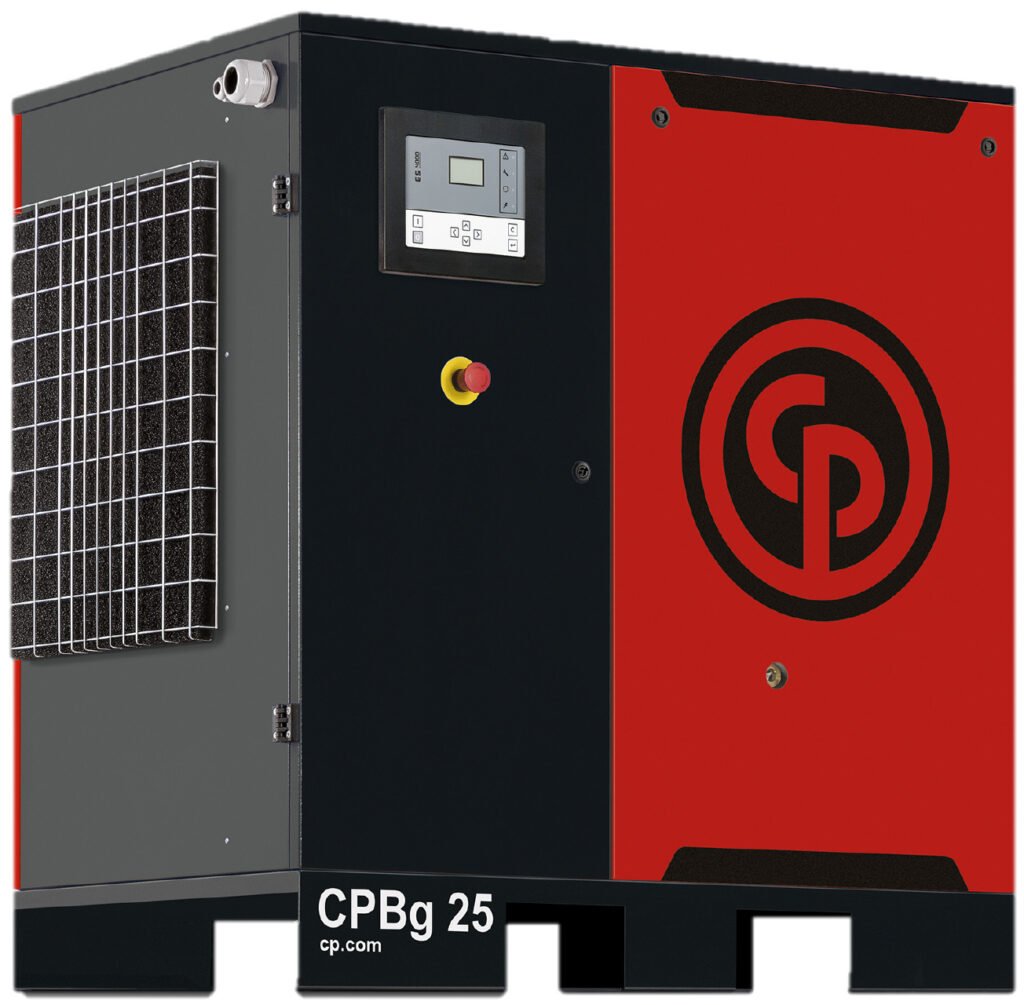

Chicago Pneumatic CPBg Rotary Screw Air Compressor
20 to 35 HP, ES4000 microprocessor control, temperature protected on drive side motor bearings
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Chicago Pneumatic CPBg Rotary Screw Air Compressor is housed in a low sound enclosure and includes a pre-filtration panel with foam. It is designed for rapid, single-panel maintenance, and includes a wye-delta, reduced voltage start, independent oil and air aftercoolers, and an improved long life inlet valve. All units are ASME and cUL approved.
Most 35 HP models are shipped with mineral oil, while lower HP models ship with Rotair 2000 hour oil. An integrated dryer option is available for improved quality air.
Overview and Features
Features
- Tank mount and base mount options
- 20, 25, 30, and 35 HP options
- Pressure rating:
- 125 PSI standard
- Additional pressure options available for most models
- 88.4 to 168 CFM capacity
- Voltage:
- 208-230/460/3/60 available for all horsepowers
- Additional 230/460/3/60 option available for 35 HP models
- Integrated air dryer option available
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 20 HP, 25 HP, 30 HP, 35 HP |
|---|---|
| Configuration | Base mount, Tank mount |
| Dryer | None, Integrated Air Dryer |
| Capacity | 88.4 CFM, 83.6 CFM, 113.1 CFM, 100.6 CFM, 130.3 CFM, 124.8 CFM, 168 CFM, 154 CFM, 138 CFM, 128 CFM |
| Pressure | 100 PSI, 125 PSI, 150 PSI, 175 PSI |
| Voltage | 208-230/460/3/60, 230/460/3/60 |
