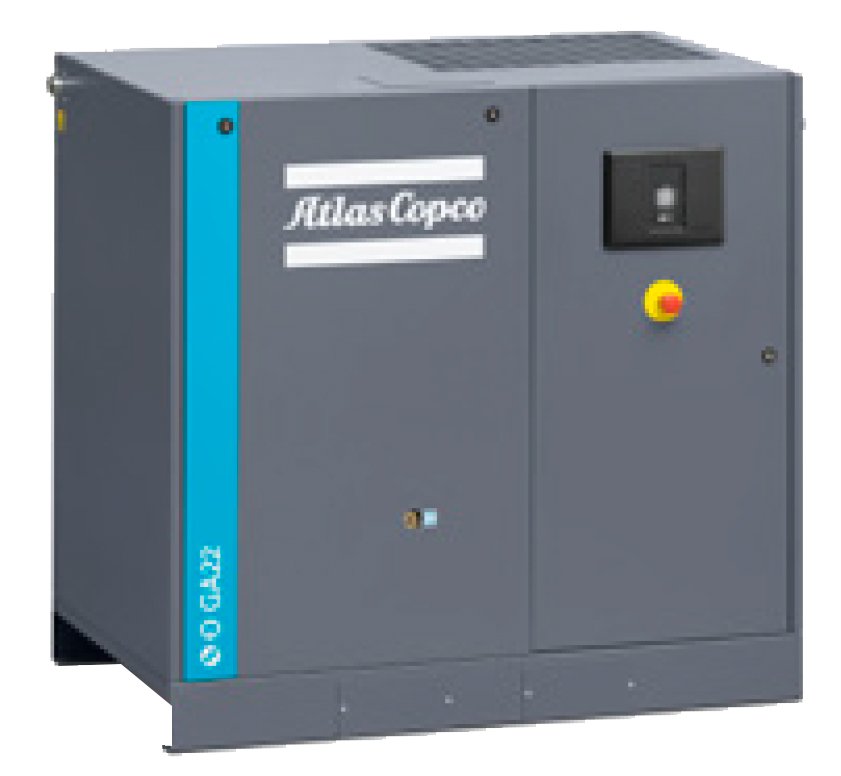

Atlas Copco GA15-30 Rotary Screw Air Compressor
20 to 40 hp, GA oil-injected rotary screw compressors, base, tank mounted and full feature options.
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Atlas Copco GA15-30 Rotary Screw Air Compressor combines its compression element with an IE3 efficiency motor for 5 to 6% higher efficiency than belt-driven systems. The drive train is gear-driven. The Elektronikon Swipe controller includes service and warning indications, error detection, and compressor shut-down. The standard SMARTLINK provides remote monitoring to maximize performance. Oil carryover is low due to the vertical design of the oil vessel, and the minimized vessel size also reduces air losses during the load/unload cycle.
The optional integrated dryer avoids condensation and corrosion in the network. A water separator is included as standard. The unit can be transported easily via a forklift.
Overview and Features
Features
- Base mount and tank mount (132gal) options available
- 20 to 40 HP
- 100, 125, 150, or 175 PSI pressure rating
- 71 to 194.9 CFM capacity
- Integrated dryer option available
- Elektronikon Swipe controller
Tech Specs
,
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount, Tank mount (132gal) |
|---|---|
| Horsepower | 20 HP, 25 HP, 30 HP, 35 HP, 40 HP |
| Capacity Options | 100.9 CFM, 91.7 CFM, 84.8 CFM, 71 CFM, 127.8 CFM, 122.3 CFM, 104.9 CFM, 83.5 CFM, 142.4 CFM, 133.9 CFM, 127.6 CFM, 105.7 CFM, 146.4 CFM, 140.9 CFM, 135 CFM, 119.9 CFM, 194.9 CFM, 185.8 CFM, 174 CFM, 161.2 CFM |
| Pressure | 100 PSI, 125 PSI, 150 PSI, 175 PSI |
| Dryer | Not included, Included |
| Voltage | 208-230/460/3/60, 230/460/3/60 |
