Atlas Copco

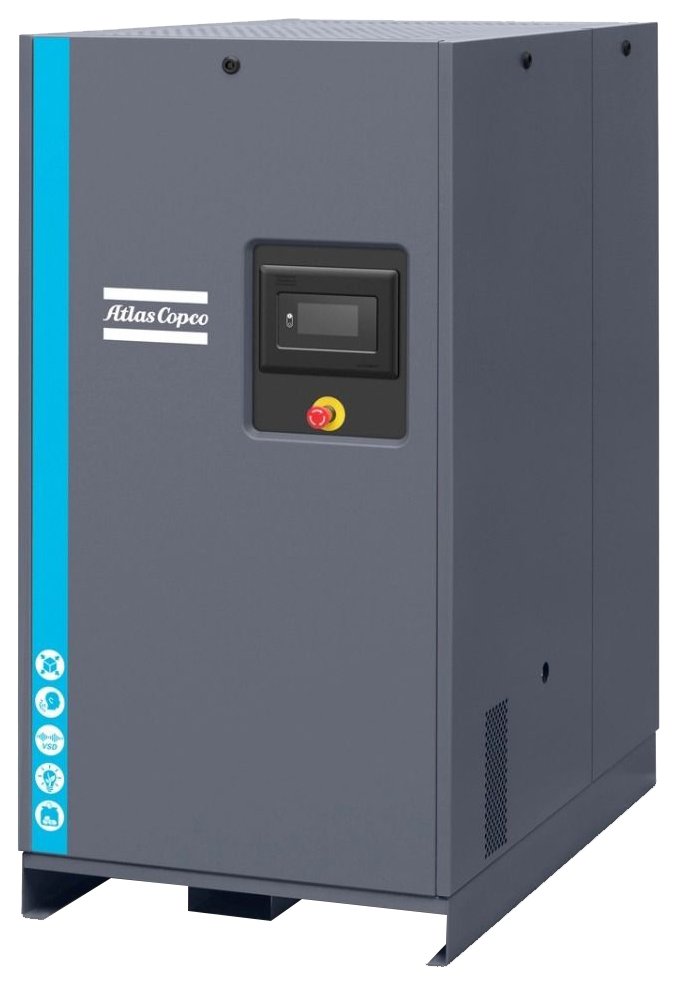

Atlas Copco GA37-45 Rotary Screw Air Compressor
Range 50-60 HP rotary screw air compressors with the optional Mk5 controller expansion for multiple (2, 4, or 6) compressor control
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Atlas Copco GA37-45 Rotary Screw Air Compressor includes a direct drive designed vertically, using fewer parts. The drive is oil-cooled and pressure-tight, using no gears, belts or shaft seal. The inlet filter includes a pressure drop indicator and has a maintenance cycle of 4,000 hours. The cooling fan is ERP2020 compliant, with optimized application-specific design. The classic cooler design includes an integrated water separator and separate oil and air cooler.
The Neos inverter is designed in-house to control iPM motors, and is IP5x protected. The aluminum enclosure safeguards the element from harsh conditions. The Elektronikon® Touch controller includes warning indications, compressor shut-down and maintenance scheduling. The standard SMARTLINK allows for remote monitoring and control. The optional expansion allows a single controller to control multiple compressors.
Overview and Features
Features
- Base mounted
- 50 or 60 HP
- 125 or 150psi pressure rating
- 208.7 to 274.6 CFM capacity
- Integrated dryer option available
- Elektronikon® Touch controller
- 60 HP models include Roto Synthetic Xtend oil
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount |
|---|---|
| Integrated Air Dryer Option | Included, Not included |
| Horsepower | 50 HP, 60 HP |
| Mk5 Touch Controller Expansion | Included, Not included |
| Capacity | 208.7 CFM, 229 CFM, 227 CFM, 274.6 CFM |
| Pressure | 125 PSI, 150 PSI |
| Voltage | 460/3/60 |
