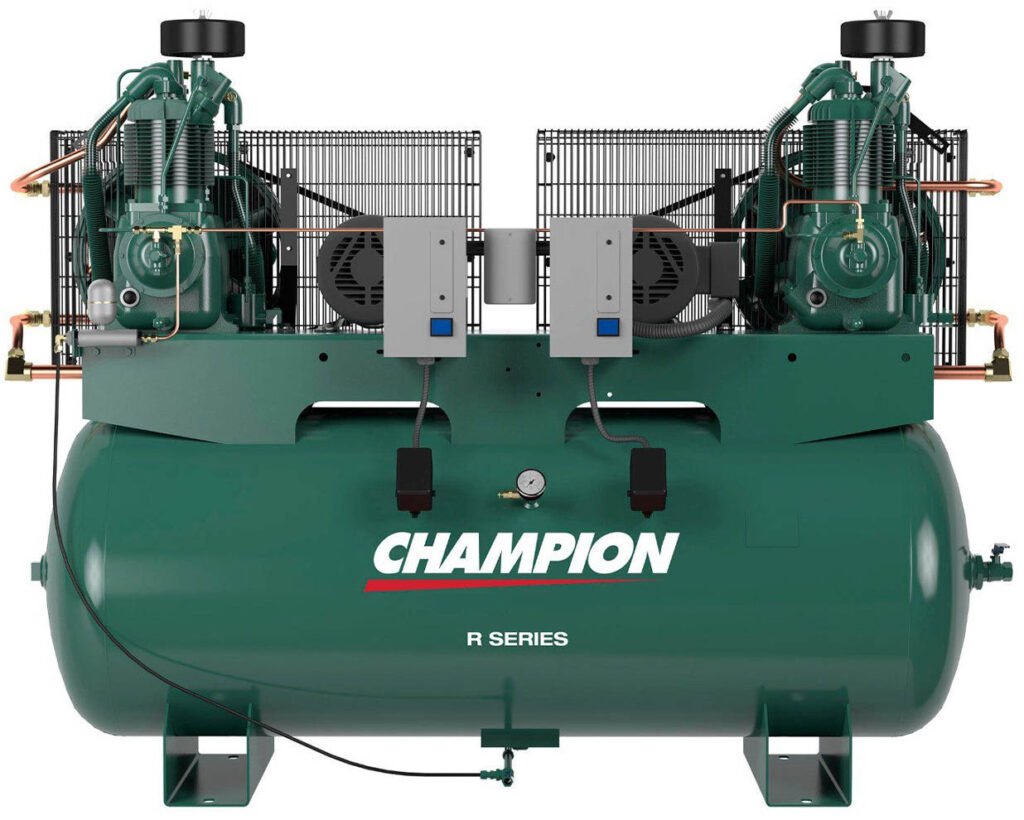

Champion R-Series Duplex Two Stage Piston Air Compressor
2 to 30 hp, splash lubricated air compressors, horizontal tank, and high efficiency motor and rated up to 175psi
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion R-Series duplex two stage piston air compressor is tank mounted with tank sizes ranging from 80 gallons up to 240 gallons. The multi-finned cylinders enable cooler operating temperatures while the integral cylinder/head design allows for a low maintenance and trouble-free design. The two high efficient lap joint compression rings with bi-directional seal provide efficient air delivery while the aluminum alloy first-stage piston and cast iron second-stage piston ensure proper balance of the system. The centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
Overview and Features
Features
- 4 to 60 HP models available
- 8.2 to 203.6 CFM (depending on model)
- ASME coded receiver
- California code compliant receivers
- Start/stop pressure switch control
- NEMA 1 control panel
- ODP NEMA 1,760rpm electric motor
- 10 micron intake filter
- Enclosed belt guard
- Available voltages:
- 1-phase: 115/208-230
- 3-phase: 208/230/460
- Additional options:
- Low oil level monitor
- Vibration isolators
- Dual control
- Air cooled aftercooler
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 2 HP Duplex (4 hp total), 3 HP Duplex ( 6 hp total), 5 HP Duplex (10 hp total), 7.5 HP Duplex (15 hp total), 10 HP Duplex (20 hp total), 15 HP Duplex (30 hp total), 20 HP Duplex (40 hp total), 25 HP Duplex (50 hp total), 30 HP Duplex (60 hp total) |
|---|---|
| Capacity | 8.2 CFM at 175psi, 16 CFM at 175psi, 34 CFM at 175psi, 44.6 CFM at 175psi, 51.2 CFM at 175psi, 67.6 CFM at 175psi, 97.4 CFM at 175psi, 108.2 CFM at 175psi, 155.6 CFM at 175psi, 181.4 CFM at 175psi, 203.6 CFM at 175psi |
| Tank Size | 80 gallon, 120 gallon, 240 gallon |
| Voltage | 115/1/60, 208/1/60, 230/1/60, 208/3/60, 230/3/60, 460/3/60, 575/3/60 |
| Additional Options | Add low oil level monitor, Add dual control, Add air cooled aftercooler, Electronic Tank Drain |
