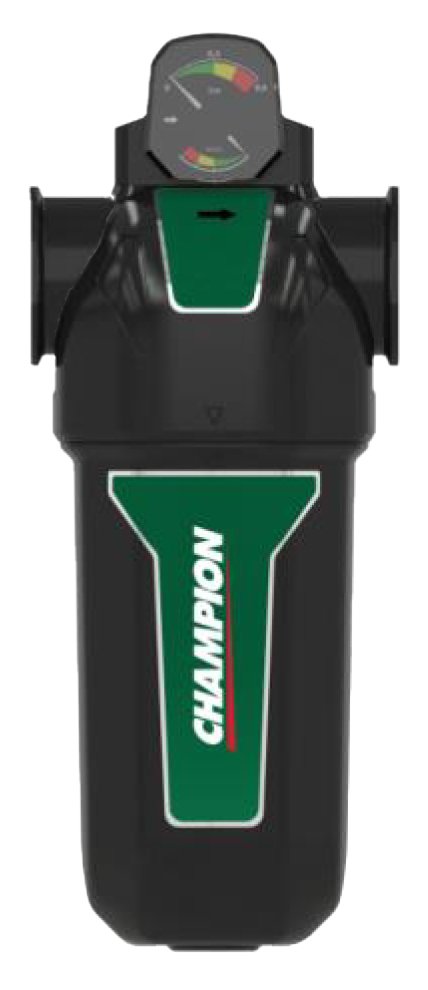

Champion XC Series Compressed Air Filter
18 to 3600 CFM, 4 grades of filtration available, die-cast aluminum body
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion XC Series Compressed Air Filter features a smooth bore flow insert that directs air into the filter element and minimizes turbulence and pressure loss in the filter. The included dual indicator displays both differential pressure drop and operating efficiency. Available in 4 different filter grades and capacities from 18 to 3600 CFM.
Overview and Features
Features
- 18 to 3600 CFM
- 250 PSIG max operating pressure
- Die-cast aluminum body
- Filtration grades available:
- Grade GP: General Purpose: Class 2 Solids and Remaining Oil – particle down to 1 micron, remaining oil aerosol content of 0.1 ppm
- Grade HE: High Efficiency Oil Removal: Class 1 Solids and Remaining Oil – particle down to 0.01 micron, remaining oil aerosol content of 0.01 ppm
- Grade AC: Activated Carbon: Class 1 Remaining Oil – Oil vapor and hydrocarbon odor removal, remaining oil content of <0.003 ppm
- Grade DP: General Purpose Dust Filtration: Class 2 Solids – down to 1 micron
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 18 CFM, 24 CFM, 44 CFM, 65 CFM, 88 CFM, 112 CFM, 135 CFM, 235 CFM, 288 CFM, 353 CFM, 471 CFM, 589 CFM, 706 CFM, 918 CFM, 1077 CFM, 1354 CFM, 1589 CFM (HIDDEN), 1800 CFM (HIDDEN), 2400 CFM (HIDDEN), 3000 CFM (HIDDEN), 3600 CFM (HIDDEN) |
|---|---|
| Filter Grade | General Purpose: Class 2 Solids and Remaining Oil, High Efficiency Oil Removal: Class 1 Solids and Remaining Oil, Activated Carbon: Class 1 Remaining Oil, General Purpose Dust Filtration: Class 2 Solids |
| Connection Size / Type | 3/8” NPT, 1/2” NPT, 3/4” NPT, 1” NPT, 1-1/2” NPT, 2” NPT, 3” NPT, 4" Flange, 6" Flange |
| Drain Option | Float Drain, Manual Drain, None |
