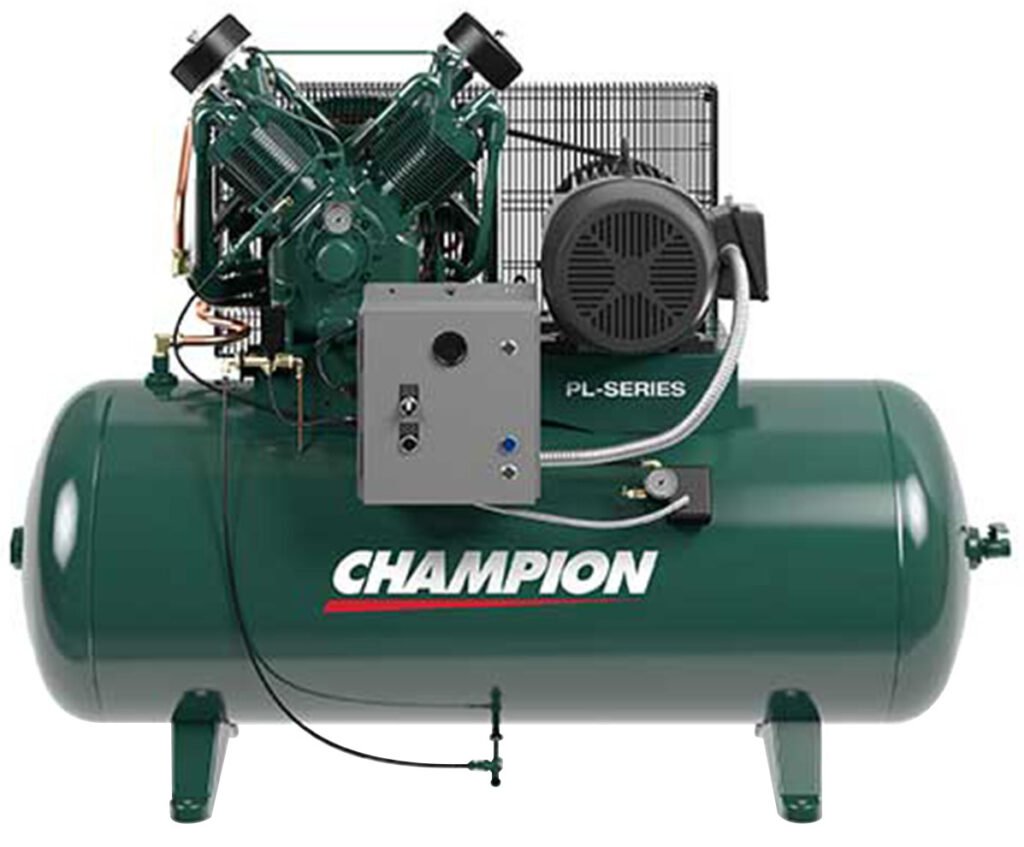

Champion PL-Series Pressure Lubricated Two Stage Piston Air Compressor
Pressure lubricated, 5 to 25 hp, air compressor with loadless starting, ASME inter-stage pressure relief valve, and rated up to 250psi
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion PL-Series two stage piston air compressor is designed to operate in extreme duty applications. The PL-Series is a true industrial use compressor as it can operate up to 250psi and can work in off-level operations. It features domed pistons for better efficiency, disc valves for minimized blow-by, and a positive displacement oil pump that provides lubricant to all crucial parts of the compressor.
The PL-Series is designed for durability and long life. The crankshaft and connecting rod bearings are pressure lubricated, the hydraulic unloader with factory set pilot valve enables loadless starts and low oil pressure protection, the included oil pressure gauge allows for easy pressure monitoring, and the replaceable babbit bearings make repairs easy and affordable.
Overview and Features
Features
- Mounted NEMA 1 control panel
- ODP NEMA 1,760 RPM electric motor
- 5 to 25 HP models available
- Start/stop pressure switch control
- ASME coded receiver
- 60, 80,120, and 240 gallon options (depending on model selected)
- California Code Compliant Receivers
- Enclosed Belt Guard
- 10 micron industrial grade intake filter
- Factory filled with AEON lubricant
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP |
|---|---|
| Capacity | 16.2 CFM at 175 PSI, 22.1 CFM at 175 PSI, 25.8 CFM at 175 PSI, 33.8 CFM at 175 PSI, 46.3 CFM at 175 PSI, 53.7 CFM at 175 PSI, 77.5 CFM at 175 PSI, 90.1 CFM at 175 PSI |
| Tank Size | 60 gallon, 80 gallon, 80 gallon (squat), 120 gallon, 240 gallon |
| Tank Orientation | Vertical, Horizontal |
| Voltage | 208-230/1/60, 208/3/60, 230/3/60, 460/3/60, 575/3/60 |
| Vibration Isolators | None, Add vibration isolators |
| Aftercooler | None, Add air cooled aftercooler |
| Low Oil Stop Control | None, Add Low Oil Stop Control |
