Ingersoll Rand

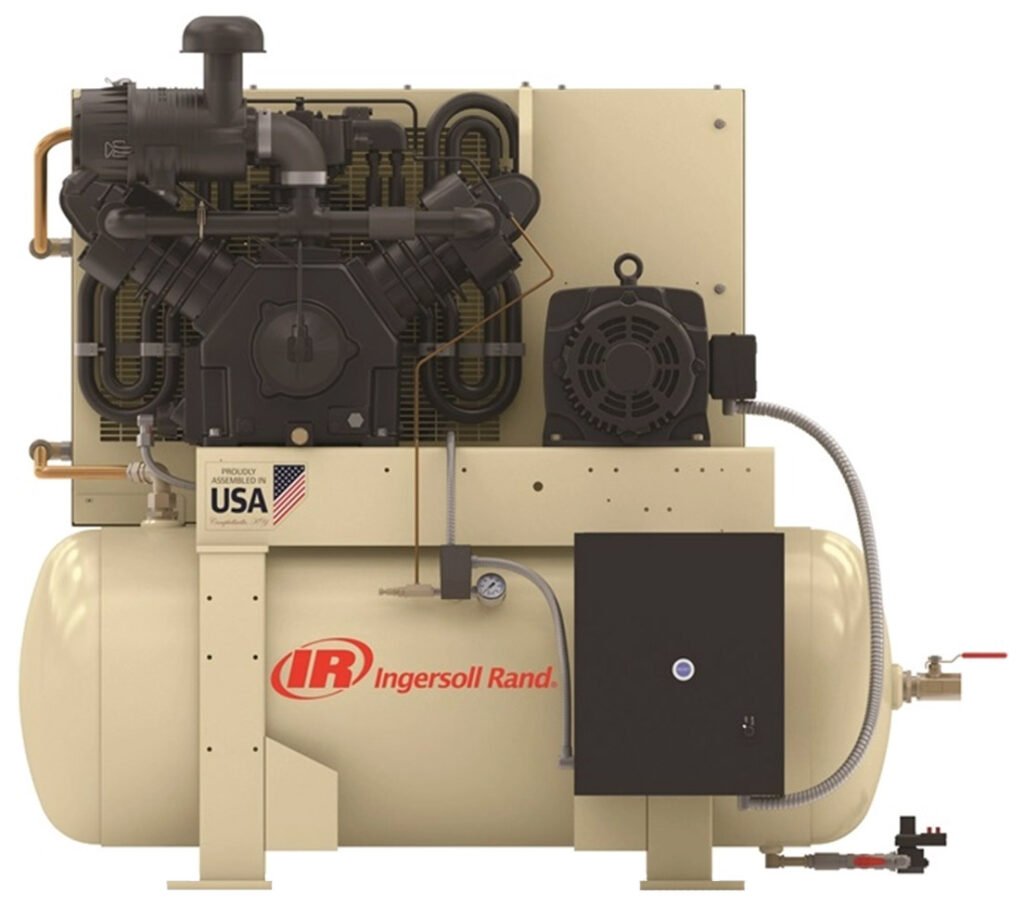

Ingersoll Rand 2000 Series Two-Stage Piston Air Compressor
20 or 25 HP compressor, 100% continuous duty, 175 or 250 PSI, 120 or 240 gallon ASME receiver tank for use in heavy shop or industrial use
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand 2000 Series two-stage piston air compressor features durable cast iron construction that allows for long-lasting extended pump life designed for over 15,000 hours of use. Designed for 100% continuous duty, the 20 or 25 HP two-stage air compressor has a 175 or 250psi maximum operating pressure. The optional 120 or 240 gallon ASME receiver tank provide plenty of air for heavy shop or industrial applications. The All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between change-outs, it performs four times longer than petroleum-based lubricants
Optional Start Up Kit Includes:
- 4 quarts of T30 All Season Select oil
- 1 set of replacement air filters
Overview and Features
Features
- 62, 80, or 82 CFM capacity
- Optional ODP or TEFC motors
- Manual tank drain
- Dual control
- NEMA 1 electrics
- Enclosed belt guard
- Low oil level monitor
- Inlet filter high dust
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mounted, Tank mounted |
|---|---|
| Horsepower | 20 HP, 25 HP |
| Capacity | 62 CFM, 80 CFM, 82 CFM |
| Pressure | 175 PSI, 250 PSI |
| Tank Size | None, 120 gallon, 240 gallon |
| Motor | No motor, ODP motor, TEFC motor |
| Voltage | 200/3/60, 230/3/60, 460/3/60, 575/3/60, Not available with no motor option |
