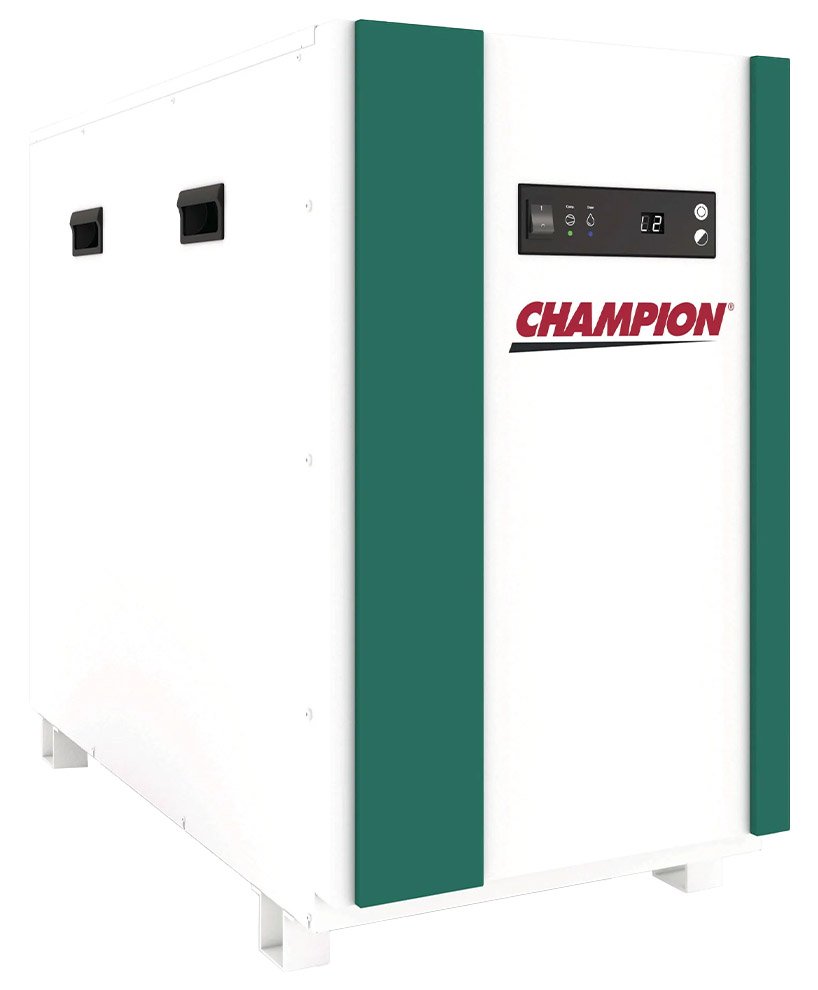

Champion CRPCA Series Refrigerated Air Dryer
75 to 1250 SCFM, low GWP refrigerant, air-cooled and water-cooled options
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion CRPCA Series Refrigerated Air Dryer delivers reliable, energy efficient compressed air treatment for inlet flows from 75 to 1250 SCFM. Designed to provide consistent dew point performance, these dryers use low GWP refrigerants and advanced heat exchanger technology to efficiently remove moisture and protect downstream equipment.
Overview and Features
Features
- 75 to 1250 SCFM
- Low GWP refrigerants
- R513A (75 to 550 SCFM)
- R454C (800 to 1250 SCFM)
- Stainless steel brazed plate heat exchanger
- Air-cooled and water-cooled options (800 to 1250 SCFM)
- No-air-loss, demand drain
- Controller with backlit LCD display
- Optional pre- and after-filter packages available
- UL and CSA certified
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 75 SCFM, 100 SCFM, 150 SCFM, 200 SCFM, 300 SCFM, 450 SCFM, 550 SCFM, 800 SCFM, 1000 SCFM, 1250 SCFM |
|---|---|
| Cooling | Air cooled, Water cooled |
| Voltage | 115/1/60, 460/3/60 |
| Connection Size/Type | 1" NPT, 2" NPT, 3" Flange, 4" Flange |
| Filtration Package | None, Add pre-filer and after-filter |
