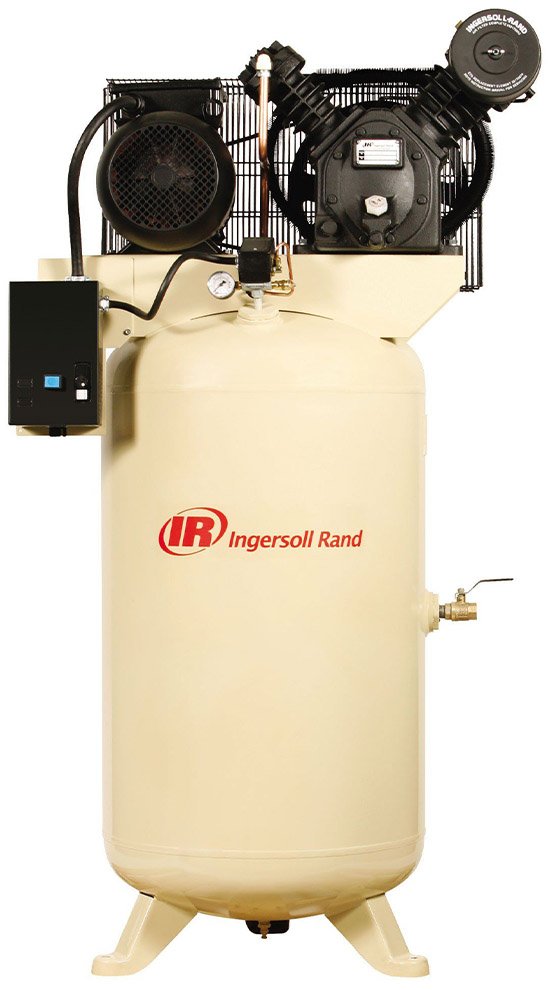

Ingersoll Rand 2475 Two-Stage Piston Air Compressor

Product overview

Built around your operating requirements.

Description

The Ingersoll Rand 2475 two-stage piston air compressor is designed for use in applications including automotive and body shops, fleet maintenance, machine shops, manufacturing lines, wood working shops, dry cleaners, car washes, repair shops and farms. The cast iron construction allows for 100% continuous duty use while the radial fins provide maximum cooling. The individually cast cylinders, overhung crankshaft and one piece connecting rod make maintenance and service easy to accomplish with minimal downtime.

Packages:

Value Package: 100% cast iron pump, ASME-coded receiver tank, ODP motor, magnetic motor starter, automatic start/stop control with pressure switch, and manual drain
Premium Package: All Value Package features along with upgraded electric drain, air-cooled aftercooler, low oil level switch

Optional Start Up Kit Includes:

4 quarts of T30 All Season Select oil
1 set of replacement air filters

Overview and Features

Features

5 or 7.5 HP
- 16.8 or 24 CFM capacity
175 PSI pressure rating
Vertical or Horizontal 80 gallon receiver tank
Value Package:
- 100% cast iron pump
- ASME-coded receiver tank
- ODP motor
- Magnetic motor starter
- Automatic start/stop control with pressure switch
- Manual drain
Premium Package:
- All Value Package features
- Upgraded electric drain
- Air-cooled aftercooler
- Low oil level switch

Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.

Package (see description below for package details)	Value Package, Premium Package (upgraded electric drain, air-cooled aftercooler, low oil level switch)
Horsepower	5 HP, 7.5 HP
Capacity	16.8 CFM, 24 CFM
Pressure	175psi
Tank Size and Orientation	80 gallon, vertical, 80 gallon, horizontal
Voltage	230/1/60, 208/3/60, 230/3/60, 460/3/60
