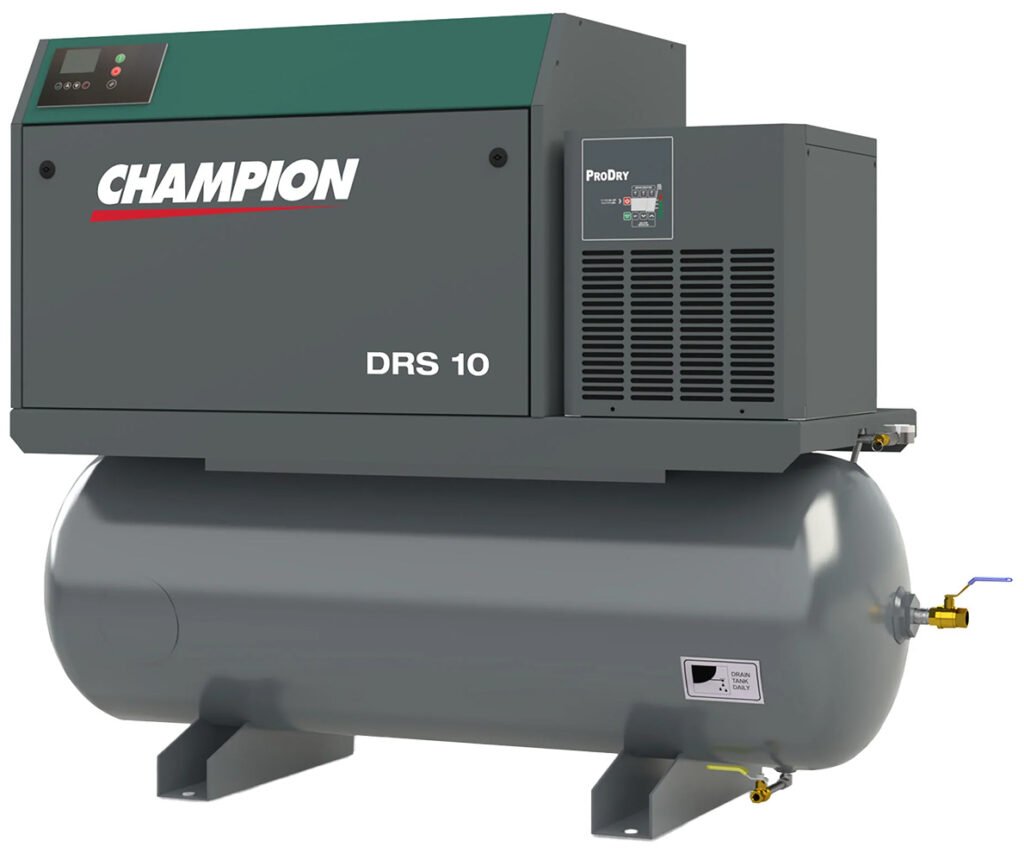

Champion DRS Series Rotary Screw Air Compressor
10 to 200 HP variable speed air compressor with integrated airend design
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Champion DRS Series rotary screw air compressor is a variable speed compressor that features innovative component integration resulting in compact, serviceable, and quiet compressor. The compact design ensures stable system pressure with minimal installation space. DRS Series compressors come equipped with easy-to-use, intelligent control solutions that manage, monitor, and maintain optimal operational parameters ensuring reliable operation.
Overview and Features
Features
- 10 to 200 HP
- 37 to 840 CFM at 145 PSIG
- Configurations:
- Base mount for 15 to 200 HP
- 80 gallon tank mount for 10 HP
- 120 gallon tank mount for 15 to 30 HP
- 240 gallon tank mount for 20 to 30 HP
- XCNC Series non-cycling dryers available on tank mounted models
- Drive Systems:
- 1:1 Direct Drive (DRS10,DRS40 to DRS200)
- Variable Speed, Belt Drive (DRS15 to DRS30)
- Controllers:
- CSC300 Controller (DRS10-DRS30)
- Governor Controller (DRS40-50 & DRS125-175)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Horsepower | 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP, 75 HP, 100 HP, 125 HP, 150 HP, 175 HP |
|---|---|
| Capacity (at 145 PSIG) | 37 CFM, 57 CFM, 64.5 CFM, 86.2 CFM, 102.1 CFM, 158.8 CFM, 205.6 CFM, 304 CFM, 366.6 CFM, 520 CFM, 590 CFM, 676 CFM |
| Configuration | Base Mounted, Tank Mounted - 80 gallon with XCNC Dryer, Tank Mounted - 120 gallon with XCNC Dryer, Tank Mounted - 120 gallon, Tank Mounted - 240 gallon, Tank Mounted - 240 gallon with XCNC Dryer |
| Voltage | 200/3/60, 230/3/60, 460/3/60, 575/3/60 |
| Lubricant Option | RotorLub 4000 (standard), RotorLub 4K, RotorLub 8K, RotorLub 8K HT, RotorLub 4000FG (USDA Food Grade), RotorLub 4000FG-68 (High Temp. Food Grade) |
| Additional Options | Remote Start Kit, Sequencing Kit, Disconnect Kit, Moisture Separator, Line Reactor |
