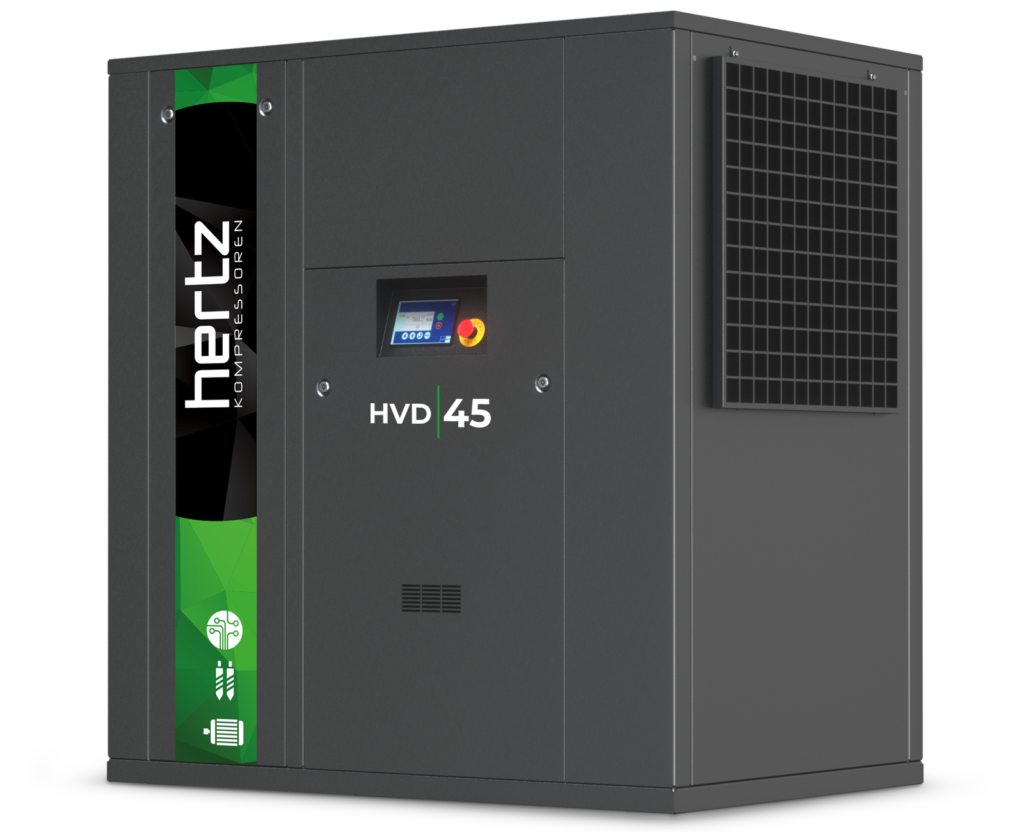

Hertz HVD Series Rotary Screw Air Compressor
Variable speed drive compressor from 7.5 to 100 HP with air cooling and Wye-Delta starting
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Hertz HVD Series rotary screw air compressor is designed to save energy by adjusting the compressor operation speed according to compressed air requirements. Available from 7.5 to 50 HP, the HVD Series features soft starting, a microprocessor controller, Wye-Delta starter, and patented and durable screw block to provide high capacity air. The main motor and drive system is directly coupled one on one with the elastic coupling, has motor bearings with high temperature protection, and variable speed starting with frequency converter. HVD 5 to HVD 15 utilize an easy to detach spin-on type separator, while the HVD 18 to HVD 37 come standard with a three stage, high-efficiency immersion type separator.
Overview and Features
Features
- 7.5 to 100 HP
- 19.4 to 217 CFM capacity
- 125 PSI pressure rating
- 113°F max ambient temperature
- Voltage
- 230/3/60
- 460/3/60
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount |
|---|---|
| Horsepower | 7.5 HP, 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP, 60 HP, 75 HP, 100 HP |
| Capacity (Min/Max) | 19 / 28 CFM, 20 / 42 CFM, 19 / 63 CFM, 28 / 83 CFM, 38 / 104 CFM, 38 / 131 CFM, 36 / 172 CFM, 60 / 217 CFM, 99 / 283 CFM, 97 / 334 CFM, 233 / 438 CFM |
| Pressure | 125 PSI |
| Voltage | 230/3/60, 460/3/60 |
| Startup | Startup Included |
