Saylor-Beall

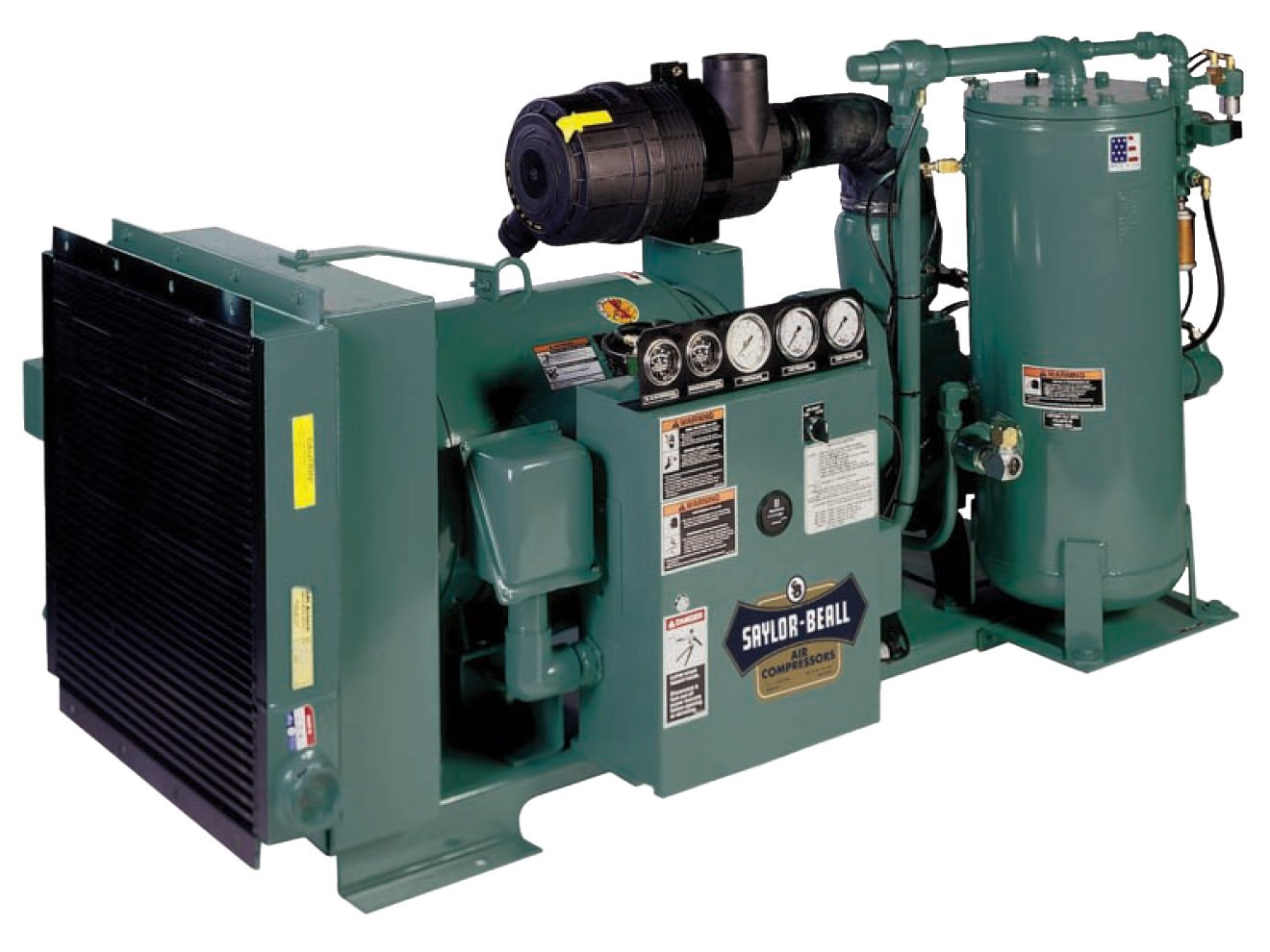

Saylor-Beall Rotary Screw Air Compressor
Oil flooded rotary screw air end designed for 100% duty cycle, Made in the U.S.A
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Saylor-Beall rotary screw air compressor features an oil flooded air end designed for 100% duty cycle. The radiator type air/oil after cooler removes heat from the discharge air and compressor oil, keeping everything cool and increasing reliability. The oil separator tank with replacement element removes oil from compressed air and recycles into the compressor.
Overview and Features
Features
- 10 to 75 HP models available
- 40.7 to 316.3 CFM at 125 PSI
- Direct dive (15 to 75 HP), belt drive (10 HP)
- Oil separator tank with replacement element
- Full-voltage magnetic starter with circuit breaker
- Solenoid style unload control
- Air pressure gauge and hour meter
- Equipped with breakers and 110 volt control transformer
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Base mount |
|---|---|
| Horsepower | 10 HP, 15 HP, 20 HP, 25 HP, 30 HP, 40 HP, 50 HP, 75 HP |
| Capacity | 40.7 CFM at 125 PSI, 50.1 CFM at 125 PSI, 80.2 CFM at 125 PSI, 104.3 CFM at 125 PSI, 127.1 CFM at 125 PSI, 158.1 CFM at 125 PSI, 225.5 CFM at 125 PSI, 316.3 CFM at 125 PSI |
| Voltage | 230/3/60, 460/3/60 |
